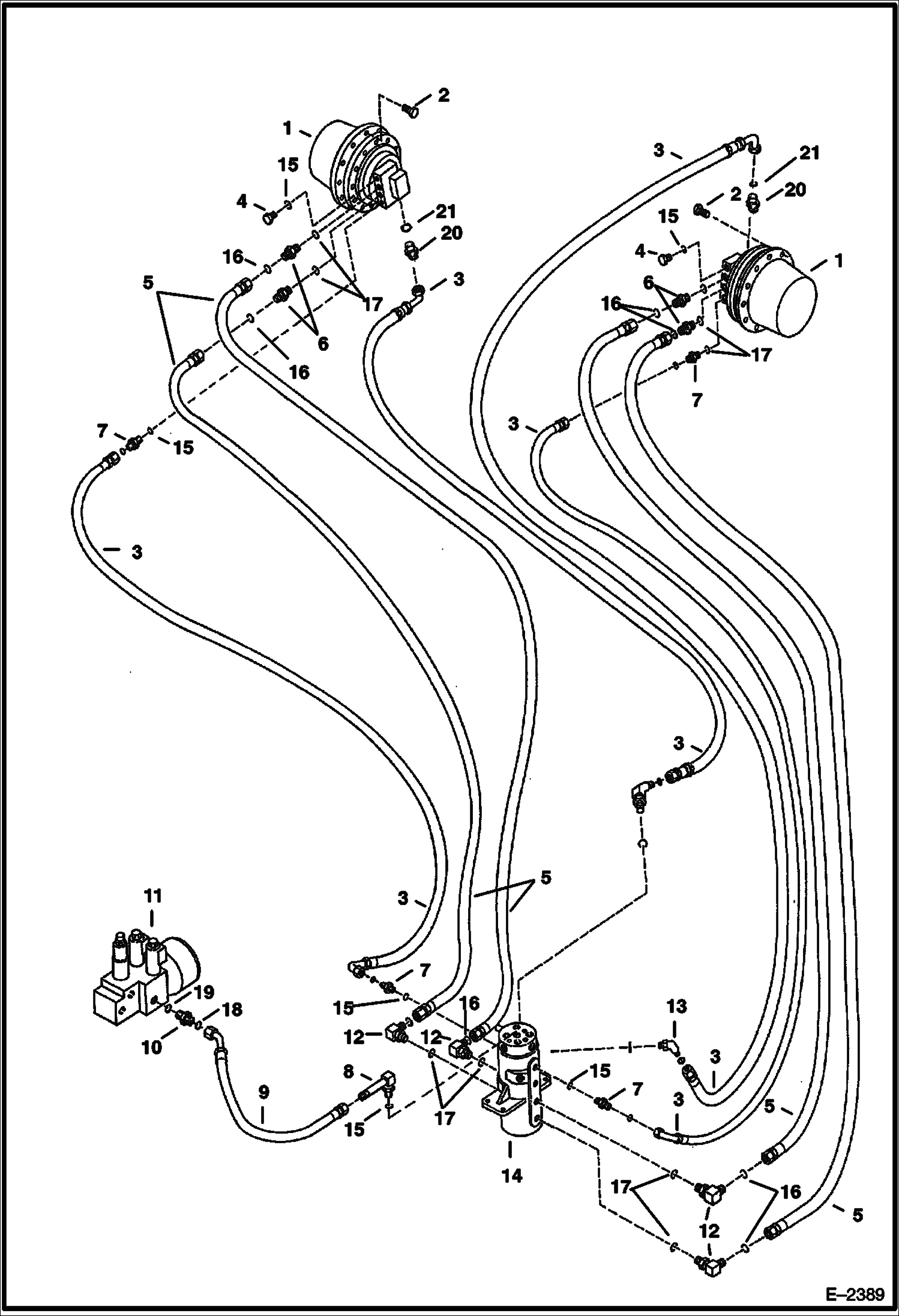

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Swivel Joint to Drive Motors) HYDRAULIC SYSTEM

1

6668730

MOTOR

2

7CM1435

BOLT

3

6800431

HOSE

4

24K5

PLUG W/Ref. 15 - flat boss face

4

PLUG NLA - W/Ref. 15 - tapered boss face - Was 24KN0005B - A

5

6806925

HOSE Was 6669694 - A

6

52E808

ADAPTER W/Ref. 16, 17

7

FITTING NLA - W/Ref. 15 - flat boss face - Was 15K5 - A

7

ADAPTOR NLA - W/Ref. 15 - tapered boss face - Was 15KN00005B - A

7

97K6

O RING 37 degree flared end

7

15KB0606

FITTING, HYD CONNECTOR W/Ref. 15 - flat boss face

8

6800755

ELBOW W/Ref. 15

9

6802824

HOSE

10

CONNECTOR NLA - W/Ref. 18 & 19 - tapered boss face - Was 6804359 - A

10

15KB0406

FTG HYD S CONNECTOR W/Ref. 19 - flat boss face

11

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - accumulator - order 6675141 - Was 6667819 - A

11

VALVE See Illustration ACCUMULATOR VALVE/ C3418A - NLA - accumulator - order 6675141 - Was 6673712 - A

11

6675141

VALVE Accumulator

12

55E810

ELBOW W/Ref. 16

13

ELBOW NLA - W/Ref. 15 - flat boss face - Was 18K5 - A

13

FTG HYD Elbow 45 NLA - W/Ref. 15 - tapered boss face - Was 18KN00005B - A

13

97K6

O RING 37 degree flared end

13

18KB0606

FITTING, HYD ELBOW W/Ref. 15 - flat boss face

14

6800992

SWIVEL JOINT See Illustration SWIVEL JOINT/ C3468

15

79K6

O RING 10 flat boss face

15

99K6

O RING tapered boss face

16

58K014

O-RING 10

17

79K8

O RING 10

18

99K4

O'RING

19

79K6

O RING 10 flat boss face

19

99K6

O RING tapered boss face

20

6670136

ADAPTER W/Ref. 21

21

6671922

O-RING
