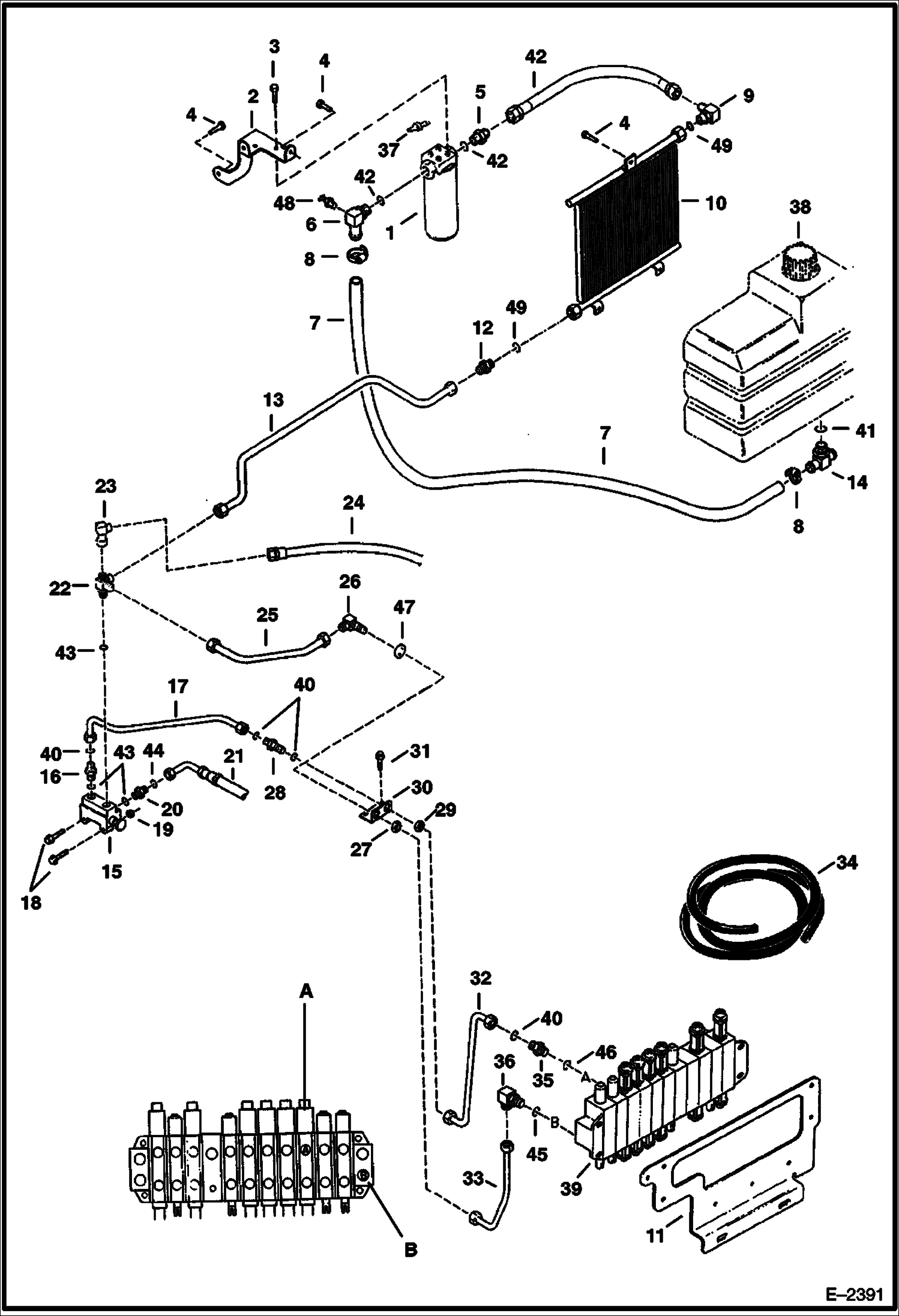

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Tank to Cooler Valve to Control Valve) HYDRAULIC SYSTEM

1

6670206

FILTER ASSY Hydraulic - Incl. Ref. 37

1

6670207

FILTER Filter

2

6803577

BRACKET Hydraulic Filter - Was 6628717 - D

3

1C612

BOLT

4

26GM8016

SCREW

5

15K6

ADAPTER W/Ref. 49 - Was 6802256 - A

6

6803284

ELBOW W/Ref. 49 - Was1312337B - B

7

HOSE NLA - 74'' (1880mm) long - Order Ref. 34 - Was 6628711 - D

8

6672281

CLAMP Was 5HM00043B - B

9

17K10

FITTING W/Ref. 49 - flat boss face

9

17KB1616

FITTING, HYD ELBOW W/Ref. 49 - tapered boss face - Was 17KN00010B - A

9

97K16

O-RING flare end

10

6672027

COOLER Was 6666610 - B

11

6628708

BRACKET Control Valve

12

15K10

ADAPTOR W/Ref. 49

13

6803579

TUBE Was 6803104 - A

14

6628907

TEE W/Ref. 41

15

6660267

VALVE Selector

16

52E1212

ADAPTER W/Ref. 40, 43

16

15KB1212

FITTING, HYD CONNECTOR W/Ref. 43 - Was 15KN00008B - A

16

97K12

O'RING flared end

17

6803103

TUBE

17

6804577

TUBE

18

29CM845

BOLT

19

1DM8

NUT

20

52E1012

ADAPTER W/Ref. 43 & 44

20

15KB1212

FITTING, HYD CONNECTOR W/Ref. 43 & 44 - Was 15KN00008B - A

20

97K12

O'RING flared end

21

6669458

HOSE

21

6669458

HOSE

21

6808389

HOSE

21

6808389

HOSE

22

6596790

TEE W/Ref. 43

23

11K6

UNION

24

6803504

HOSE Was 6802910 - D

25

6803102

TUBE

26

88F8

FITTING

27

86F8

NUT 5 Jam

28

51E1212

ADAPTER W/Ref. 40

29

61E12

NUT Jam

30

6801307

BRACKET

31

26GM10020

BOLT

32

6801310

TUBE

33

6802574

TUBE

34

6673825

HOSE bulk - sold per foot

35

52E1208

ADAPTER W/Ref. 40 & 46

36

17KB1210

FITTING, HYD ELBOW W/Ref. 45 - Was 6714901 - A

37

6632053

SWITCH Include W/Ref. 1 - Hyd. Pressure

38

TANK See Illustration HYDRAULIC TANK/ C3508 - Hydraulic

39

6669588

VALVE See Illustration CONTROL VALVE/ E2381 - Control

40

58K018

O-RING 10

41

79K32

O RING 10

42

6803578

TUBE

43

79K12

O RING 10 flat boss face

43

99K12

O RING tapered boss face

44

58K016

O-RING 10

45

79K10

O RING 10

46

79K8

O RING 10

47

6713873

WASHER Was 25E000031B - B

48

6632633

SWITCH hyd temp

49

79K16

O RING 10 flat boss face

49

99K16

O-RING tapered boss face
