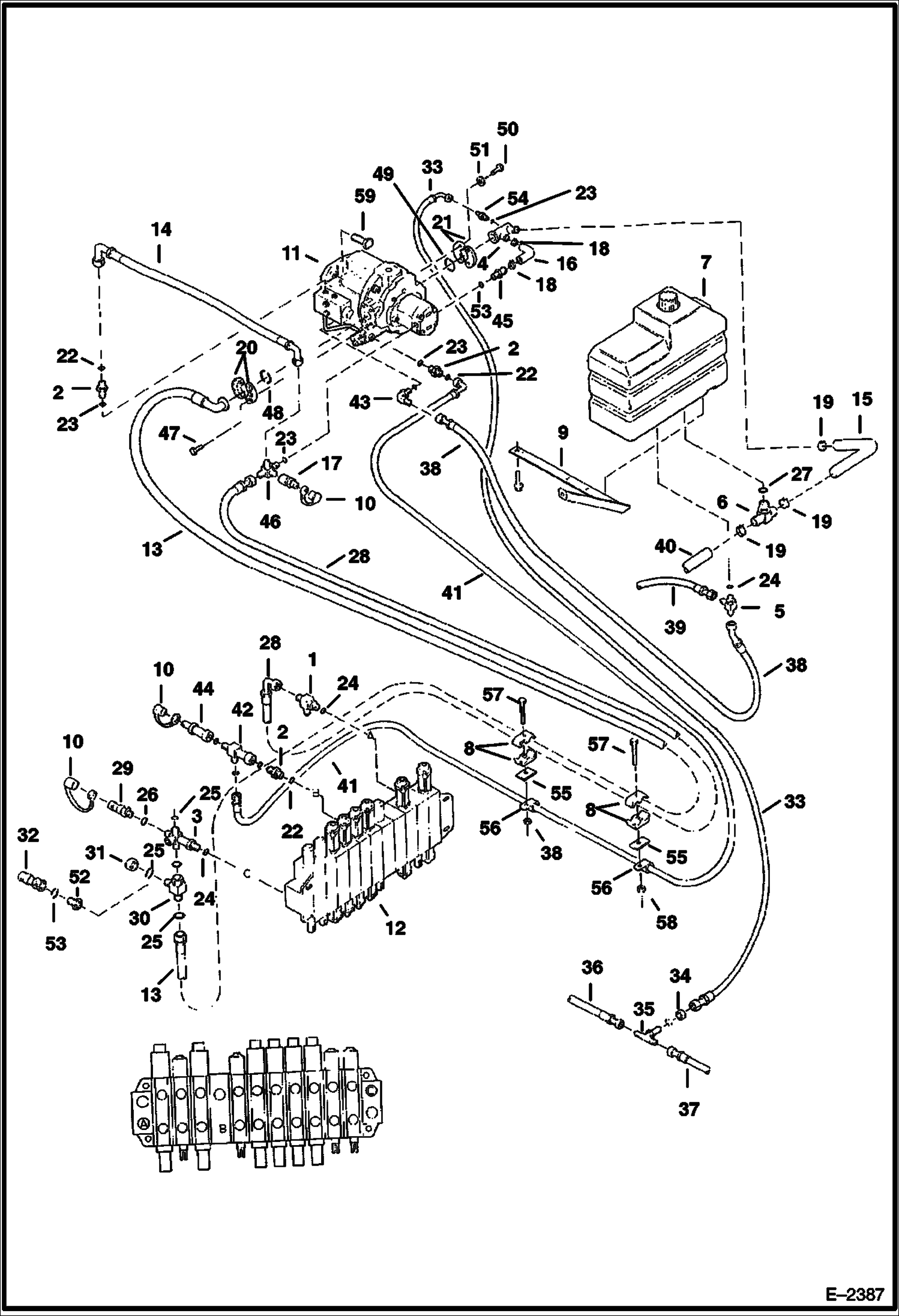

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Tank to Pump to Control Valve) HYDRAULIC SYSTEM

1

6587567

TEE W/Ref. 24

2

52E404

ADAPTER W/Ref. 22 & 23

2

15KB0404

FTG HYD S Connector

2

15KB0404

FTG HYD S Connector

2

97K4

O'RING Flare end

3

6802575

TEE W/Ref. 24, 25

4

6628709

MANIFOLD Pump

5

6587446

TEE W/Ref. 24

6

6628907

TEE W/Ref. 27

7

6628728

TANK See Illustration HYDRAULIC TANK/ C3508 hydraulic - Was 6628727 - D

8

6669587

CLAMP

9

6804032

STRAP Hydraulic Tank - Was 6628915 - C

10

6630367

CAP Dust

11

PUMP ASSY See Illustration PUMP ASSY./ TS1528 - NLA - Order 6674785 PUMP, 6805841 HOSE, 6805839 FITTING - Was 6668914 - A

11

6674785

PUMP, HYD

12

6669588

VALVE See Illustration CONTROL VALVE/ E2381 - Control

13

6806937

HOSE Was 6669457

14

6803290

HOSE

14

6803290

HOSE

14

6805843

HOSE

14

6805843

HOSE

15

6800727

HOSE

16

6800728

HOSE See Illustration HYDRAULIC CIRCUITRY/ E2388

16

6805841

HOSE

16

6805841

HOSE

17

7000009

PLUG Diagnostic

18

6672281

CLAMP Was 5HM00035B - B

19

42HC250

CLAMP See Illustration HYDRAULIC CIRCUITRY/ E2388 - Was 6671626 - A

20

19J16

FLANGE Split Flange

21

19J24

CLAMP Split Flange

22

58K11

O RING 10

23

79K4

O RING 10 flat boss face

23

99K4

O'RING tapered boss face

24

79K10

O RING 10

25

58K018

O-RING 10

26

79K6

O RING 10

27

79K32

O RING 10

28

6800438

HOSE

29

6630168

COUPLER Diagnostic - W/Ref. 26

30

75E1212

TEE W/Ref. 25

31

63E12

CAP

32

6667807

COUPLER For testing purposes only - not included W/Excavator

33

6802442

HOSE

34

86F3

LOCKNUT Bulkhead

35

90F3

TEE Bulkhead

36

6802258

HOSE

37

6803091

HOSE

38

6800440

HOSE

39

6800665

HOSE See Illustration HYDRAULIC CIRCUITRY/ E2388

40

HOSE See Illustration HYDRAULIC CIRCUITRY/ E2391 - Ref. 7

41

6800436

HOSE

42

75E404

TEE

43

17K7

ELBOW W/Ref.

44

6669585

COUPLER Diagnostic

45

6715715

FITTING W/Ref. 53 - Was 6805715 - D

45

6805839

FITTING

46

6802775

ADAPTER W/Ref. 24

47

17C620

BOLT

48

58K219

O RING 10

49

58K225

O RING 10

50

17C824

BOLT 5 Was 17K000824B - D

51

4E8

WASHER

52

78E1212

ADAPTER W/Ref. 53 - for testing purposes

53

99K12

O RING Was 79K000012B - B

54

15K3

CONNECTOR

55

6653493

COVER

56

30H35

CLAMP 10

57

1CM885

BOLT

58

51DM8

NUT

59

1CM1235

BOLT Pump Mounting
