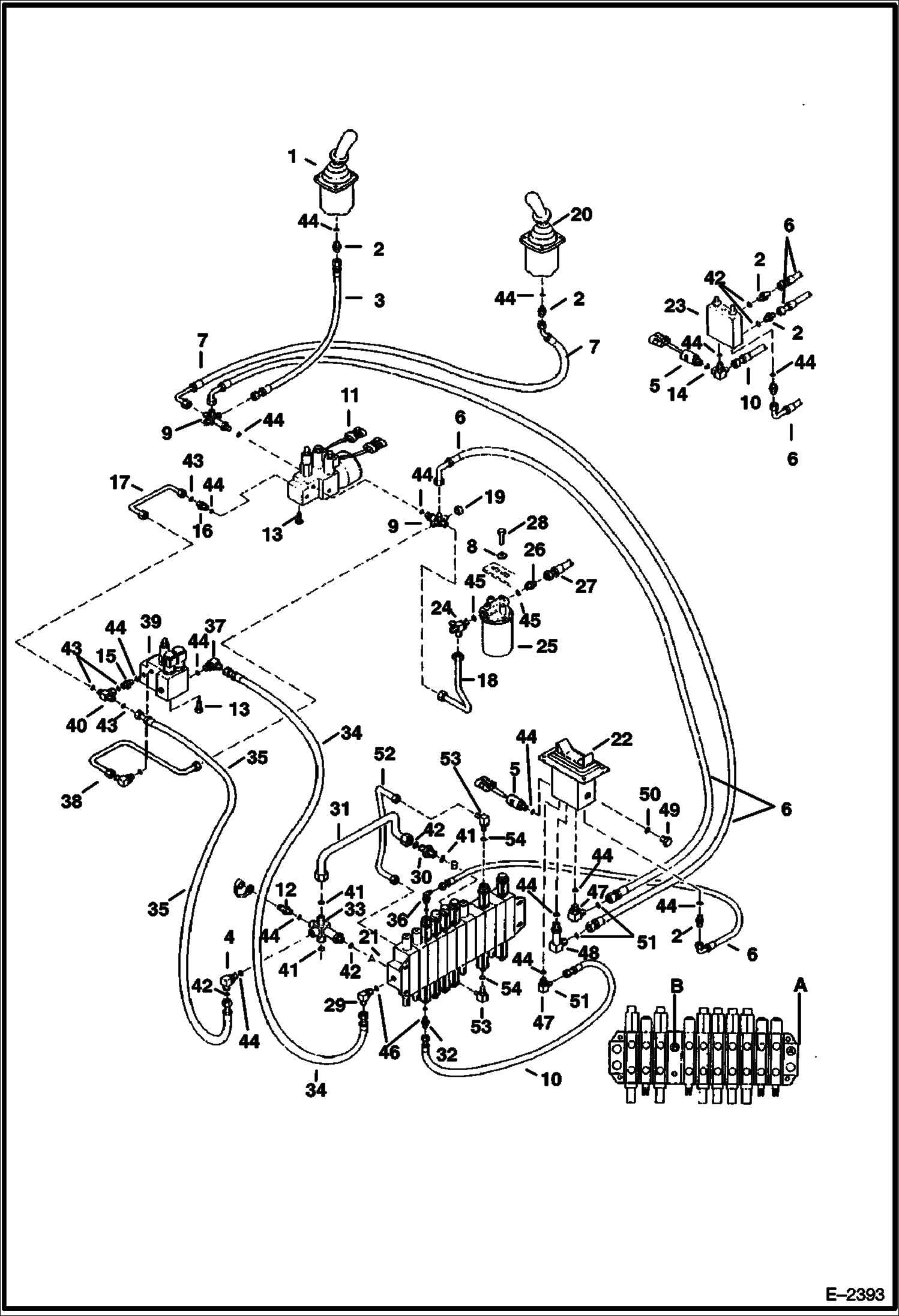

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Control Valve to Accumulator to Auxiliary Valve) HYDRAULIC SYSTEM

1

JOYSTICK See Illustration R.H. JOYSTICK CONTROLS/ B14601 - R.H.

2

1308081

ADAPTER W/Ref. 44 - flat boss face

2

CONNECTOR NLA - W/Ref. 44 - tapered boss face - Was 6804359 - A

2

97K4

O'RING flared end

2

15KB0406

FTG HYD S CONNECTOR W/Ref. 44 - flat boss face

3

6800666

HOSE

4

55E406

ELBOW W/Ref. 43 & 44

5

6657267

SWITCH W/Ref. 44 - flat boss face

6

6800672

HOSE

7

6803090

HOSE

8

25E13

WASHER 5

9

6803031

ADAPTER W/Ref. 44 - Was 6800756 - D

10

6802909

HOSE

11

See Illustration ACCUMULATOR VALVE/ C3418 - NLA - accumulator - order 6675141 - Was 6667819 - A

11

VALVE See Illustration ACCUMULATOR VALVE/ B17155 - NLA - accumulator - order 6675141

11

6675141

VALVE See Illustration ACCUMULATOR VALVE/ B17155

11

6675141

VALVE

12

6630168

COUPLER Diagnostic

13

29CM820

SCREW

14

6802825

ADAPTER W/Ref. 44 - Was 6802852 - D

15

52E406

ADAPTER W/Ref. 43 & 44

16

6670311

ADAPTER Valve, Inline Check-W/Ref. 43,44

16

52E406

ADAPTER W/Ref. 43 & 44

17

6802602

TUBE

18

6803289

TUBE Was 6802600 - A

19

36K3

CAP Was 6802601 - A

20

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14601A - L.H.

21

6669588

VALVE See Illustration CONTROL VALVE/ E2381 - Control

22

6674856

VALVE ASSY See Illustration AUXILIARY VALVE/ C3518 - Auxiliary W/Detent - Was 6672954 - A

23

VALVE ASSY NLA - Aux. W/O detent - Order Ref. 22 - Was 6671061 - A

24

6803287

TEE W/Ref. 45 - Was 6801022 - A

25

6686217

FILTER ASSY Hydraulic - Case Drain - Was 6682415 - A

25

6516722

FILTER Filter - Was 6660728 - A

26

15K6

ADAPTER W/Ref. 45

27

6800665

HOSE

28

1C408

BOLT

29

17K3

ELBOW W/Ref. 46

30

52E1210

ADAPTER W/Ref. 41, 42

31

6803951

TUBE

32

15K3

CONNECTOR W/Ref. 46

33

6802575

TEE W/Ref. 41, 42

34

6802777

HOSE

35

6803073

HOSE

36

15K5

FITTING W/Ref. 44

37

1316049

ELBOW W/Ref. 44

38

6802603

TUBE

39

6670767

VALVE See Illustration PRESSURE REDUCING VALVE/ B17969 Pressure reducing

40

59E404

TEE W/Ref. 43

41

58K018

O-RING 10

42

79K10

O RING 10

43

58K11

O RING 10

44

79K6

O RING 10 flat boss face

44

99K6

O RING tapered boss face

45

79K8

O RING 10

46

79K4

O RING 10

47

ELBOW NLA - W/Refs. 44 & 51- tapered boss face - Was 6715652 - A

47

17KB0406

FITTING, HYD ELBOW W/Ref. 44 & 51 - flat boss face

48

6802867

ELBOW W/Refs. 44 & 51

49

24K5

PLUG W/Ref. 50 - Was 24KN00005B - A

50

99K6

O RING

51

97K4

O'RING flared end

52

6805686

TUBELINE

53

17KB0404

FTG HYD ELBOW 90 Was 17KV00003B - A

53

97K4

O'RING flare end

54

99K4

O'RING
