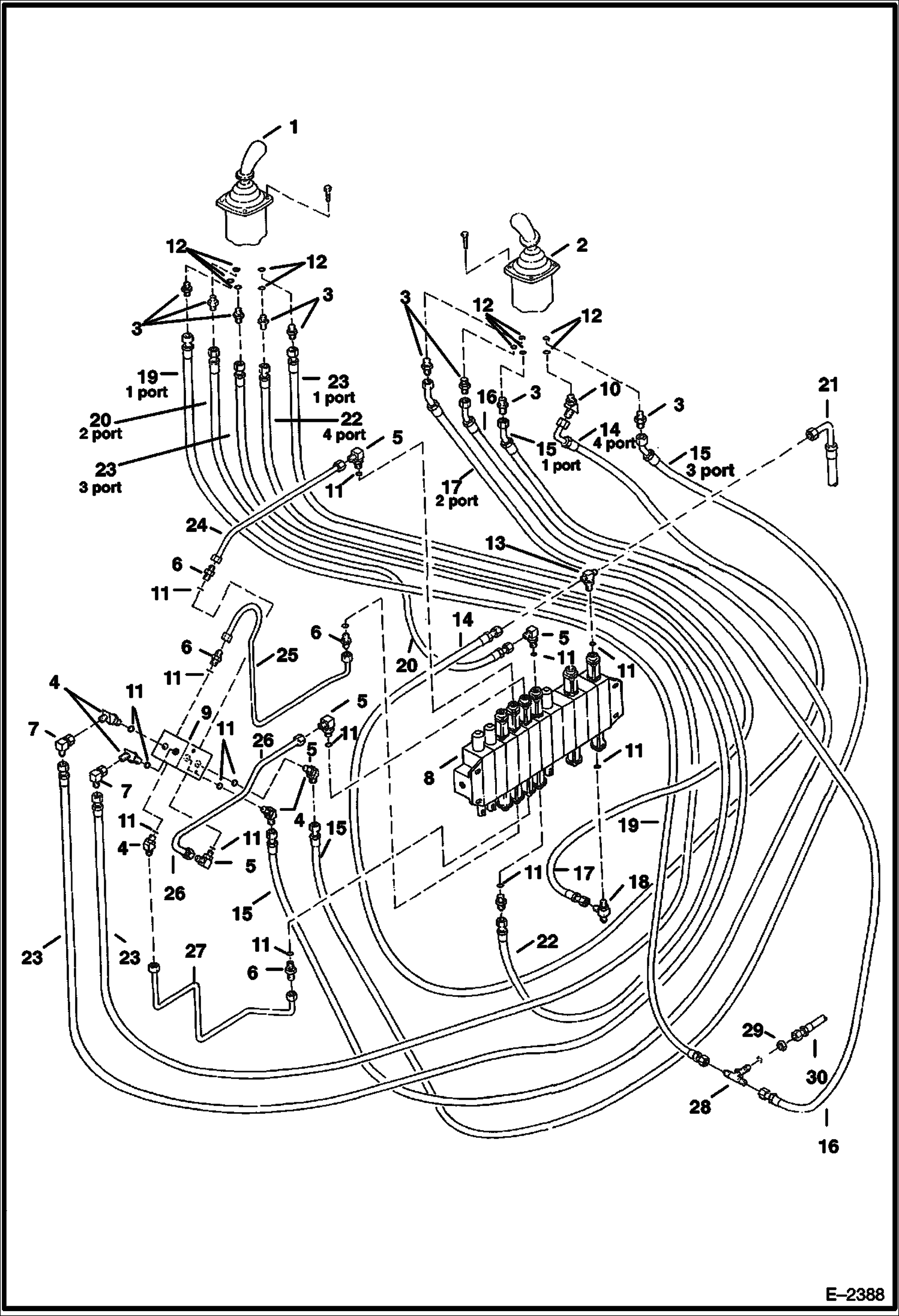

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Joystick Controls) HYDRAULIC SYSTEM

1

6667722

JOYSTICK, RH See Illustration R.H. JOYSTICK CONTROLS/ B14601 - RH

2

6671616

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14601A - L.H.

3

1308081

ADAPTER W/Ref. 12

4

18K3

ELBOW W/Ref. 11

5

17K3

ELBOW W/Ref. 11

6

15K3

CONNECTOR W/Ref. 11

7

11K3

ELBOW

8

VALVE See Illustration CONTROL VALVE/ E2381 - Control

9

6805257

VALVE ASSY See Illustration SELECTOR VALVE ASSY/ TS1353 - Selector - Was 6597401 - A

10

6707895

ELBOW W/Ref. 12

11

79K4

O RING 10

12

79K6

O RING 10

13

19K3

FITTING W/Ref. 11

14

6802822

HOSE

15

6802819

HOSE

16

6803091

HOSE

17

6803074

HOSE

18

21K3

CONNECTOR W/Ref. 11

19

6802258

HOSE

20

6597817

HOSE

21

6803502

HOSE See Illustration HYDRAULIC CIRCUITRY/ E2429

22

6800669

HOSE

23

6802066

HOSE

24

6801921

TUBE

25

6801923

TUBE

26

6801922

TUBE

27

6801924

TUBE

28

90F3

TEE Bulkhead

29

85F3

ELBOW

30

6802442

HOSE See Illustration HYDRAULIC CIRCUITRY/ E2387
