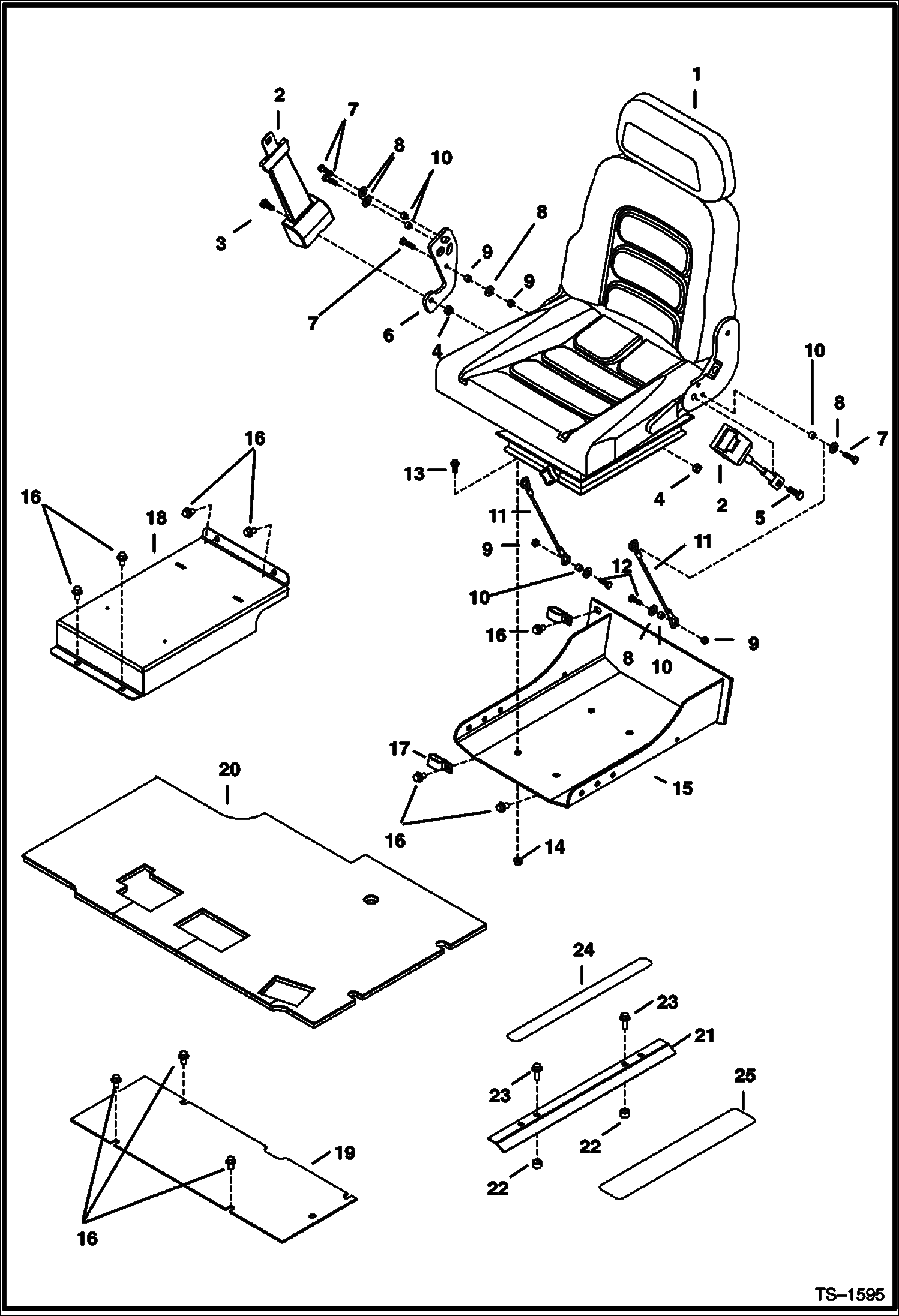

Запчасти Bobcat 337 SEAT, MOUNTING & FLOORPLATES CONTROLS

1

See Illustration SEAT/ B17486 - NLA - vinyl covered- order 6672519 - Was 6660414 - A

1

See Illustration SEAT/ B17486 - NLA - cloth covered - ordere 6672520 - Was 6658850 - A

2

6670865

SEAT BELT

3

1CM1020

BOLT

4

53DM10

NUT

5

1CM1030

BOLT

6

6803068

BRACKET

7

1CM835

BOLT Was 1CM00830B - B

8

25E16

WSHR

9

53DM8

NUT

10

6802539

SPACER

11

6589689

TETHERS

12

1CM825

BOLT

13

29CM820

SCREW Seat to Seat Mount

14

51DM8

NUT

15

6808586

MOUNT Seat - Was 6802636 - A

16

26GM1020

SCREW

17

31H38

CLAMP

18

6802749

COVER

19

6800247

PLATE Floor

20

6800495

FLOORMAT

21

6802930

ANGLE Floormat Retainer

22

6503451

SPACER

23

26GM10030

BOLT

24

6593245

TREAD Installed on Ref. 21

25

6588953

TREAD Installed on Upperstructure
