Запчасти Bobcat 337 BOOM WORK EQUIPMENT

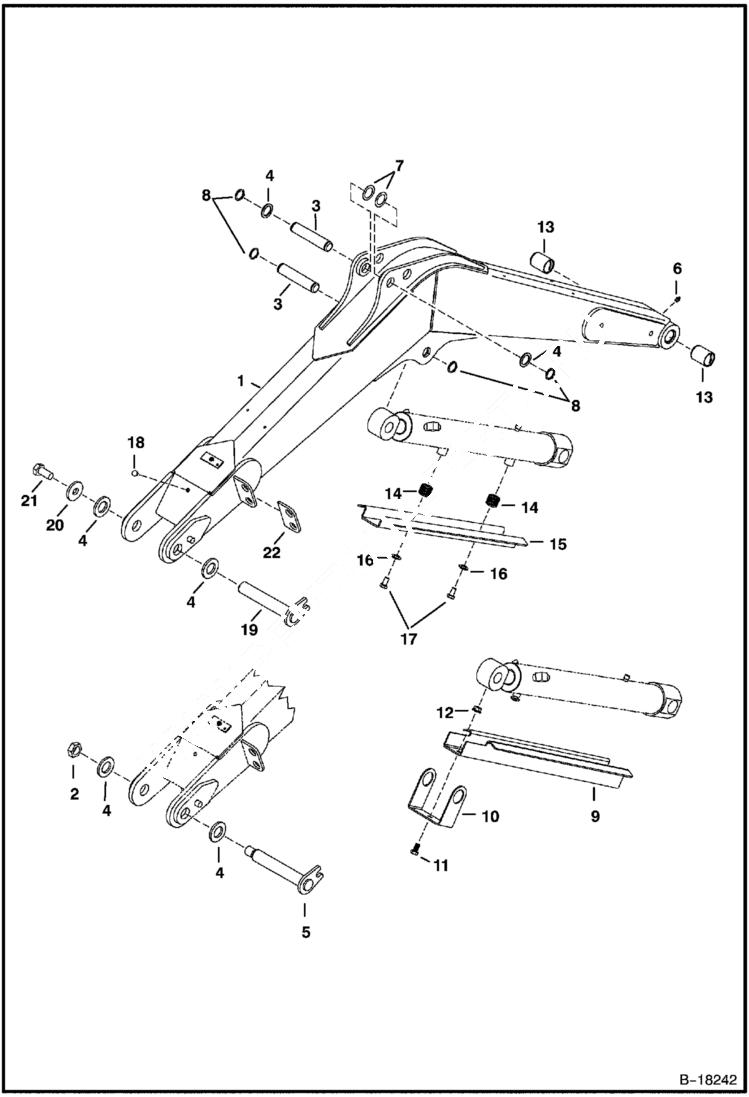

Схема запчастей Bobcat 337 - BOOM WORK EQUIPMENT

Артикул

Название

Примечание

Количество

1

7125514

BOOM, DIPPER ARM Also Order Ref. 13 - Was 6810140 - A

2

39DM42

NUT

3

6628009

PIN

4

6538893

WASHER

5

PIN NLA - Order Ref 19, 20, & 21 - Was 6628010

6

10H25

FITTING, GREASE 5

7

6810703

SPACER

8

6660274

SNAP RING

9

6803453

SHIELD Cylinder

10

6803450

CHANNEL

11

1CM1630

BOLT

12

51DM16

NUT

13

6597689

BUSHING, PRESS FIT

14

6804778

SPRING

15

6804775

CHANNEL cylinder guard

16

25E26

WASHER Was 25E-216 - D

17

17C1012

BOLT

18

6597572

BUMPER

19

7127041

PIN W/A

20

6813933

WASHER

21

53CM2450

SCREW

22

6597688

PLATE weld on

Выбрано товаров: 22
