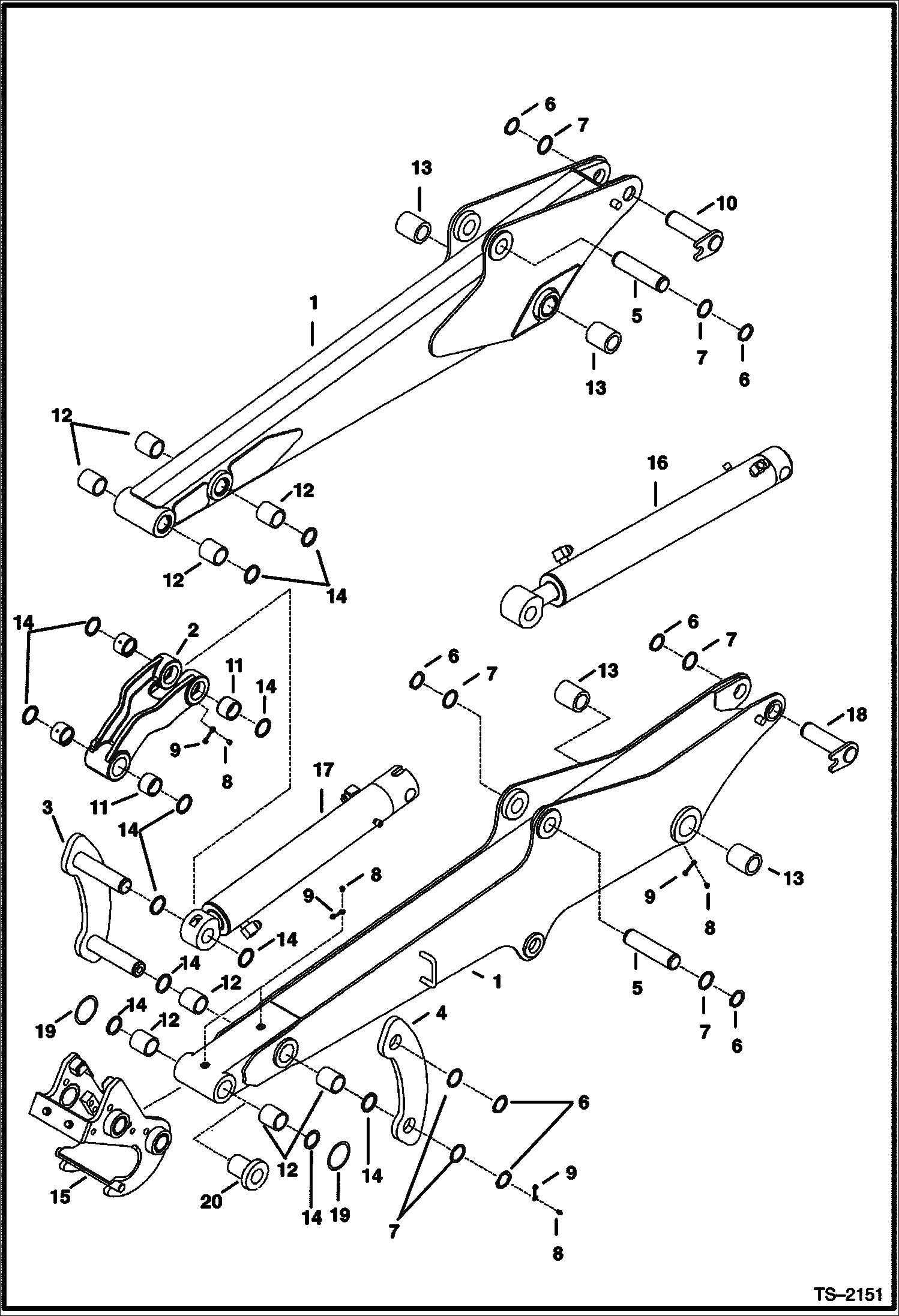

Запчасти Bobcat 337 ARM & BUCKET LINK WORK EQUIPMENT

1

ARM NLA - Order 6804399 & Ref.12 (2), 13 (2), 14 (4) & 20 (2) - European - W/O clamp mount- Order 6810251 (1), 6805013 (1), 6805204 (1) & 6804830 (1) - if equipped with clamp, also order clamp cylinde

1

ARM NLA - Order 6804399 & Refs. 12 (2), 13 (2), 14 (4) & 20 (2) - Domestic - W/Clamp Mount - Order 6804444 (1), 6805013 (1), 6805204 (1) & 6804830 (1) - If equipped with clamp, also order clamp cylind

1

ARM NLA - Standard - Order 6804399 & Refs. 12 (2), 13 (2), 14(4) & 20 (2) - if equipped with clamp, also order clamp cylinder 6808069 - Was 6804399 - A

1

6804399

ARM Standard- also order Refs. 12(2), 13 (2), 14 (4) & 20 (2)

1

ARM NLA - long - Order 6804414 arm, 6804830 link, 6805204 pin & Ref. 12 (2), 13 (2), 14 (4) & 20 (2) - if equipped with clamp, also order clamp cylinder 6808069 - Was 6805995 - A

1

ARM NLA - Long - Order 6804414 arm, 6804830 link, 6805204 pin & Refs. 12 (2), 13 (2), 14 (4) & 20 (2)- Was 6805995 - A

2

6804816

LINK W/Refs. 8, 9, 11 & 14

2

6805278

LINK W/Refs. 8, 9, 11 & 14

3

6597719

LINK W/Grease hole in one pin - for early style arms

3

6804830

LINK W/No grease holes in pins - for later style (cast end) arms

4

6597720

LINK

5

6628002

PIN

6

6668787

RING

7

6628547

WASHER

8

10H25

FITTING, GREASE 5

9

6652943

COVER grease fitting

10

6597725

PIN 6.14''

11

6802703

BUSHING, PRESS FIT

12

6628341

BUSHING, PRESS FIT straight

13

6597689

BUSHING, PRESS FIT

14

6669287

SEAL Dust

15

See Illustration X-CHANGE MOUNT/ C3530

16

See Illustration ARM CYLINDER/ B18299 ARM

17

See Illustration BUCKET CYLINDER/ C3473 BUCKET

18

6805204

PIN

19

6674145

O-RING Was 6674415 - D

20

6805601

BUSHING mushroom type
