Запчасти Bobcat 337 TRACKS (Steel) ACCESSORIES & OPTIONS

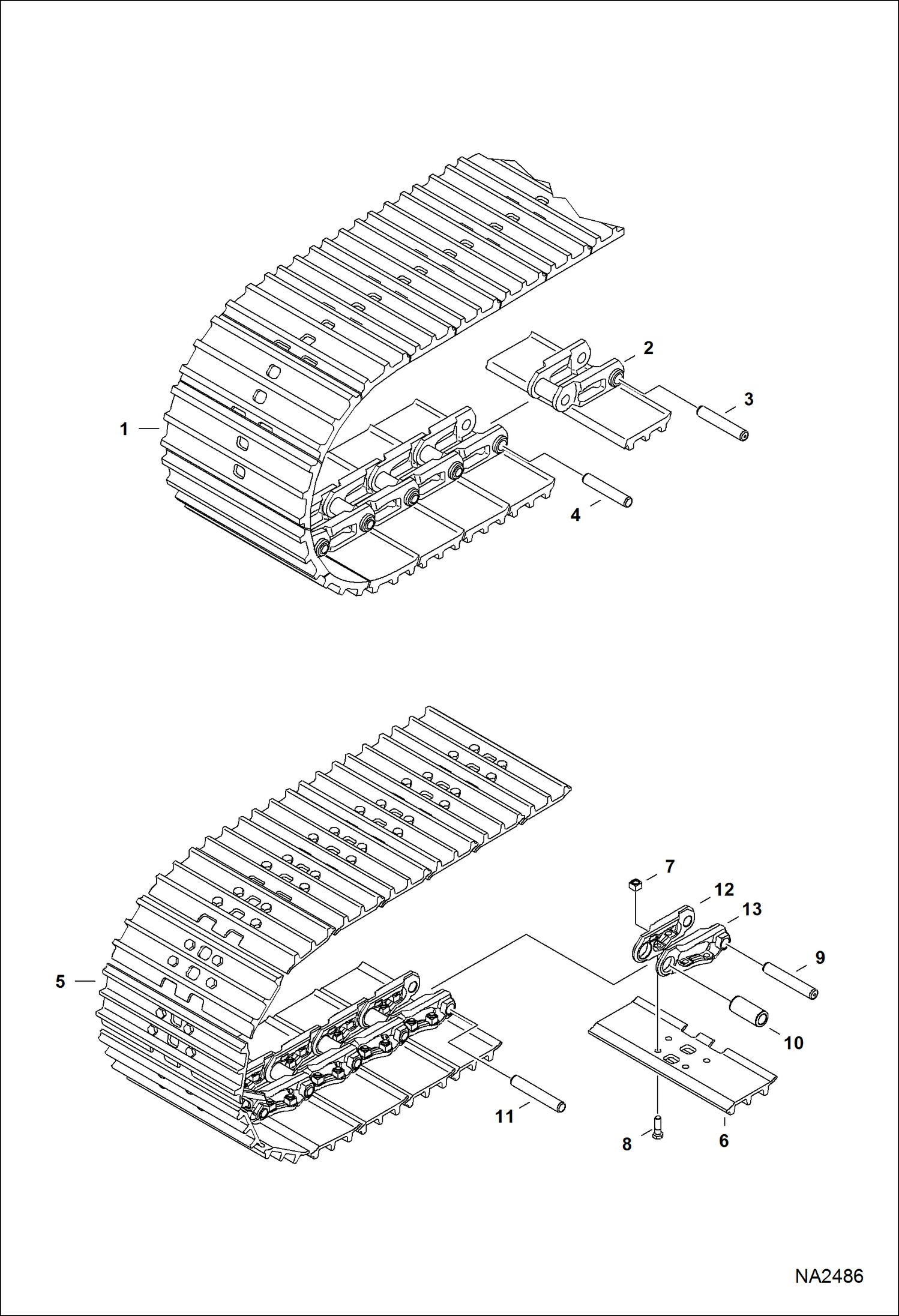

Схема запчастей Bobcat 337 - TRACKS (Steel) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

TRACK NLA - Ref. 2-4 - P/N is for 1 track - Order Ref. 5 - Was 6677899 - A

2

6678072

LINK quantity shown for 1 track

3

6678070

PIN quantity shown for 1 track

4

6678071

PIN quantity shown for 1 track

5

7009151

TRACK, STEEL Ref. 6-13

6

7012334

PAD, TRACK STEEL quantity shown for 1 track

7

7008955

NUT quantity shown for 1 track

8

7008954

BOLT quantity shown for 1 track

9

7012339

PIN, MASTER quantity shown for 1 track

10

7012340

BUSHING quantity shown for 1 track

11

7012341

PIN quantity shown for 1 track

12

7012342

LINK, LH quantity shown for 1 track

13

7012343

LINK, RH quantity shown for 1 track

Выбрано товаров: 13
