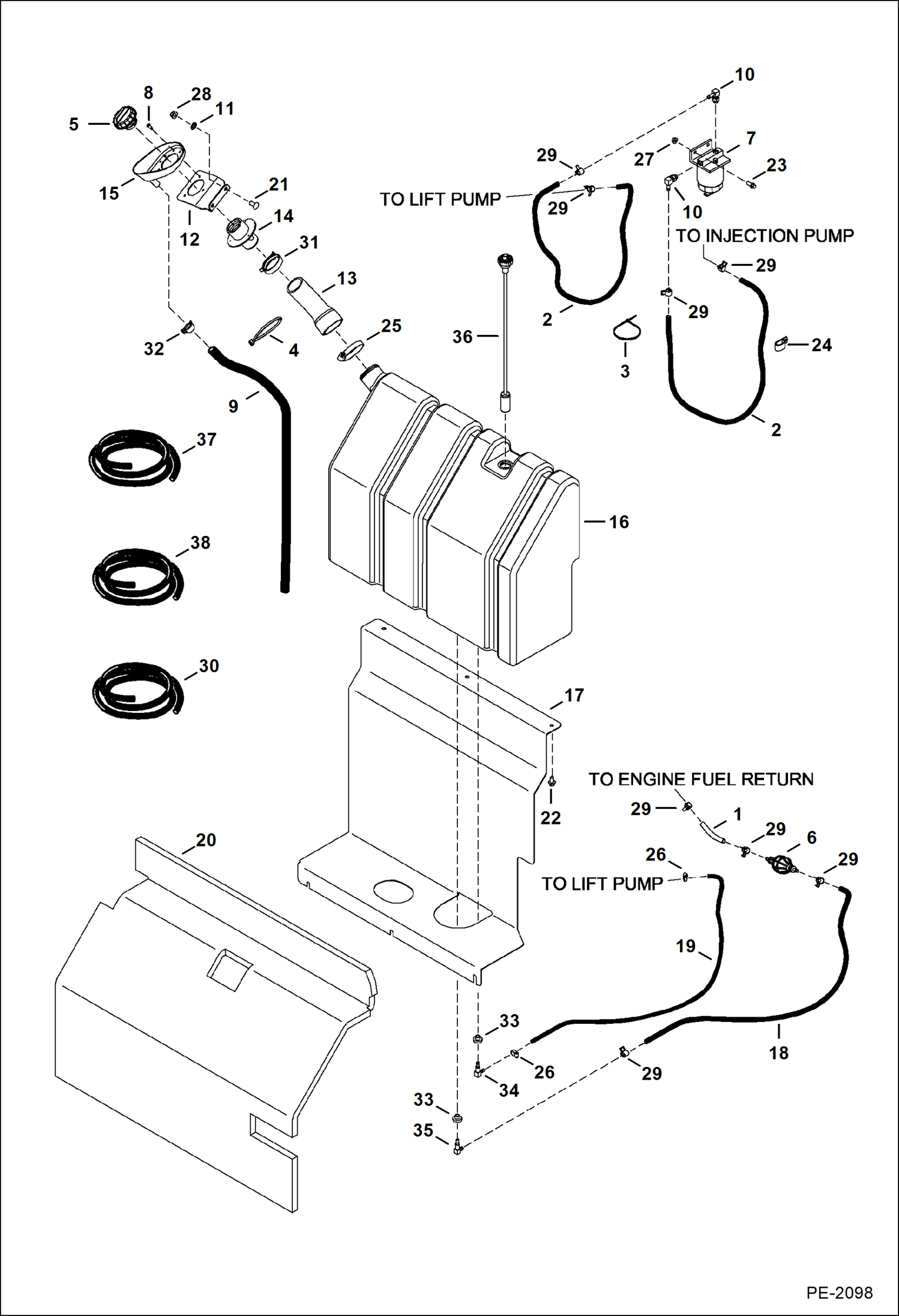

Запчасти Bobcat 337 FUEL SYSTEM POWER UNIT

1

HOSE NLA - 4.5'' (115 mm) long - Order Ref. 37

2

HOSE NLA - fuel - 40'' (1016 mm) long - Order Ref. 37

3

6610510

TIE

4

6624289

STRAP, TIE

5

6698505

CAP, FUEL DIESEL W/plastic tether - Also Order 6665321 male & 6665322 female rivet

5

7113340

CAP. DIESEL ESA Only

5

6665321

RIVET male - Use W/tethered cap

5

6665322

RIVET female - Use W/tethered cap

6

6667170

PUMP 193 mm (7.6'') long

7

6667353

FILTER ASSY

7

6667352

FILTER, FUEL W/SEPARATOR 12

7

6658180

PLUG, BLEED

8

7106279

BOLT

9

HOSE NLA - breather - 38'' (966 mm) long - Order Ref. 38

10

6715183

ELBOW

11

6674264

RETAINER NUT

12

6807615

BRACKET

13

6807616

HOSE

14

6807722

INLET

15

6809964

GUARD

16

6817001

TANK fuel

17

6817032

BRACKET

18

HOSE NLA - 46'' (1169 mm) long - Order Ref. 37

19

HOSE NLA - 49'' (1245 mm) long - Order Ref. 30

20

6817264

INSULATION

21

28CM1020

BOLT

22

26GM10020

BOLT

23

29CM820

SCREW

24

31H31

CLIP

25

42H40

HOSECLAM5

26

42HS04

CLAMP, HOSE

27

43DM8

NUT

28

43DM10

NUT

29

5HM14

CLAMP

30

6578169

HOSE bulk - sold per foot - 0.19'' ID

31

5HM55

CLAMP

32

5HM23

CLAMP

33

6553411

BUSHING 0.38'' ID

34

7101291

ELBOW 3 barb on outlet end

35

6666302

FITTING, ELBOW barbed - Was 7126672 - B

36

7179840

SENSOR FUEL W/ O-ring - Was 6680440 - A

37

6577822

HOSE bulk - sold per foot

38

6578172

HOSE bulk - sold per foot
