Запчасти Bobcat 337 INJECTOR NOZZLES POWER UNIT

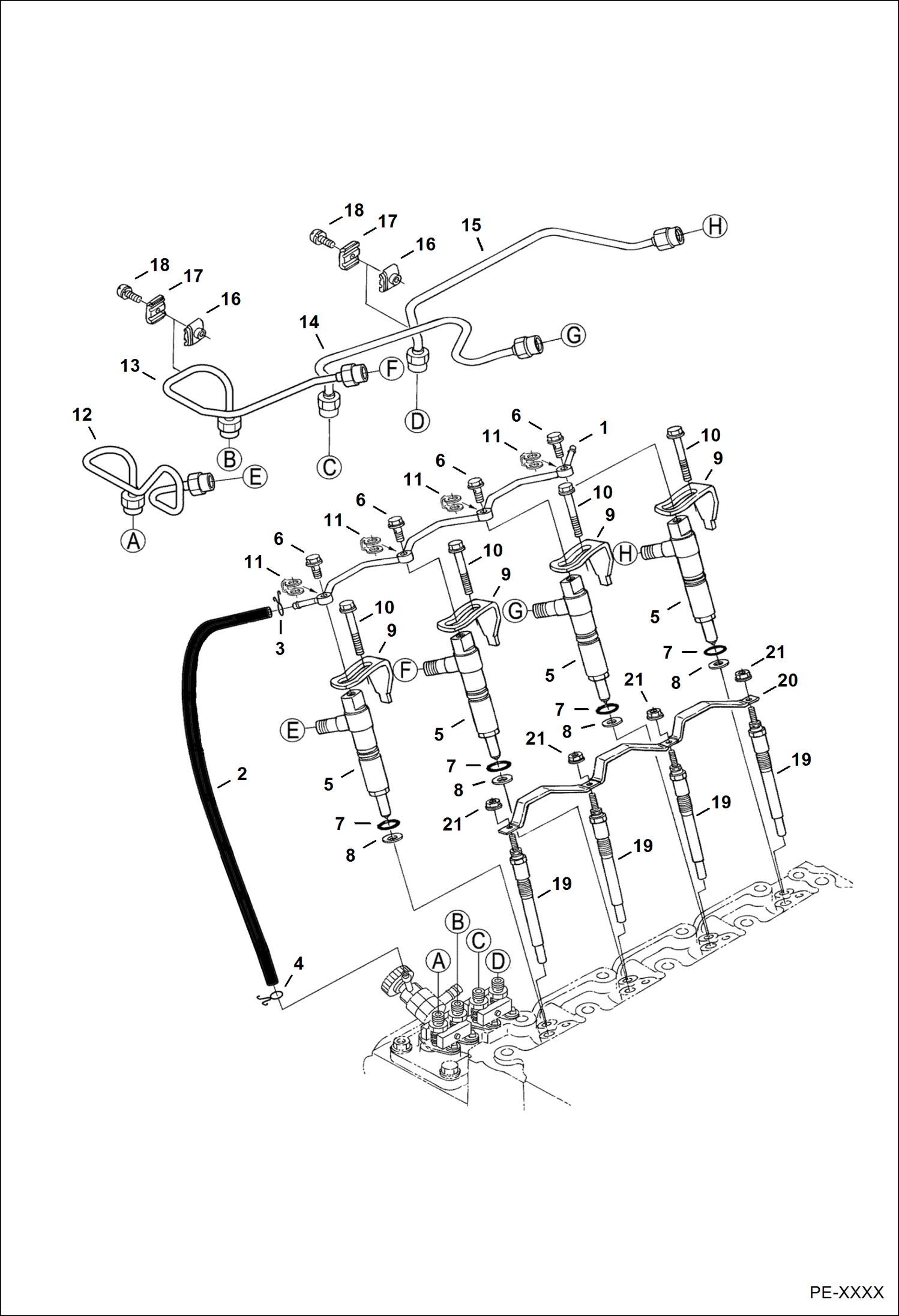

Схема запчастей Bobcat 337 - INJECTOR NOZZLES POWER UNIT

Артикул

Название

Примечание

Количество

1

6684842

PIPE, OVERFLOW

2

6974656

TUBE ASSY, OVERFLOW W/Ref. 3 & 4

3

6654718

CLAMP tube

4

6698121

CLAMP tube

5

6698232

INJECTOR, FUEL ASSY

5

6698232REM

NOZZLE, FUEL INJ. KUBOTA V2403

6

6680788

BOLT Was 6689528 - A

7

6670769

O-RING

8

6969824

GASKET, NOZZLE INJ

9

7015275

CLAMP, INJECTION nozzle - Was 6684845 - A

10

6684844

BOLT

11

6685498

GASKET

12

6684846

PIPE Was 6694846 - D

13

6684847

PIPE, INJECTION

14

6684848

PIPE, INJECTION

15

6684849

PIPE, INJECTION

16

6652688

CLAMP pipe

17

6652689

CLAMP pipe

18

3974260

SCREW W/washer

19

6684850

GLOW PLUG

20

6969825

CORD, GLOW PLUG

21

6670472

NUT

Выбрано товаров: 22
