Запчасти Bobcat 337 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

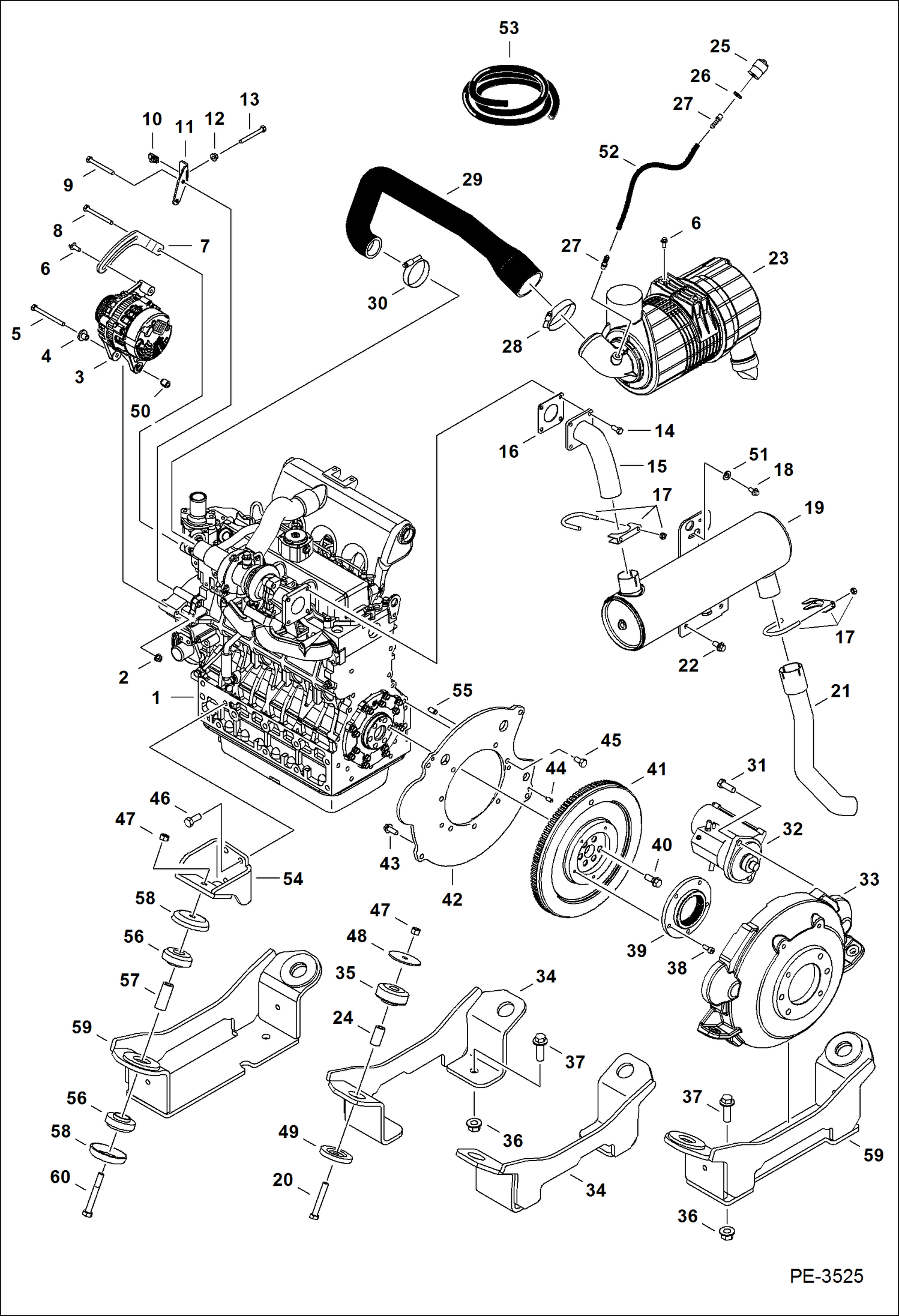

Схема запчастей Bobcat 337 - ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

Артикул

Название

Примечание

Количество

1

ENGINE See Illustration ENGINE & GASKET KITS/ NA1528 - Was 6692754

2

51DM8

NUT

3

6681857

ALTERNATOR See Illustration ALTERNATOR/ B22386

4

6816532

SPACER

5

1CM8110

HEX CAP S

6

29CM820

SCREW

7

6817598

BRACKET

8

1CM880

BOLT

9

1CM875

BOLT

10

6676169

NUT

11

6817767

BRACKET

12

43DM8

NUT

13

4CM870

BOLT

14

6701123

SCREW

15

6693877

TUBE, EXHAUST

16

6727753

GASKET

17

6677363

CLAMP, FULL CIRCLE

18

29CM816

SCREW

19

6689582

MUFFLER, EXHAUST

20

1CM1280

BOLT

21

7140375

PIPE

22

29CM1020

BOLT

23

6697868

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ PE3402

24

6706043

SPACER

25

6515007

GAUGE

26

25E17

WASHER 5

27

6505813

CONNECTOR

28

42HC300

CLAMP

29

7151292

HOSE, AIR FORMED

30

42HC200

CLAMP

31

1CM1235

BOLT

32

STARTER See Illustration STARTER/ D2437

33

7121429

HOUSING MACH

34

7109895

MOUNT

35

6661785

MOUNT, ENG

36

51DM16

NUT

37

29CM1650

BOLT

38

3GM820

SCREW

39

6670757

COUPLER

40

6598275

BOLT

41

7161404

FLYWHEEL, ENG ASSY See BTI388ldr - Was 7151837 - A

42

7126918

PLATE

43

29CM1025

BOLT

44

7101341

PIN

45

6733378

SCREW

46

6719828

BOLT

47

53DM12

NUT

48

6705106

WASHER

49

6661787

WASHER

50

6675838

BUSHING

51

17EM80

WASHER

52

HOSE NLA - 16'' (407 mm) long - Order Ref. 53

53

6557720

HOSE bulk - sold per foot

54

6814278

MOUNT

55

23JM1024

PIN HARDENED PARALLE - Was 20JM1025 - B

56

6688994

MOUNT

57

7116850

SPACER

58

7116851

CUP

59

7156071

MOUNT, ENG

60

7CM1290

SCREW

Выбрано товаров: 60
