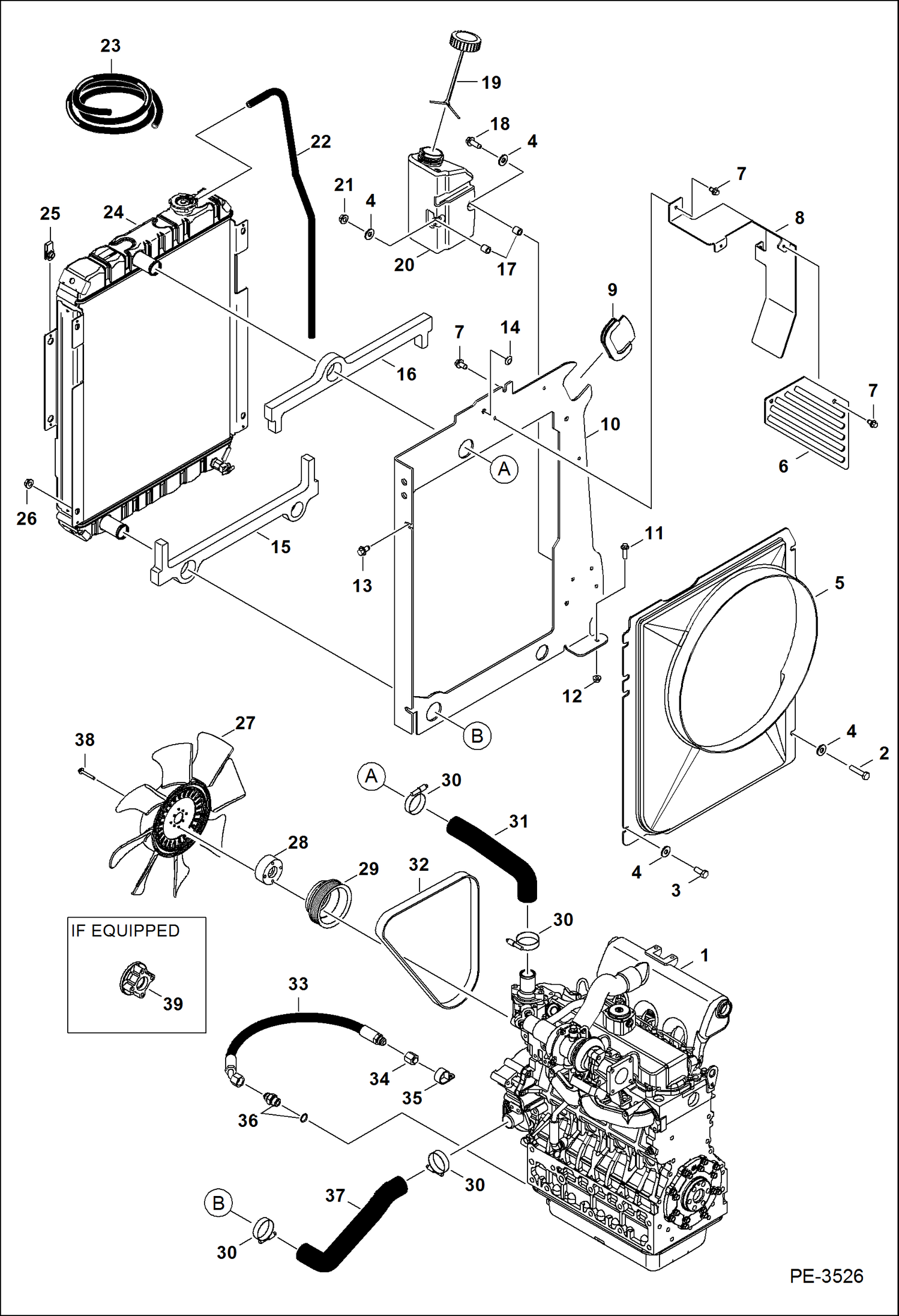

Запчасти Bobcat 337 ENGINE & ATTACHING PARTS (Radiator Water Exchanger) POWER UNIT

1

ENGINE See Illustration ENGINE & GASKET KITS/ NA1528 - Was 6692754

2

1CM1045

BOLT

3

1CM1016

SCREW

4

25E18

WASHER

5

6816489

SHROUD

6

7100666

GUARD

7

26GM8016

SCREW

8

7100659

GUARD

9

6808437

GROMMET

10

6816662

PLATE

11

29CM830

CAPSCREW

12

43DM8

NUT

13

26GM10020

BOLT

14

6670761

CAP

15

6816530

SEAL

16

6816531

SEAL

17

6810274

SPACER

18

26GM10030

BOLT

19

6675551

CAP

20

6810224

BOTTLE

21

51DM16

NUT

22

HOSE NLA - Use 32'' (813 mm) of Ref. 23

23

6577822

HOSE bulk - sold per foot

24

6685048

EXCHANGER

24

6646678

CAP radiator

25

6675722

NUT

26

51DM10

NUT

27

6683810

FAN 8 blade

27

7117208

FAN 5 blade - ESA Only

28

6685261

COLLAR

28

7117205

SPACER ESA Only - sound requirement

29

7101041

PULLEY

29

7117204

PULLEY ESA Only - sound requirement

30

5HM44

CLAMP

31

6818124

HOSE

32

6818325

BELT

32

6815019

BELT ESA Only - sound requirement

33

6811407

HOSE

34

36K6

CAP

35

30H57

CLAMP

36

15KB0808

FITTING, HYD CONNECTOR

36

79K8

O RING 10

37

6818125

HOSE

38

60CM640

SCREW

38

60CM660

SCREW ESA Only - sound requirement
