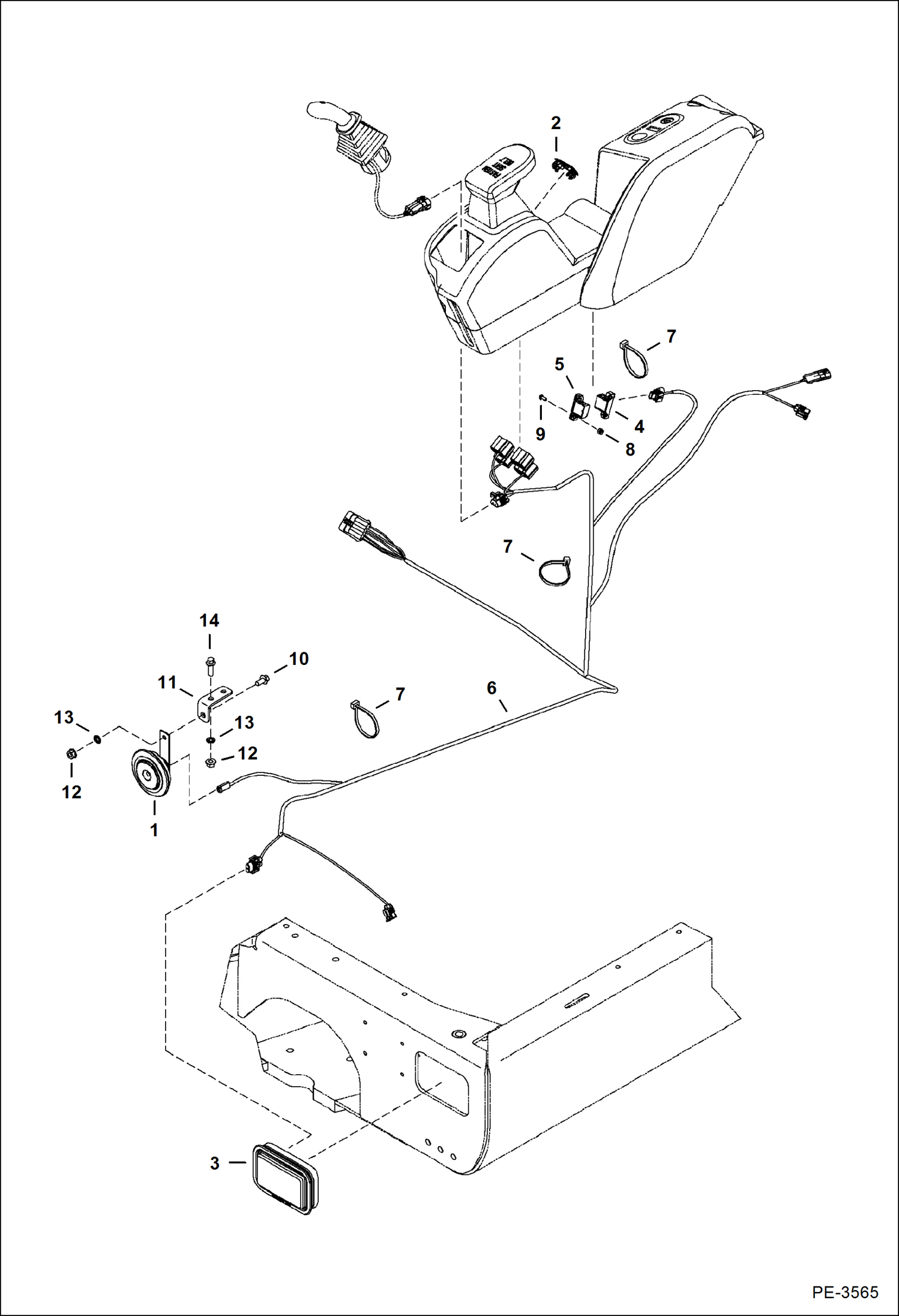

Запчасти Bobcat 337 ELECTRICAL (LH Console) ELECTRICAL SYSTEM

1

6691276

ALARM, HORN mounted W/bolt in horizontal position

2

6665314

PLUG

3

6676238

LIGHT assy

3

6667934

BULB

3

6676725

BEZEL

4

6680427

SENSOR lockout

5

6680428

SENSOR lockout

6

7102875

HARNESS,LH L.H. console

7

6624289

STRAP, TIE

8

50D8

NUT

9

87G808

SCREW

10

29CM816

SCREW

11

7135027

BRACKET

12

51DM8

NUT

13

10EM80

WASHER

14

29CM825

BOLT
