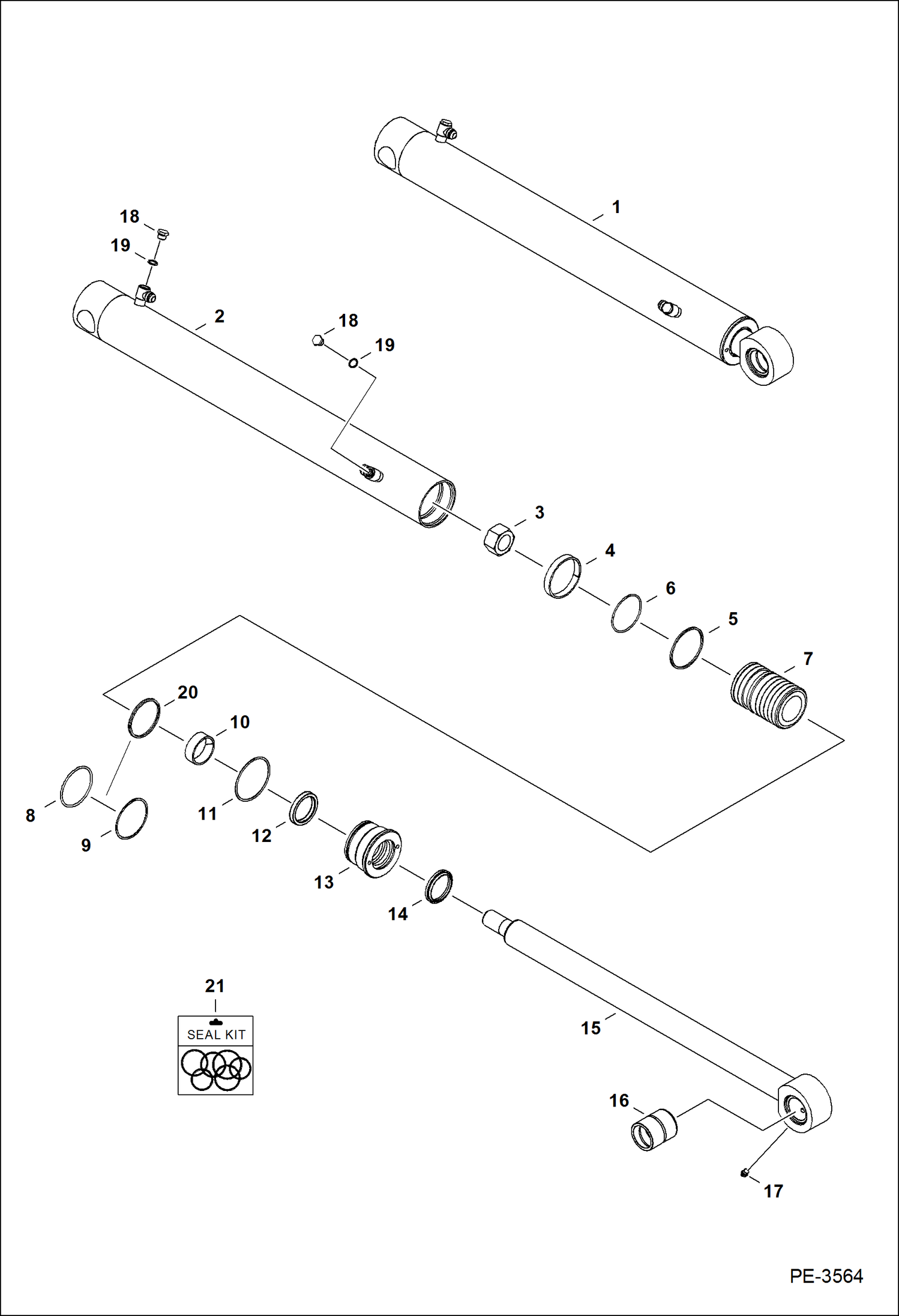

Запчасти Bobcat 337 SWING CYLINDER HYDRAULIC SYSTEM

1

7156128

CYLINDER, SWING Ref. 2-19 - Also Order (2) of 6669287 dust seal

2

6818259

HOUSING

3

6810540

NUT

4

7000777

RING, WEAR Was 6698179 - A

5

6513466

PISTON RG piston

6

25K30226

O RING 10

7

7147313

PISTON

8

58K234

O RING 10

9

73K234

BACK-UP RING

10

7000772

RING, WEAR Was 6698134 - A

11

82K236

O-RING

12

6667328

SEAL rod

13

6818158

HEAD

14

6686998

WIPER, ROD CYL

15

7147422

ROD Also Order Ref. 16, 17 & (2) of 6669287 dust seal

16

6815279

BUSHING wear

17

10H25

FITTING, GREASE 5 grease

18

6812171

PLUG W/Ref. 19

19

75K6

O-RING

20

7008354

SEAL, QUAD new design

21

7161903

KIT, SEAL Ref. 3-6, 10-12, 14, & 20 - Was 7156129 - A
