Запчасти Bobcat 337 BUCKET CYLINDER HYDRAULIC SYSTEM

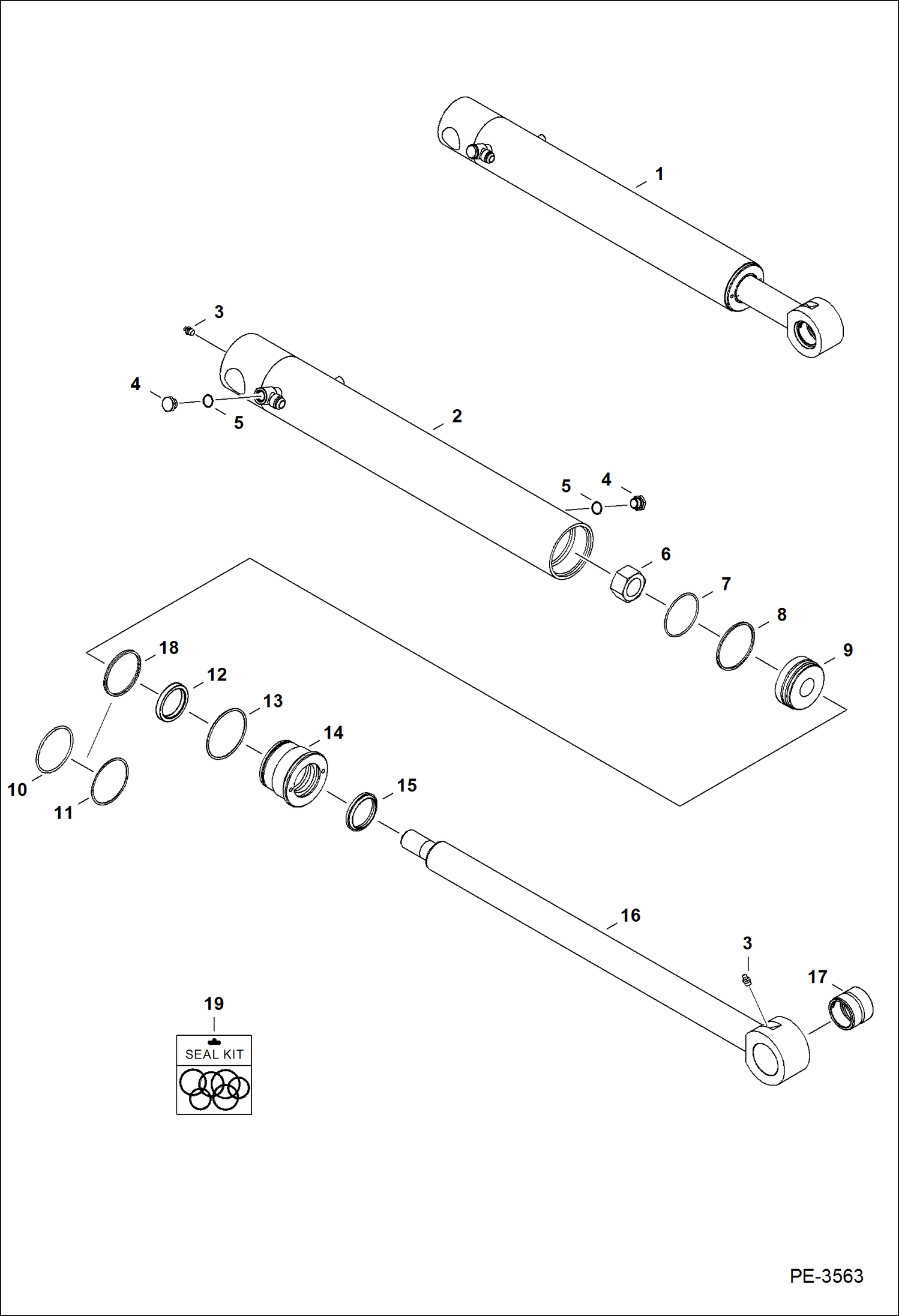

Схема запчастей Bobcat 337 - BUCKET CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7146680

CYLINDER Ref. 2-17 - Also Order (2) of 6669287 dust seal

2

6818256

HOUSING

3

10H25

FITTING, GREASE 5 grease

4

6816855

PLUG

5

75K7

O-RING

6

6810540

NUT

7

25K30226

O RING 10

8

6513466

PISTON RG piston

9

7147314

PISTON

10

58K234

O RING 10

11

73K234

BACK-UP RING

12

6667328

SEAL rod

13

82K236

O-RING

14

6810626

HEAD

15

6686998

WIPER, ROD CYL

16

7146681

ROD Also Order Ref. 3, 17 & (2) of 6669287 dust seal

17

6802371

BUSHING

18

7008354

SEAL, QUAD

19

7137966

SEAL KIT Ref. 6-8, 10-13 & 15

Выбрано товаров: 19
