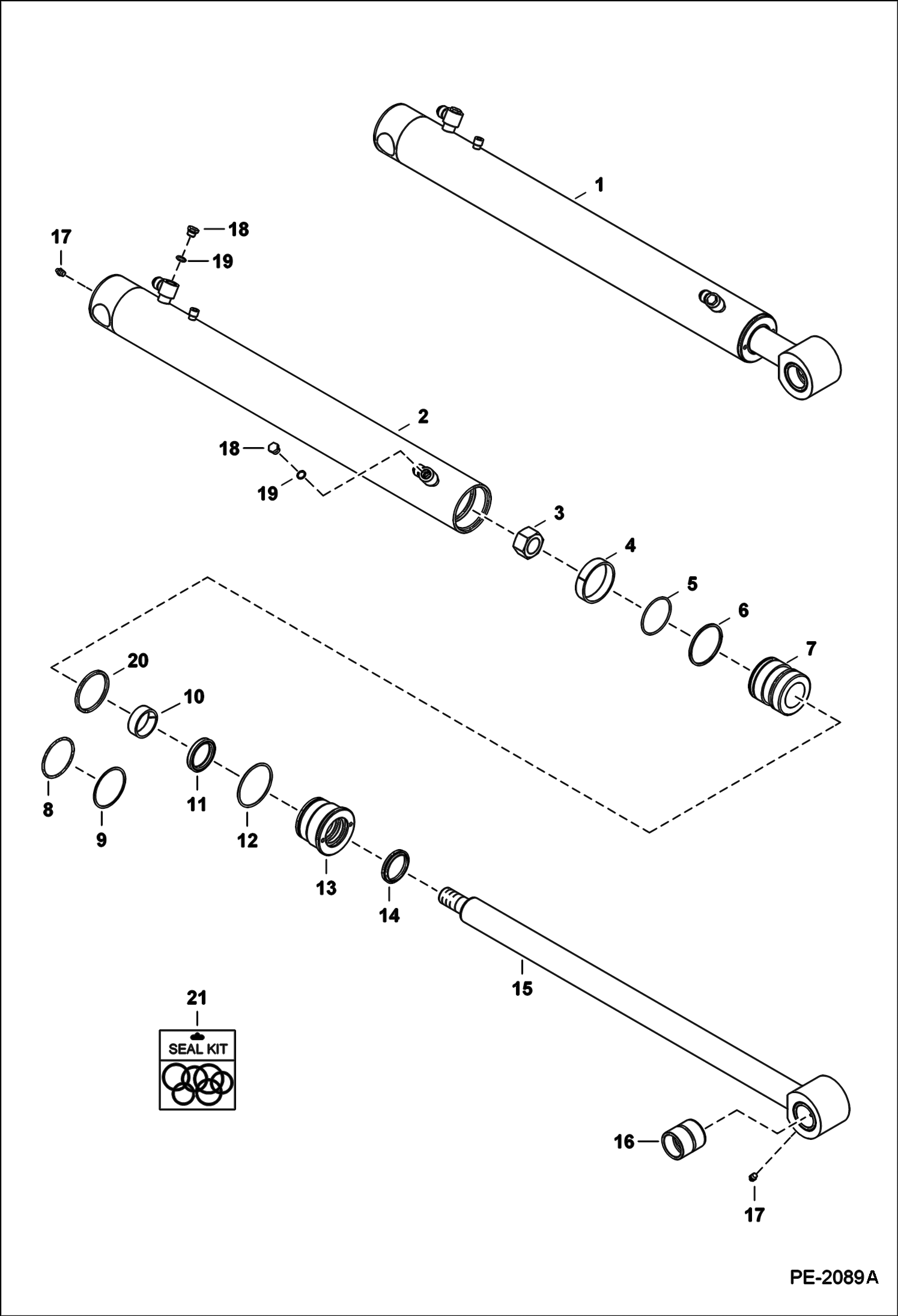

Запчасти Bobcat 337 ARM CYLINDER HYDRAULIC SYSTEM

1

7151990

CYLINDER, ASSY ARM 35 mm (1.375'') rod thread - Ref. 2-15 & 17-19 - Also Order Ref. 16

2

7151991

TUBE, ASSY For cylinder W/ 35 mm (1.375'') rod thread

3

7154049

NUT 35 mm (1.375'') thread

4

7001916

RING, WEAR 19,05 mm (.75'') wide

5

1530265

PISTON SEAL piston

6

25K30300

O RING 10

7

7151179

PISTON 96,27 mm (3.79'') long

8

O-RING NLA - Order Ref. 20 - Was 58K338 - B

9

RING NLA - back-up - Order Ref. 20 - Was 73K338 - B

10

7000773

RING, WEAR 19,05 mm (.75'') wide - Was 6698135 - A

11

6684409

SEAL rod

12

82K238

O-RING

13

6816999

HEAD

14

6686968

SEAL, WIPER ROD wiper

15

7151178

SHAFT, W/A 35 mm (1.375'') thread

16

6802372

BUSHING wear

17

10H25

FITTING, GREASE 5 grease

18

6816855

PLUG W/Ref. 19

19

79K7

O RING 10

20

7008353

SEAL, QUAD

21

KIT, SEAL NLA - For cylinder W/ 35 mm (1.375'') rod thread - Ref. 3-6, 8-12 & 14 - Order 7196903 seal kit - Was 7166583 - A

21

7196903

KIT, SEAL Ref. 3-6, 10-12, 14 & 20
