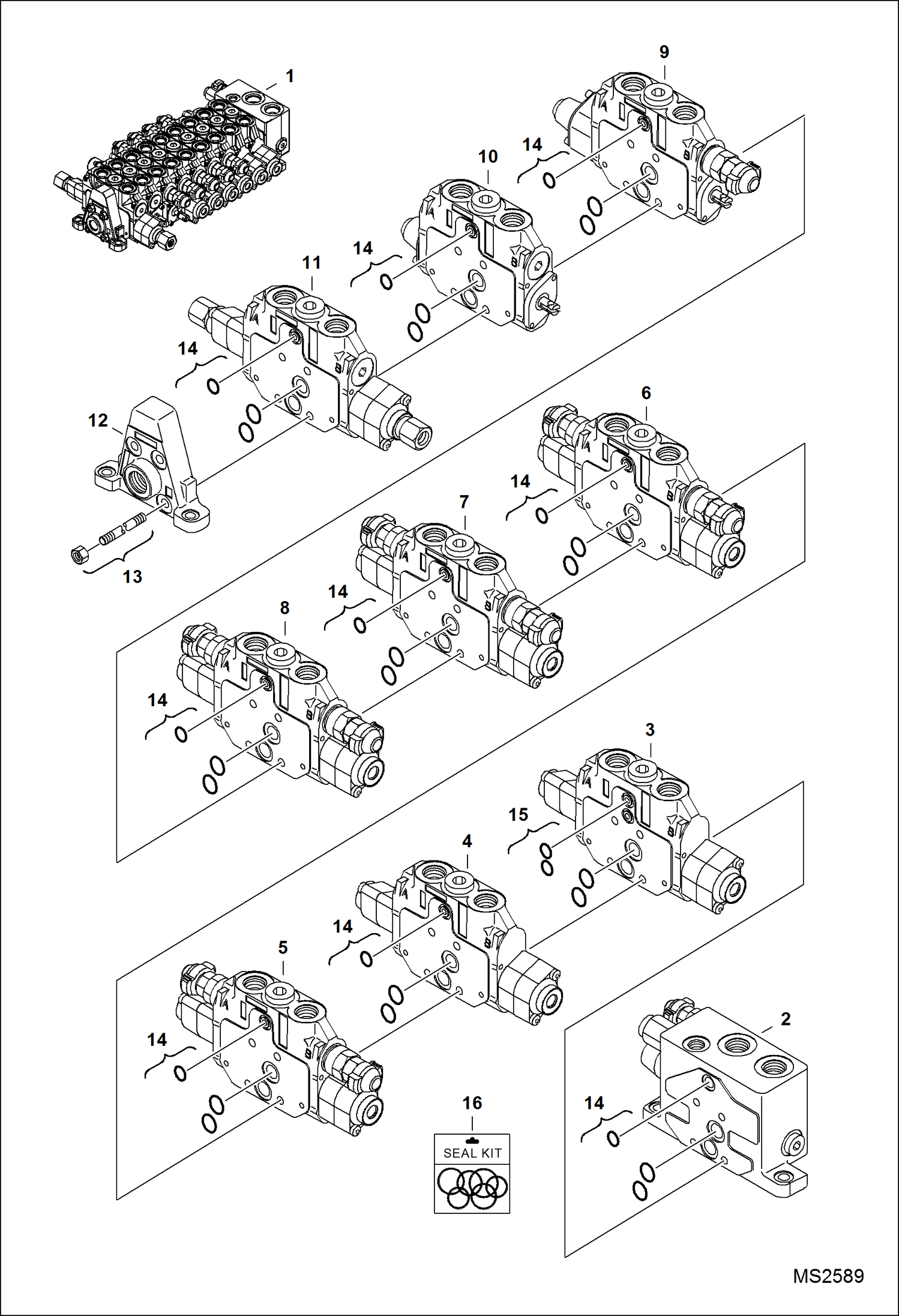

Запчасти Bobcat 337 CONTROL VALVE (Assembly) HYDRAULIC SYSTEM

1

6685646

VALVE, CONTOL Ref. 2-15

2

6685238

VALVE See Illustration VALVE SECTION/ B24438 inlet

3

6679923

SECTION, VALVE See Illustration CONTROL VALVE/ B27337 - left travel - Was 6686581 - A

4

6679924

SECTION, VALVE See Illustration CONTROL VALVE/ B19916 - right travel - Was 6686582 - A

5

6677454

VALVE See Illustration CONTROL VALVE/ B19912 aux

6

6682028

VALVE See Illustration CONTROL VALVE/ B26308 boom

7

6677456

VALVE See Illustration CONTROL VALVE/ B17129 arm

8

6677457

VALVE See Illustration CONTROL VALVE/ B17129A bucket - Was 6686585 - D

9

6686586

VALVE,BLADE See Illustration CONTROL VALVE/ B24439 blade

10

6677459

VALVE See Illustration CONTROL VALVE/ B19914 offset

11

6677460

VALVE See Illustration CONTROL VALVE/ B19915 slew

12

6677461

VALVE See Illustration VALVE SECTION/ B24743 outlet

13

6677476

TIE ROD KIT

14

6677467

KIT, SEAL

15

6677472

KIT,SEAL

16

6677701

SEAL KIT complete - includes (9) 6677470 seal kits & (1) 6677472 seal kits - Was 6686591 - D
