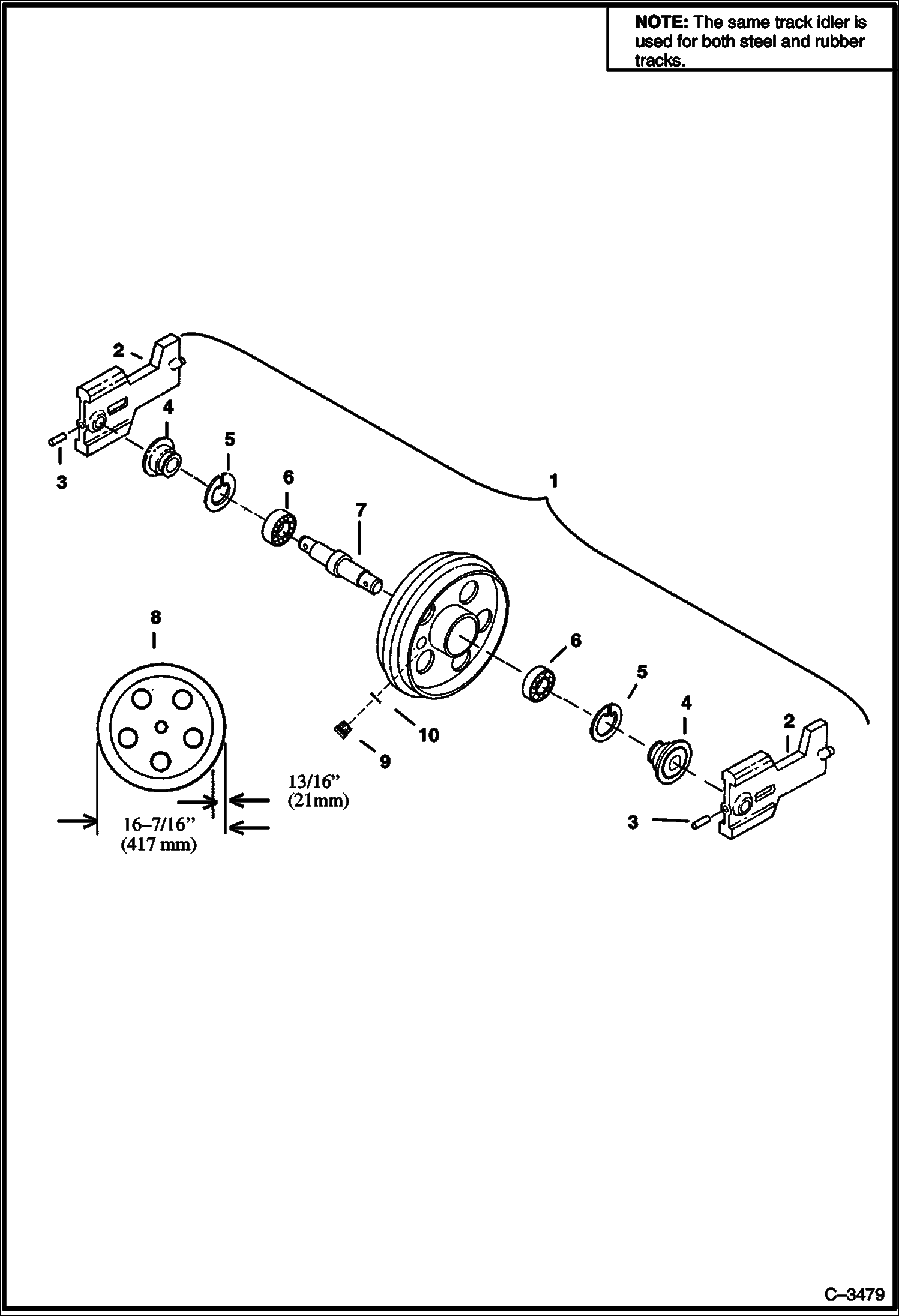

Запчасти Bobcat 337 FRONT IDLER (Modified)(Unsealed Bearings & Oil Fill Plug) UNDERCARRIAGE

1

IDLER ASSY See Illustration FRONT IDLER/ B22504 NLA - assy - Ref. 2-8 - Order 6815125 idler assy - Was 6807922 - A

2

6627777

BLOCK

3

2JM1085

ROLL PIN

4

SEAL NLA - Order 6679882 - Was 6725083 - A

5

7JM80

SNAP RING

6

6672952

BEARING

7

6805680

SHAFT

8

IDLER NLA - Order 6815126 & seal 6679882 - Was 6807923 - A

9

90K3

PLUG W/Ref.10 - Was 90KV3 - D

10

95K4

O-RING
