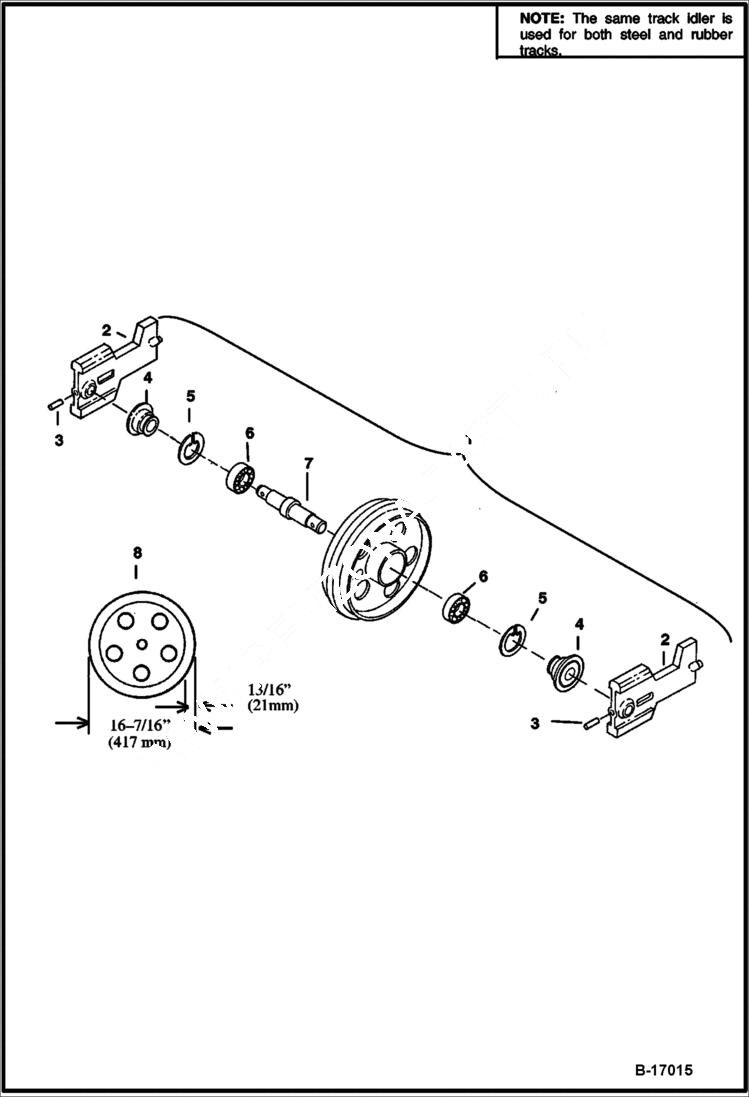

Запчасти Bobcat 337 FRONT IDLER (Original)(Unsealed Bearings) UNDERCARRIAGE

1

IDLER ASSY See Illustration FRONT IDLER/ B22504 NLA - assy - Ref. 2-8 - Order 6815125 - Was 6627775 - A

2

6627777

BLOCK

3

2JM1085

ROLL PIN

4

6717811

SEAL Was 6667991 - A

5

7JM80

SNAP RING

6

6672952

BEARING Use W/2 Bearing Idler Shaft - Ref. 7 - Later Style

7

6805680

SHAFT

8

IDLER NLA - Order 6815125 idler assy - Was 6627780 - A

8

IDLER NLA - Order 6815125 idler assy - Was 6805678 - A
