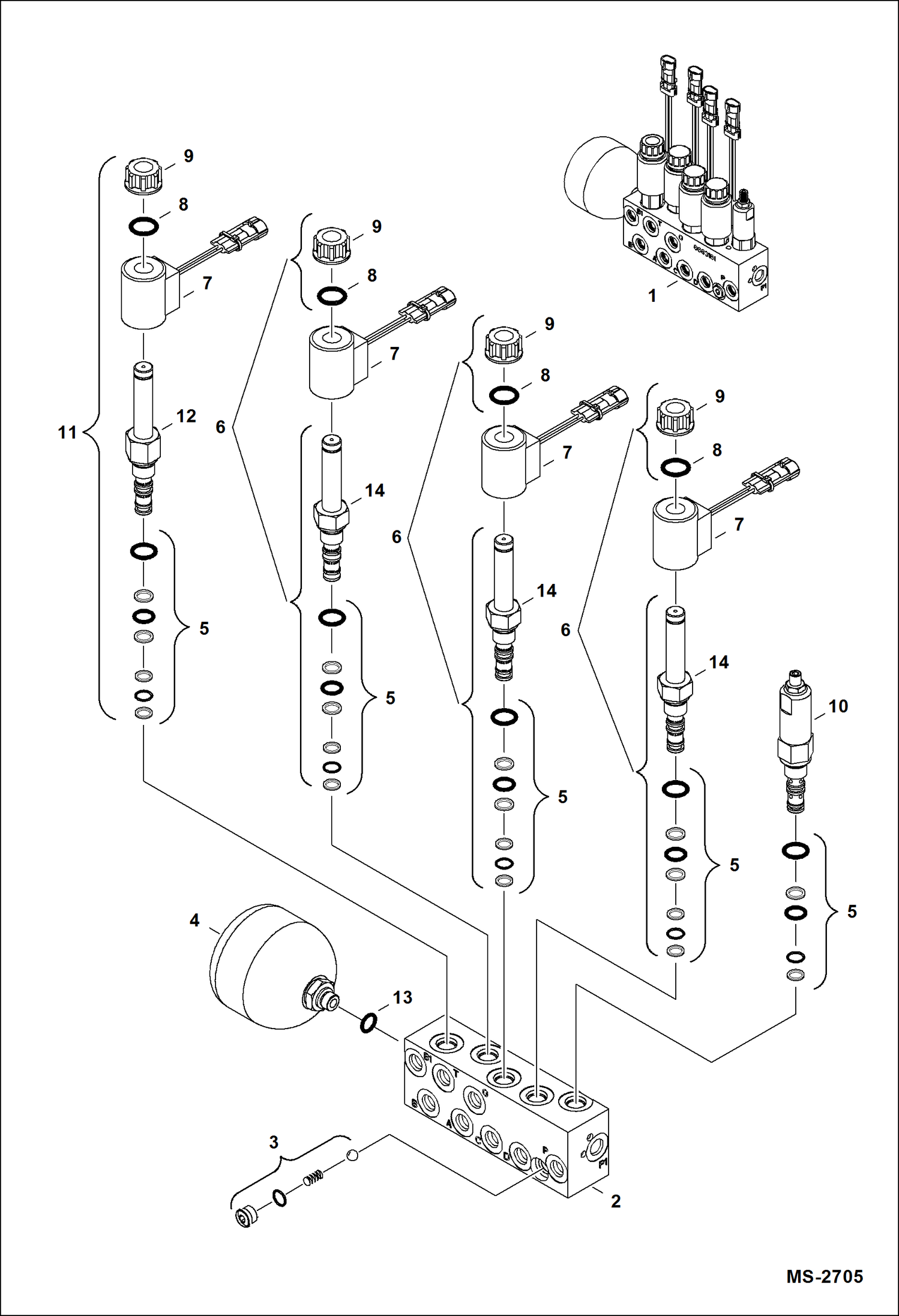

Запчасти Bobcat 337 MANIFOLD ASSY (W/ Angle Blade Option) HYDRAULIC SYSTEM

1

7000441

MANIFOLD, HYD ASSY Ref. 2-14

2

BLOCK NSS - Order Ref. 1

3

6678990

VALVE assy

4

6685832

ACCUMULATOR

5

6679078

SEAL KIT

6

6679032

VALVE W/Ref. 5, 8, 9 & 14

7

6679074

COIL

8

6679684

O-RING

9

6679075

NUT

10

6685284

VALVE

11

6683163

VALVE W/Ref. 5, 8, 9 & 12 - assy

12

6683162

VALVE

13

79K6

O RING 10

14

STEM NSS - Order Ref. 6
