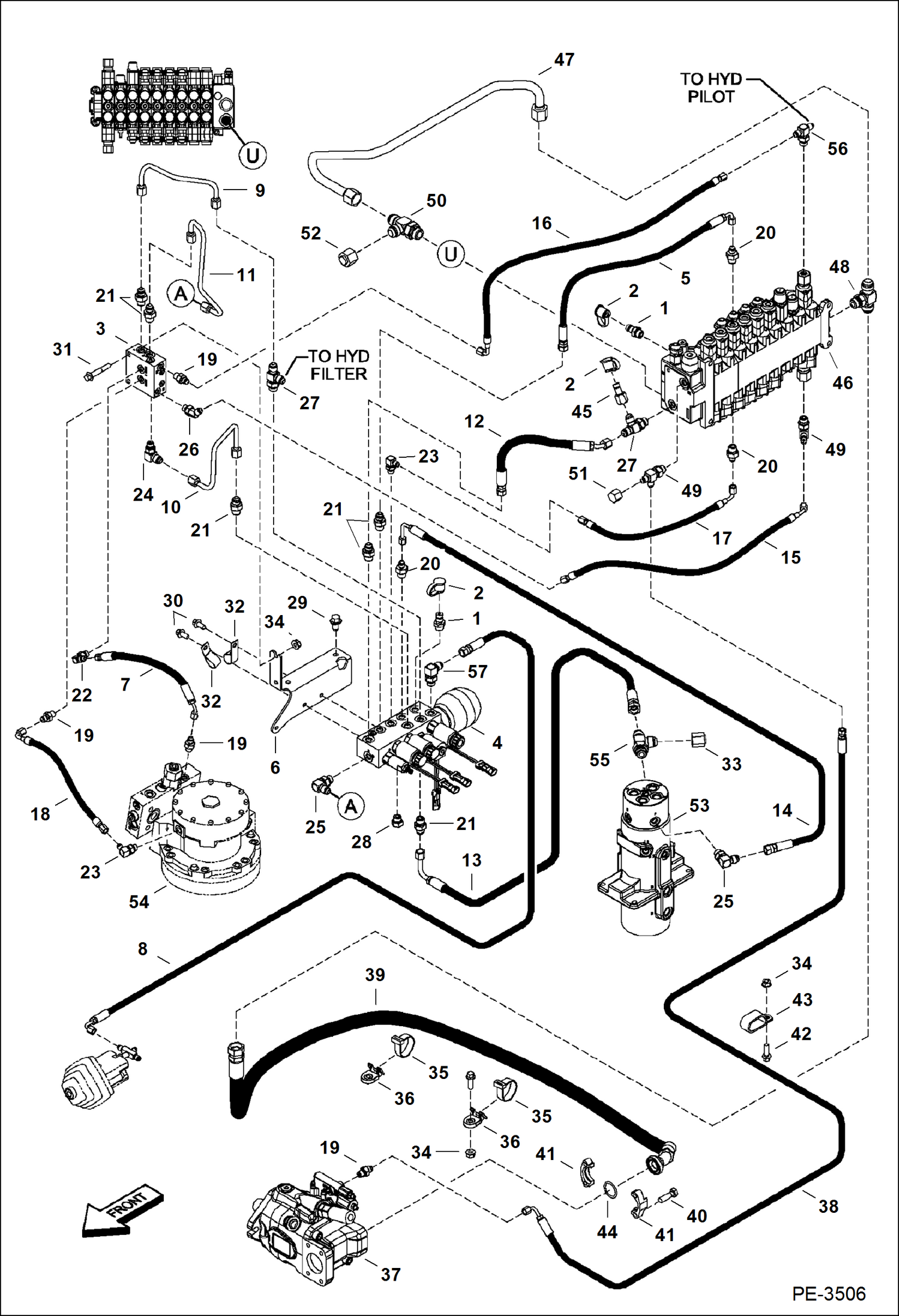

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

1

6630168

COUPLER

2

6630367

CAP

3

7010002

VALVE, SEQUENCE DUAL See Illustration SEQUENCE VALVE/ TS1901 Was 6673053 - A

4

6685162

MANIFOLD See Illustration MANIFOLD ASSY/ MS1401 W/O angle blade option

4

7000441

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ MS2705 W/ angle blade option

5

6806999

HOSE

6

6807263

MOUNT

7

6807467

HOSE

8

6807476

HOSE

8

6806796

HOSE

9

6811158

TUBELINE

10

6812966

TUBELINE

11

6817051

TUBELINE

12

6818107

HOSE

13

7105258

HOSE

14

7105259

HOSE

15

7106607

HOSE

16

7107666

HOSE

17

7125143

HOSE

18

7125144

HOSE

19

15KB0404

FTG HYD S Connector

19

79K4

O RING 10

20

15KB0406

FTG HYD S CONNECTOR

20

79K6

O RING 10

21

15KB0606

FITTING, HYD CONNECTOR

21

79K6

O RING 10

22

17KB0404

FTG HYD ELBOW 90

22

79K4

O RING 10

23

17KB0406

FITTING, HYD ELBOW

23

79K6

O RING 10

24

17KB0604

ELBOW UNION

24

79K4

O RING 10

25

17KB0606

FITTING

25

79K6

O RING 10

26

18KB0404

FTG HYD ELBOW 45

26

79K4

O RING 10

27

21KB0606

FTG HYD STRAIGHT TEE

27

79K6

O RING 10

28

24K5

PLUG

28

79K6

O RING 10

29

26GM10020

BOLT

30

29CM816

SCREW

31

29CM850

SCREW

32

30HJ512

CLAMP

33

36K6

CAP

34

43DM8

NUT

35

6678669

STRAP

36

6684641

MOUNT

37

6698417

PUMP, PISTON See Illustration HYDRAULIC PISTON PUMP/ MS2241 Was 6686577 - A

38

6818108

HOSE

39

6818109

HOSE

40

17C620

BOLT

41

19J16

FLANGE

42

29CM825

BOLT

43

31H42

CLIP

44

58K219

O RING 10

45

6661753

PLUG

46

6685646

VALVE, CONTOL See Illustration CONTROL VALVE/ MS2589

47

6817054

TUBELINE

48

19KB1210

FITTING, HYD TEE

48

79K10

O RING 10

49

21KB0406

FTG HYD STRAIGHT TEE

49

79K6

O RING 10

50

21KB1212

FITTING, HYD TEE

50

79K12

O RING 10

51

36K3

CAP

52

36K8

CAP

53

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906 - assy

54

6689390

MOTOR, HYD SLEW See Illustration SWING MOTOR/ MS2587

55

21KB0808

FTG HYD STRAIGHT TEE

55

79K8

O RING 10

56

19KB0406

FITTING, HYD TEE

56

79K6

O RING 10

57

17KB0606

FITTING

57

17KB0406

FITTING, HYD ELBOW
