Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

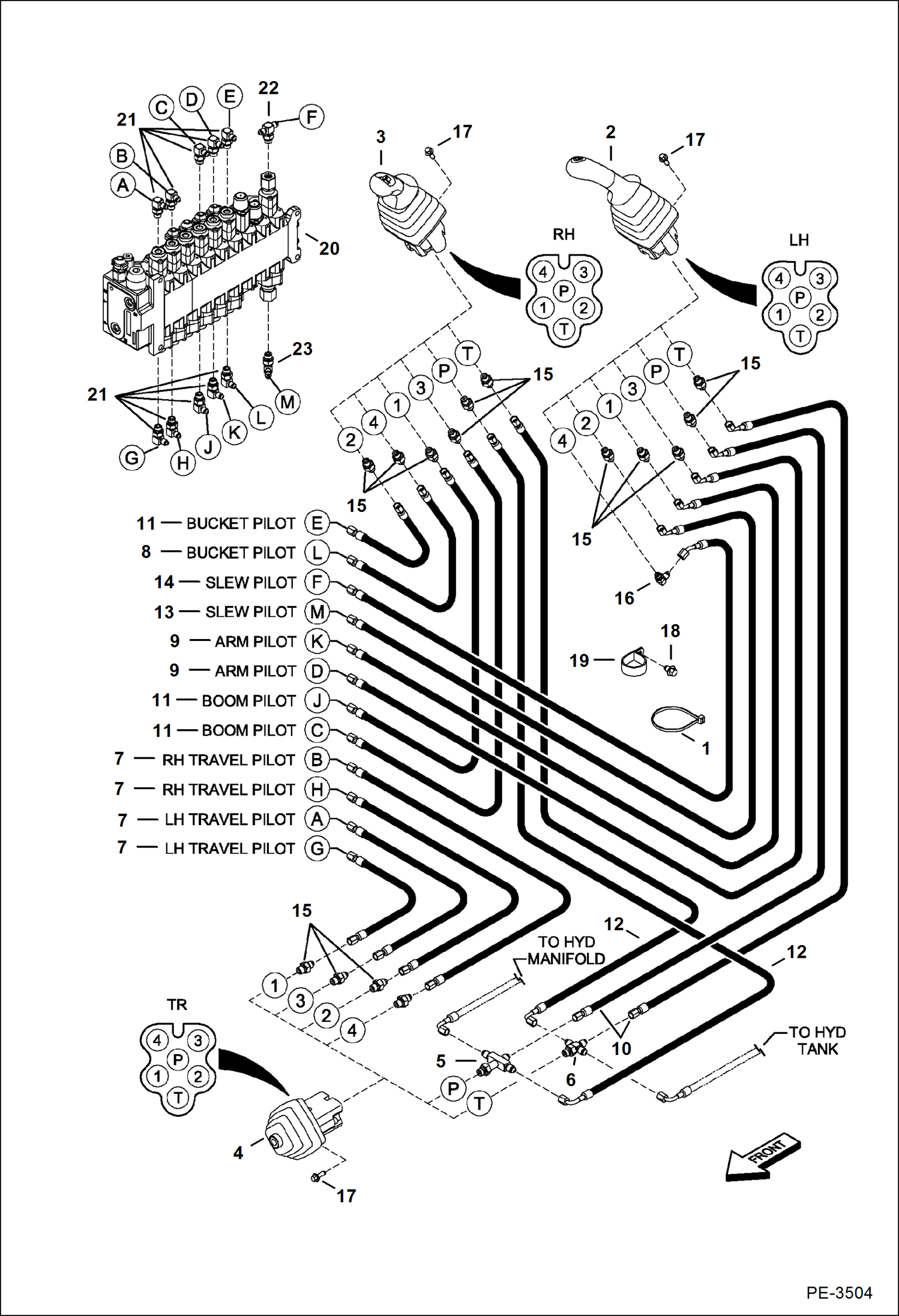

Схема запчастей Bobcat 337 - HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106598

HOSE

8

7106611

HOSE

9

7106612

HOSE

10

7106613

HOSE

11

7106615

HOSE

12

7107638

HOSE

13

7107664

HOSE

14

7107665

HOSE

15

15KB0404

FTG HYD S Connector

15

79K4

O RING 10

16

17KB0404

FTG HYD ELBOW 90

16

79K4

O RING 10

17

26GM6020

SCREW

18

26GM8013

BOLT

19

30H85

CLAMP

20

6685646

VALVE, CONTOL See Illustration CONTROL VALVE/ MS2589

21

17KB0406

FITTING, HYD ELBOW

21

79K6

O RING 10

22

19KB0406

FITTING, HYD TEE

22

79K6

O RING 10

23

21KB0406

FTG HYD STRAIGHT TEE

23

79K6

O RING 10

Выбрано товаров: 30
