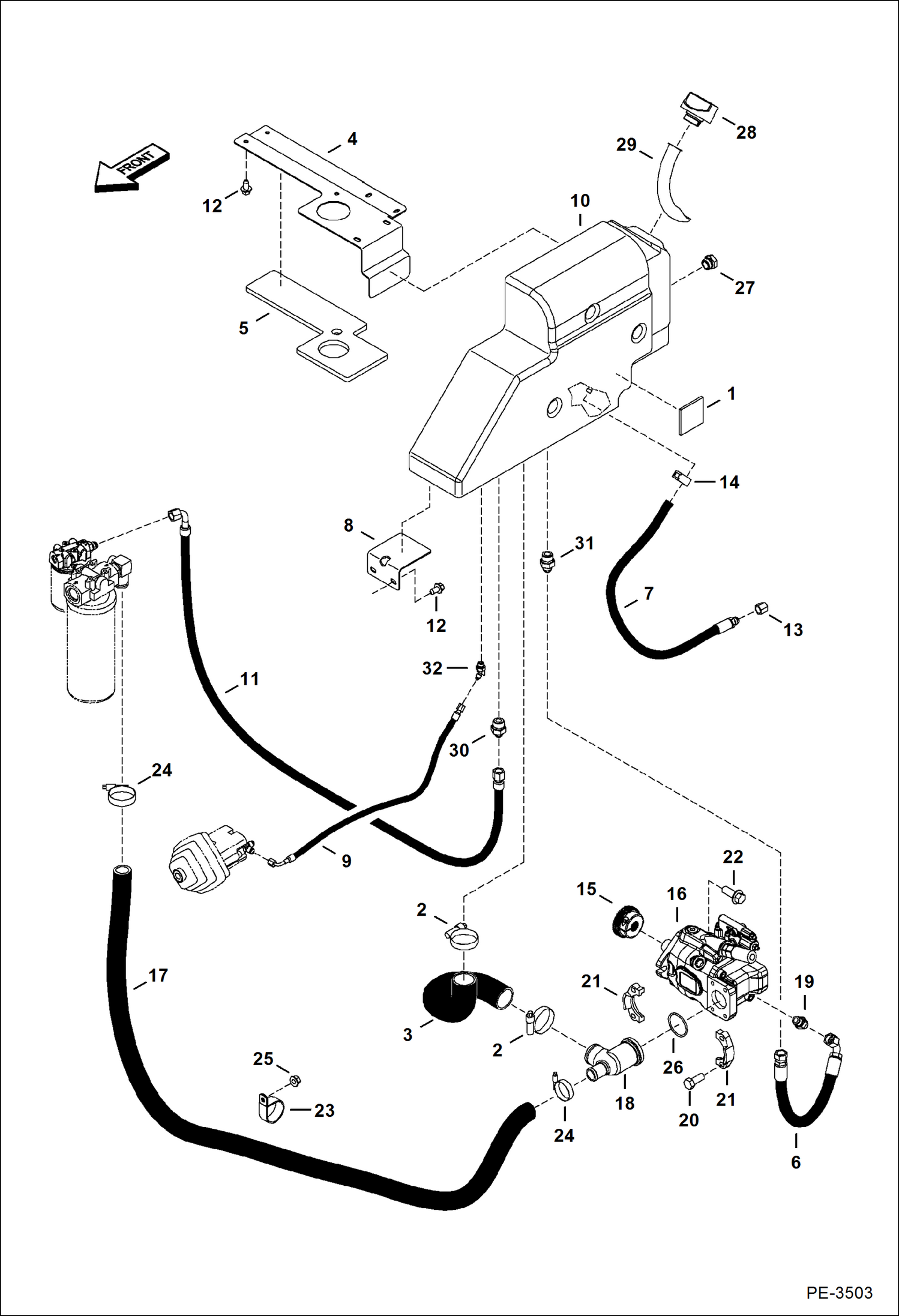

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Tank & Pump) HYDRAULIC SYSTEM

1

6578278

PAD

2

42HC250

CLAMP Was 6671626 - A

3

6806634

HOSE

4

6806756

BRACKET

5

6807896

INSULATION

6

6809326

HOSE

7

6812176

HOSE

8

7101356

MOUNT

9

7107666

HOSE

10

6813826

TANK

11

7125148

HOSE

12

26GM10020

BOLT

13

36K6

CAP

14

5HM20

CLAMP

15

6675547

COUPLER, HUB

16

6698417

PUMP, PISTON See Illustration HYDRAULIC PISTON PUMP/ MS2241 Was 6686577 - A

17

HOSE Order 6673825 bulk 70''

18

7143353

MANIFOLD,PUMP

19

15KB1010

FITTING, HYD CONNECTOR

19

79K10

O RING 10

20

17C820

BOLT

21

19J32

CLAMP

22

29CM1435

SCREW

23

30H85

CLAMP

24

42HC200

CLAMP

25

43DM10

NUT

26

58K228

O RING 10

27

6665915

GAUGE

28

6692836

CAP, HYDRAULIC TANK

29

7134222

SCREEN

30

15KB0812

FITTING, HYD CONNECTOR

30

79K12

O RING 10

31

15KB1012

FITTING, HYD CONNECTOR

31

79K12

O RING 10

32

18KB0406

FITTING, HYD ELBOW

32

79K6

O RING 10
