Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Cooler/Filter & Direct to Tank Option) HYDRAULIC SYSTEM

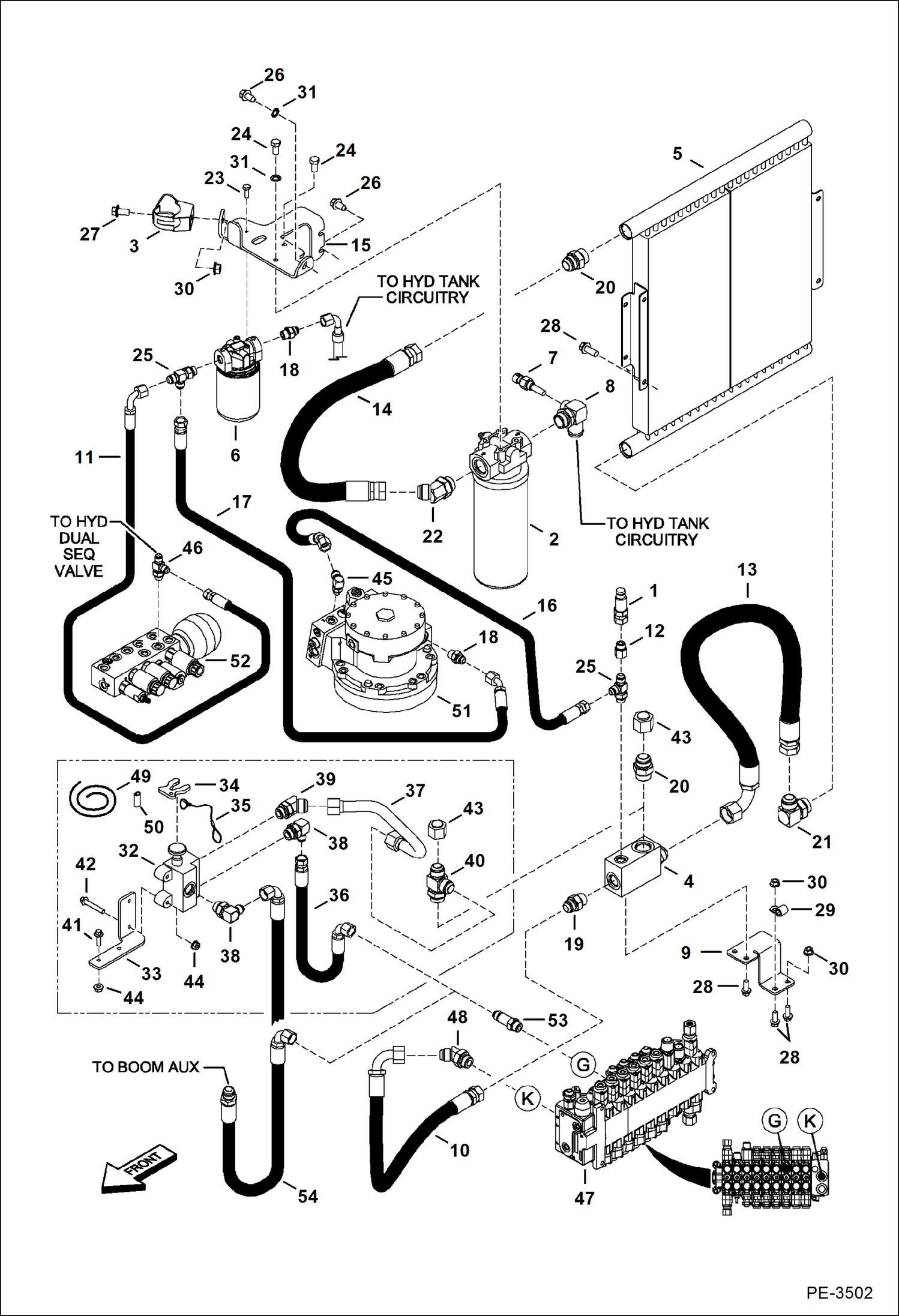

Схема запчастей Bobcat 337 - HYDRAULIC CIRCUITRY (Cooler/Filter & Direct to Tank Option) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667806

COUPLER

2

6675561

FILTER See Illustration HYDROSTATIC OIL FILTER/ NA1844

2

6670207

FILTER element

3

6676945

MOUNT

4

6681586

VALVE pressure build-up

4

6681968

SPRING

4

6681969

POPPET

4

6676044

ADAPTER

5

6684366

EXCHANGER

6

6686217

FILTER ASSY

6

6516722

FILTER

7

6718417

SENDER hyd temp

8

6806867

ADAPTER

8

79K16

O RING 10

9

6807350

MOUNT

10

6809989

HOSE

11

6809993

HOSE

12

6812828

ADAPTER

12

79K8

O RING 10

13

6814402

HOSE

14

6814403

HOSE

15

7114493

MOUNT FILTER

16

7125145

HOSE

17

7125146

HOSE

18

15KB0808

FITTING, HYD CONNECTOR

18

79K8

O RING 10

19

15KB1212

FITTING, HYD CONNECTOR

19

79K12

O RING 10

20

15KB1616

FITTING, HYD CONNECTOR

20

79K16

O RING 10

21

17KB1616

FITTING, HYD ELBOW

21

79K16

O RING 10

22

18KB1616

FITTING, HYD ELBOW

22

79K16

O RING 10

23

17C412

BOLT 5

24

17C612

BOLT 5

25

21KB0808

FTG HYD STRAIGHT TEE

25

79K8

O RING 10

26

26GM10020

BOLT

27

29CM1020

BOLT

28

29CM1025

BOLT

29

30H35

CLAMP 10

30

43DM10

NUT

31

6E6

WASHER

32

6660267

VALVE See Illustration SELECTOR VALVE/ B13660 - For Direct to Tank

33

6807450

BRACKET

34

6808717

CLIP

35

WIRE ROPE NLA - 14'' (356 mm) long - Order Ref. 50 & 51

36

6809326

HOSE

37

6812967

TUBE

38

17KB1012

FITTING, HYD ELBOW

38

79K12

O RING 10

39

18KB1612

FITTING, HYD ELBOW

39

79K12

O RING 10

40

21KB1616

FITTING, HYD TEE

40

79K16

O RING 10

41

29CM825

BOLT

42

29CM850

SCREW

43

36K10

CAP

44

43DM8

NUT

45

17KB0806

FITTING, HYD ELBOW

45

79K6

O RING 10

46

21KB0606

FTG HYD STRAIGHT TEE

46

79K6

O RING 10

47

6685646

VALVE, CONTOL

48

18KB1212

FITTING, HYD ELBOW

48

79K12

O RING 10

49

6558309

WIRE ROPE bulk - sold per foot

50

6558310

SLEEVE

51

6689390

MOTOR, HYD SLEW See Illustration SWING MOTOR/ MS2587

52

6685162

MANIFOLD See Illustration MANIFOLD ASSY/ MS1401 W/O angle blade option

52

7000441

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ MS2705 W/ angle blade option

53

16KB1008

FITTING, HYD ELBOW

53

79K8

O RING 10

54

6807460

HOSE

Выбрано товаров: 75
