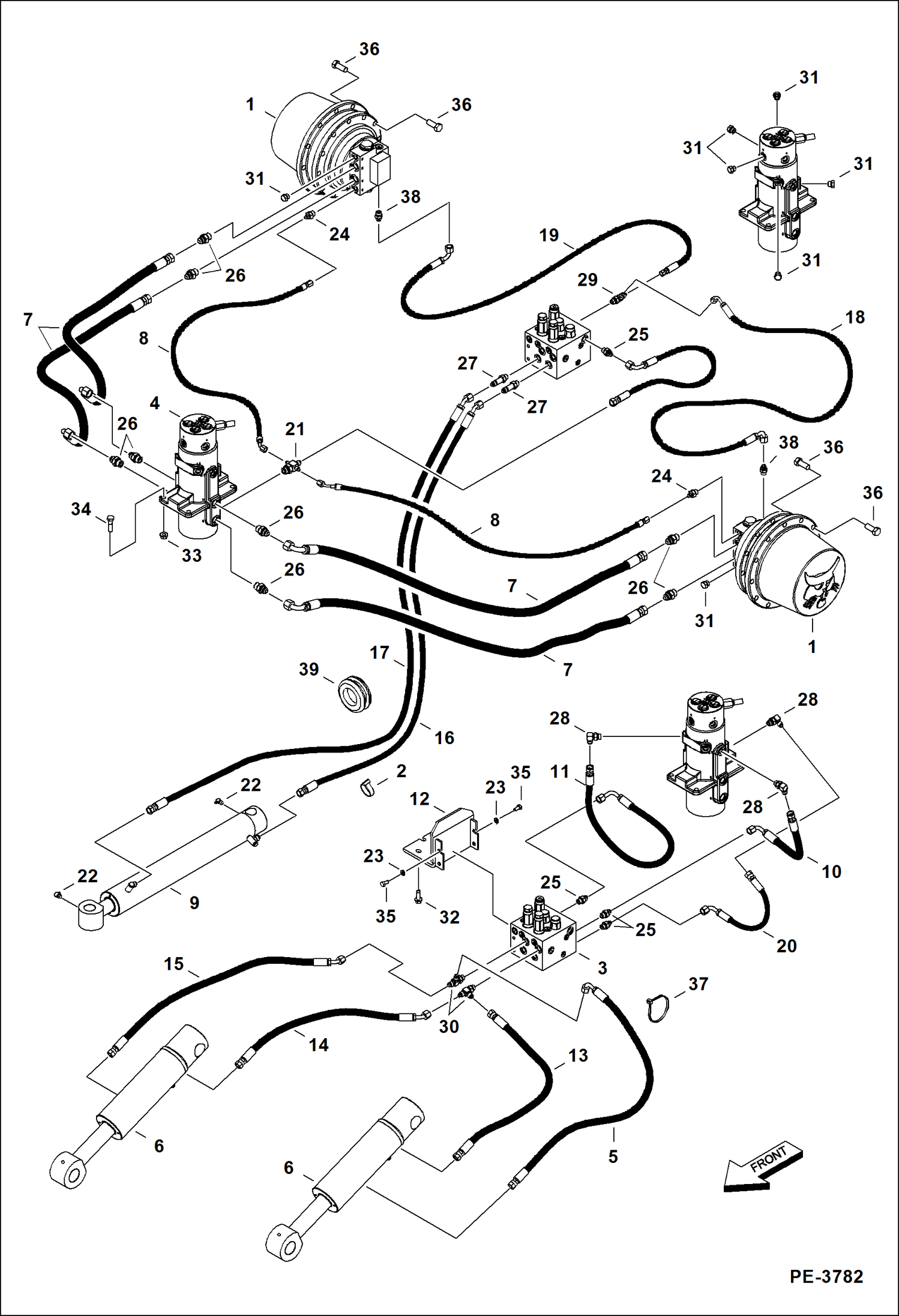

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Lower)(W/Angle Blade Option) HYDRAULIC SYSTEM

1

6668730

MOTOR See Illustration TRAVEL MOTOR/ D2403

2

6678669

STRAP

3

6691716

VALVE See Illustration ANGLE BLADE VALVE/ MS2585

4

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906

5

6814832

HOSE

6

6815953

CYLINDER See Illustration BLADE CYLINDER/ PE3652

7

7101091

HOSE

8

7106592

HOSE

9

7134017

CYLINDER See Illustration ANGLE BLADE CYLINDER/ PE3358

10

7139109

HOSE

11

7139110

HOSE

12

7157389

MOUNT, VALVE

13

7159150

HOSE, HYD ASSY

14

7159151

HOSE, HYD ASSY

15

7159152

HOSE, HYD ASSY

16

7159153

HOSE, HYD ASSY

17

7159154

HOSE, HYD ASSY

18

7159155

HOSE, HYD ASSY

19

7159156

HOSE, HYD ASSY

20

7159203

HOSE, HYD ASSY

21

7159205

TEE

21

79K8

O RING 10

22

12H15

FITTING, GREASE 5

23

15EM80

WASHER

24

15KB0406

FTG HYD S CONNECTOR

24

79K6

O RING 10

25

15KB0606

FITTING, HYD CONNECTOR

25

79K6

O RING 10

26

15KB0808

FITTING, HYD CONNECTOR

26

79K8

O RING 10

27

16KB0606

FTG HYD L CONNECTOR

27

79K6

O RING 10

28

17KB0606

FITTING

28

79K6

O RING 10

29

21KB0406

FTG HYD STRAIGHT TEE

29

79K6

O RING 10

30

21KB0606

FTG HYD STRAIGHT TEE

30

79K6

O RING 10

31

24K5

PLUG

31

79K6

O RING 10

32

26GM10030

BOLT

33

43DM10

NUT

34

53CM1040

SCREW

35

55CM816

BOLT

36

55CM1435

SCREW

37

6624289

STRAP, TIE

38

ADAPTOR See Illustration TRAVEL MOTOR/ D2403

39

7165950

GROMMET
