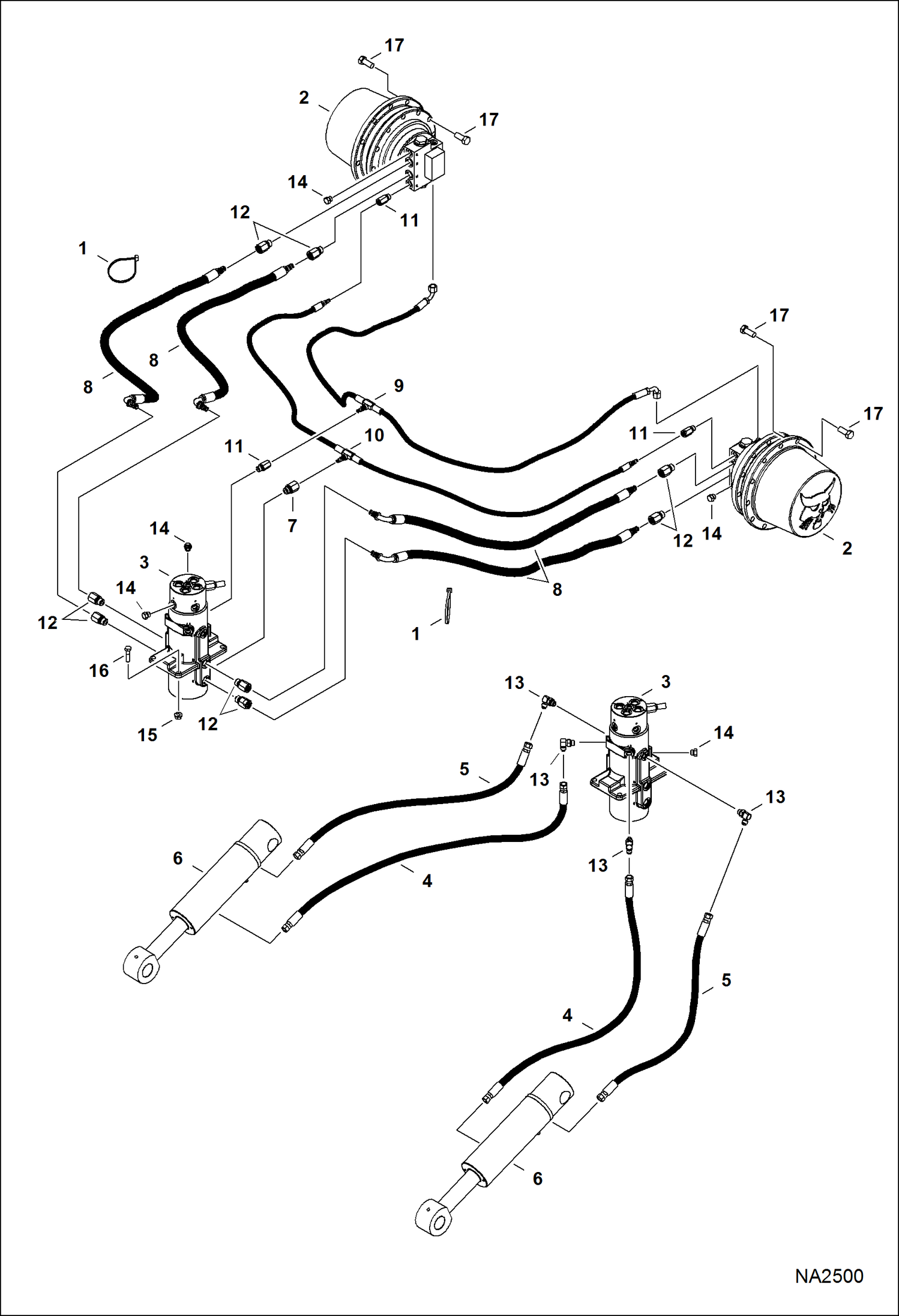

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Lower)(W/O Angle Blade) (S/N AAC811645 & Above, A9W711152 & Above, A9W911262 & Above) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6668730

MOTOR See Illustration TRAVEL MOTOR/ D2403

3

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906

4

6814831

HOSE

5

6814832

HOSE

6

CYLINDER, BLADE See Illustration BLADE CYLINDER/ PE3652

7

7008930

FITTING, HYD CONNECTOR

7

79K8

O RING 10

8

7157928

HOSE, HYD ASSY Also Order Ref. 12

9

7173030

HOSE, HYD ASSY Also Order Ref. 11

10

7173031

HOSE, HYD ASSY Also Order Ref. 7 & 11

11

15HB0406

FITTING, HYD CONNECTOR Also Order hose

11

78K6

O'RING

12

15HB0808

FITTING Also Order hose

12

78K8

O RING

13

17KB0606

FITTING

13

79K6

O RING 10

14

24K5

PLUG

14

79K6

O RING 10

15

43DM10

NUT

16

53CM1040

SCREW

17

55CM1435

SCREW
