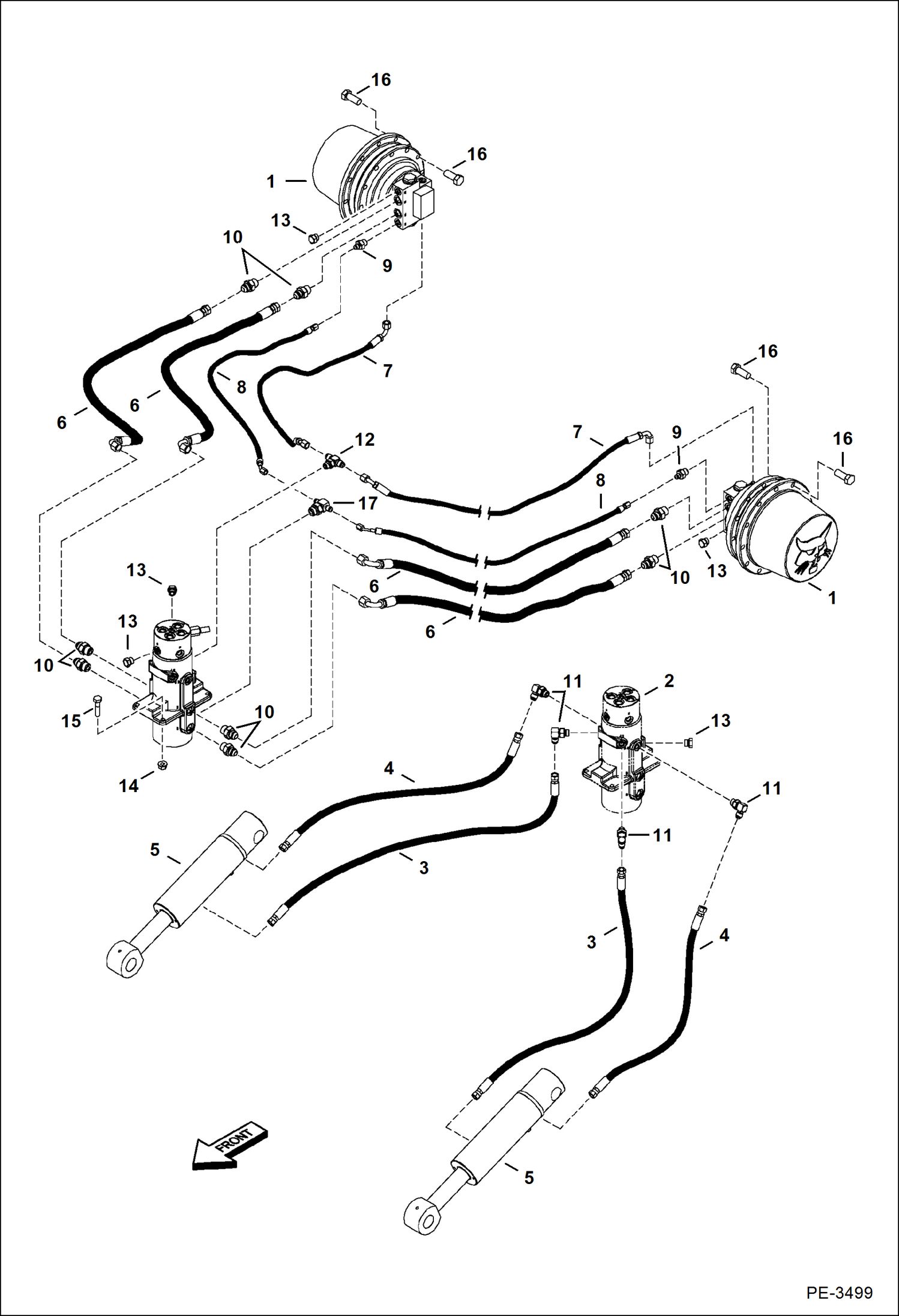

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Lower)(W/O Angle Blade Option) (S/N AAC811001 - 11644, A9W711001 - 11151, A9W911001 - 11261) HYDRAULIC SYSTEM

1

6668730

MOTOR See Illustration TRAVEL MOTOR/ D2403

2

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906 - assy

3

6814831

HOSE

4

6814832

HOSE

5

6815953

CYLINDER See Illustration BLADE CYLINDER/ PE3652

6

7101091

HOSE

7

7105228

HOSE

8

7106592

HOSE

9

15KB0406

FTG HYD S CONNECTOR

9

79K6

O RING 10

10

15KB0808

FITTING, HYD CONNECTOR

10

79K8

O RING 10

11

17KB0606

FITTING

11

79K6

O RING 10

12

19KB0606

TEE

12

79K6

O RING 10

13

24K5

PLUG

13

79K6

O RING 10

14

43DM10

NUT

15

53CM1040

SCREW

16

55CM1435

SCREW

17

19KB0408

FITTING, HYD TEE
