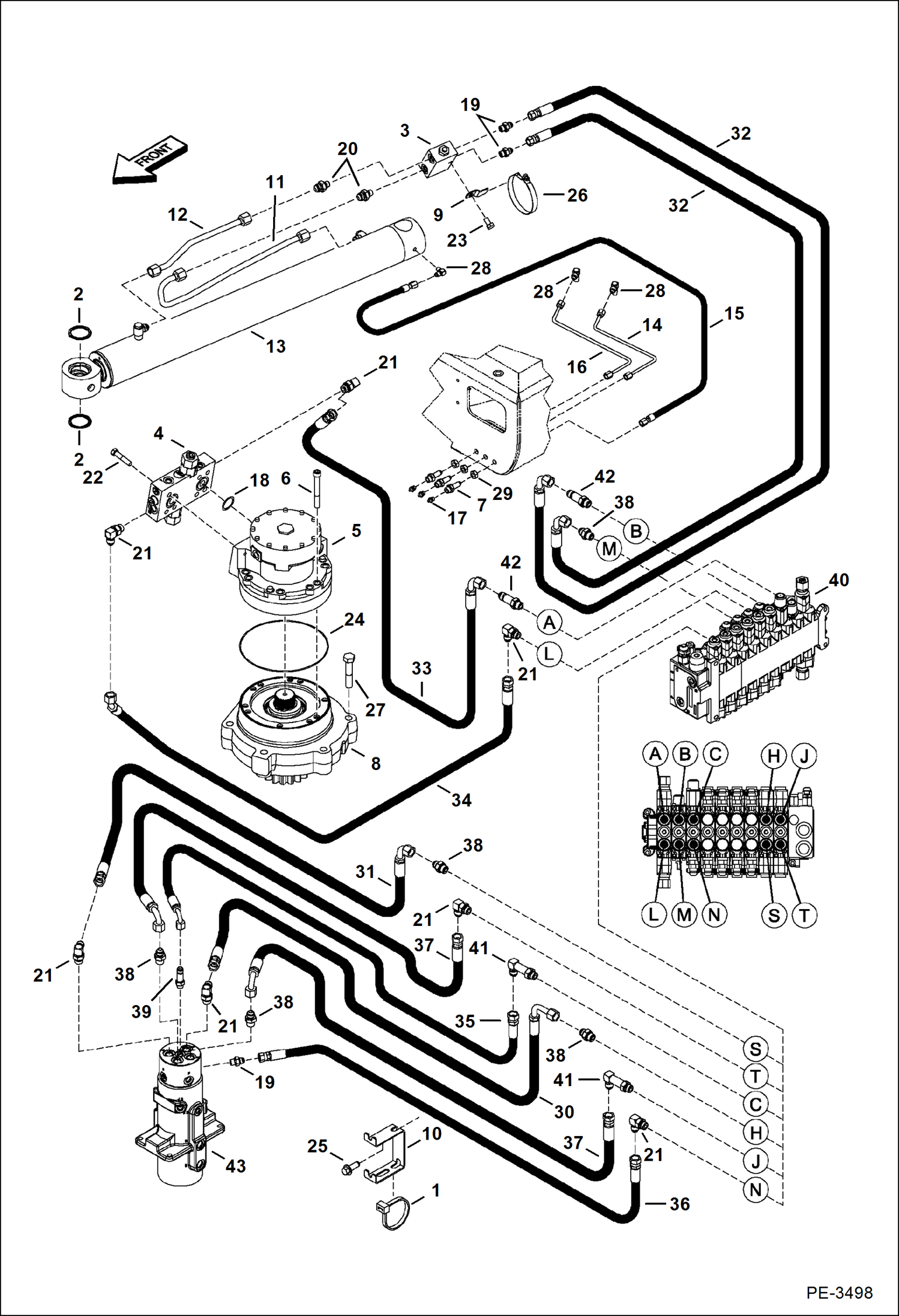

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6669287

SEAL

3

6676167

VALVE See Illustration LOCK VALVE/ C3475 - Assy.

4

6678788

VALVE See Illustration RELIEF/BRAKE VALVE/ B16419

5

6689390

MOTOR, HYD SLEW See Illustration SWING MOTOR/ MS2587

6

6717806

BOLT

7

6807184

FITTING

8

6807330

MOUNT ASSY See Illustration MOUNT ASSY/ TS1815

9

6807345

MOUNT

10

6807421

BRACKET

11

6817052

TUBELINE

12

6817053

TUBELINE

13

7156128

CYLINDER, SWING Also Order Ref. 2

14

7102692

TUBE

15

7106590

HOSE

16

7126408

TUBELINE

17

10H25

FITTING, GREASE 5

18

6674900

O-RING

19

15KB0606

FITTING, HYD CONNECTOR

19

79K6

O RING 10

20

15KB0806

FITTING, HYD CONNECTOR

20

79K6

O RING 10

21

17KB0808

FITTING, HYD ELBOW

21

79K8

O RING 10

22

17C732

BOLT

23

1CM1020

BOLT

24

25K30816

O-RING Was 25K30812 - B,D

25

26GM10030

BOLT

26

42H56

CLAMP

27

55CM1680

SCREW

28

83F3

ELBOW 5

29

86F3

LOCKNUT

30

6818102

HOSE

31

6818103

HOSE

32

6818104

HOSE

33

6818105

HOSE

34

6818106

HOSE

35

7105253

HOSE

36

7105254

HOSE

37

7105255

HOSE

38

15KB0808

FITTING, HYD CONNECTOR

38

79K8

O RING 10

39

16KB0606

FTG HYD L CONNECTOR

39

79K6

O RING 10

40

6685646

VALVE, CONTOL See Illustration CONTROL VALVE/ MS2589

41

7102234

FITTING

41

79K8

O RING 10

42

16KB0808

FITTING, HYD CONNECTOR

42

79K8

O RING 10

43

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906 - assy
