Запчасти Bobcat 337 ANGLE BLADE (S/N AAC811221 & Above, A9W711042 & Above, A9W911085 & Above) WORK EQUIPMENT

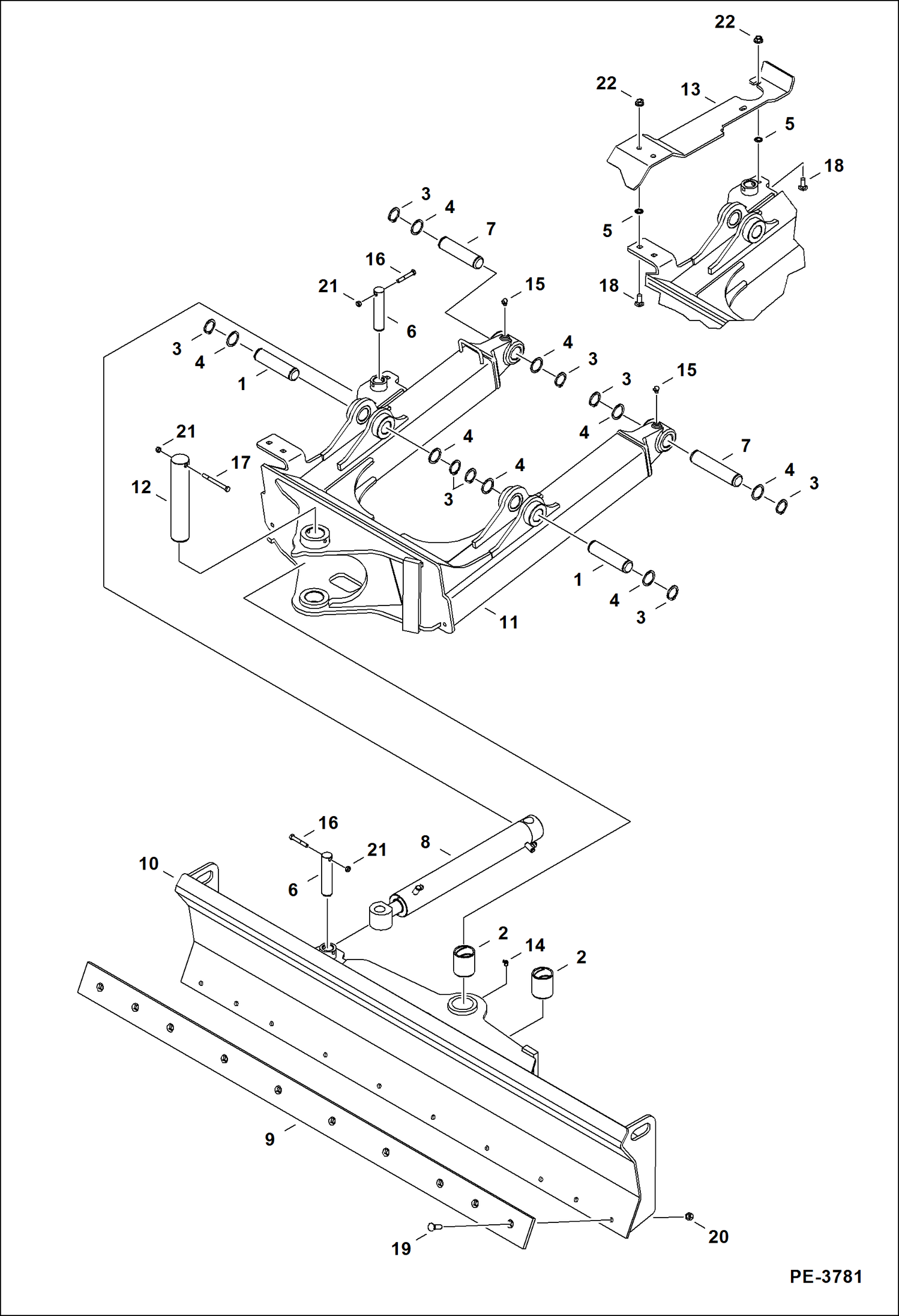

Схема запчастей Bobcat 337 - ANGLE BLADE (S/N AAC811221 & Above, A9W711042 & Above, A9W911085 & Above) WORK EQUIPMENT

Артикул

Название

Примечание

Количество

1

6597461

PIN

2

6597689

BUSHING, PRESS FIT

3

6665618

RING

4

6666549

WASHER

5

6685062

RETAINER

6

6702935

PIN, PIVOT

7

6813208

PIN

8

7134017

CYLINDER See Illustration ANGLE BLADE CYLINDER/ PE3358

9

7156778

EDGE, CUTTING BOLT-ON 76''

10

7156967

BLADE, EXCAVATOR W/A

11

7156968

ARM, BLADE

12

7156988

PIN

13

7156989

GUARD, BLADE ANGLE

14

11H15

GREASE FITTING

15

12H15

FITTING, GREASE 5

16

17C640

BOLT 5

17

17C664

BOLT

18

37C820

BOLT

19

39C828

BOLT

20

63D8

NUT

21

85D6

NUT, 5

22

97D8

NUT

Выбрано товаров: 22
