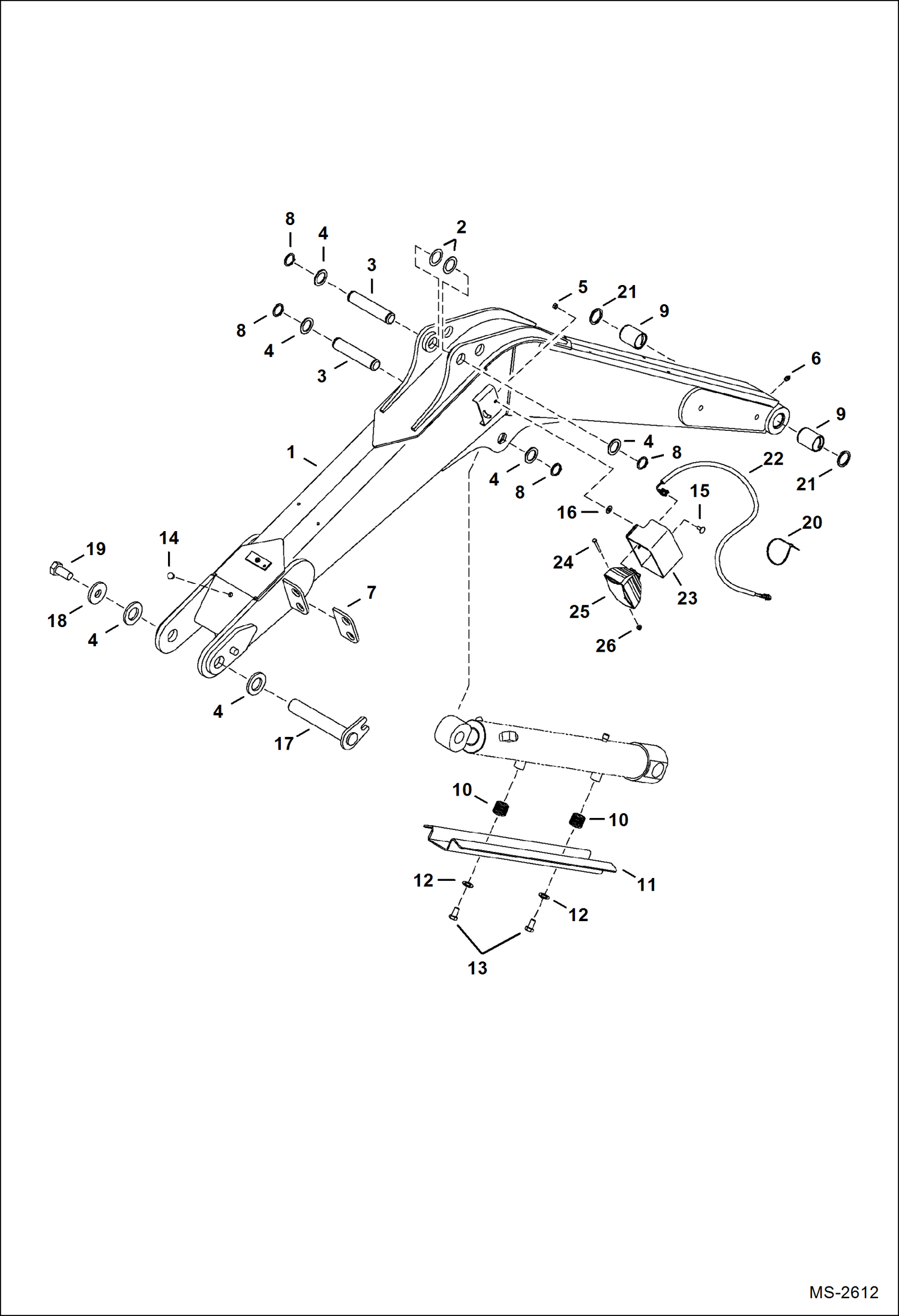

Запчасти Bobcat 337 BOOM WORK EQUIPMENT

1

7125514

BOOM, DIPPER ARM Also Order Ref. 9

2

6810703

SPACER

3

6628009

PIN

4

6538893

WASHER

5

51DM8

NUT

6

10H25

FITTING, GREASE 5

7

6597688

PLATE weld on

8

6660274

SNAP RING

9

6597689

BUSHING, PRESS FIT

10

6804778

SPRING

11

6804775

CHANNEL cylinder guard

12

25E26

WASHER

13

17C1012

BOLT

14

6597572

BUMPER

15

28CM820

BOLT

16

6675859

RETAINER

17

7127041

PIN W/A

18

6813933

WASHER

19

53CM2450

SCREW

20

6610510

TIE

21

6810743

SHIM as required

22

7135896

HARNESS work light - 156'' (3962 mm) long

23

7133077

HOUSING, W/A W/notch in side

24

1CM655

SCREW

25

6691410

LIGHT

25

6692400

BULB

26

51DM6

NUT
