Запчасти Bobcat 337 UNDERCARRIAGE UNDERCARRIAGE

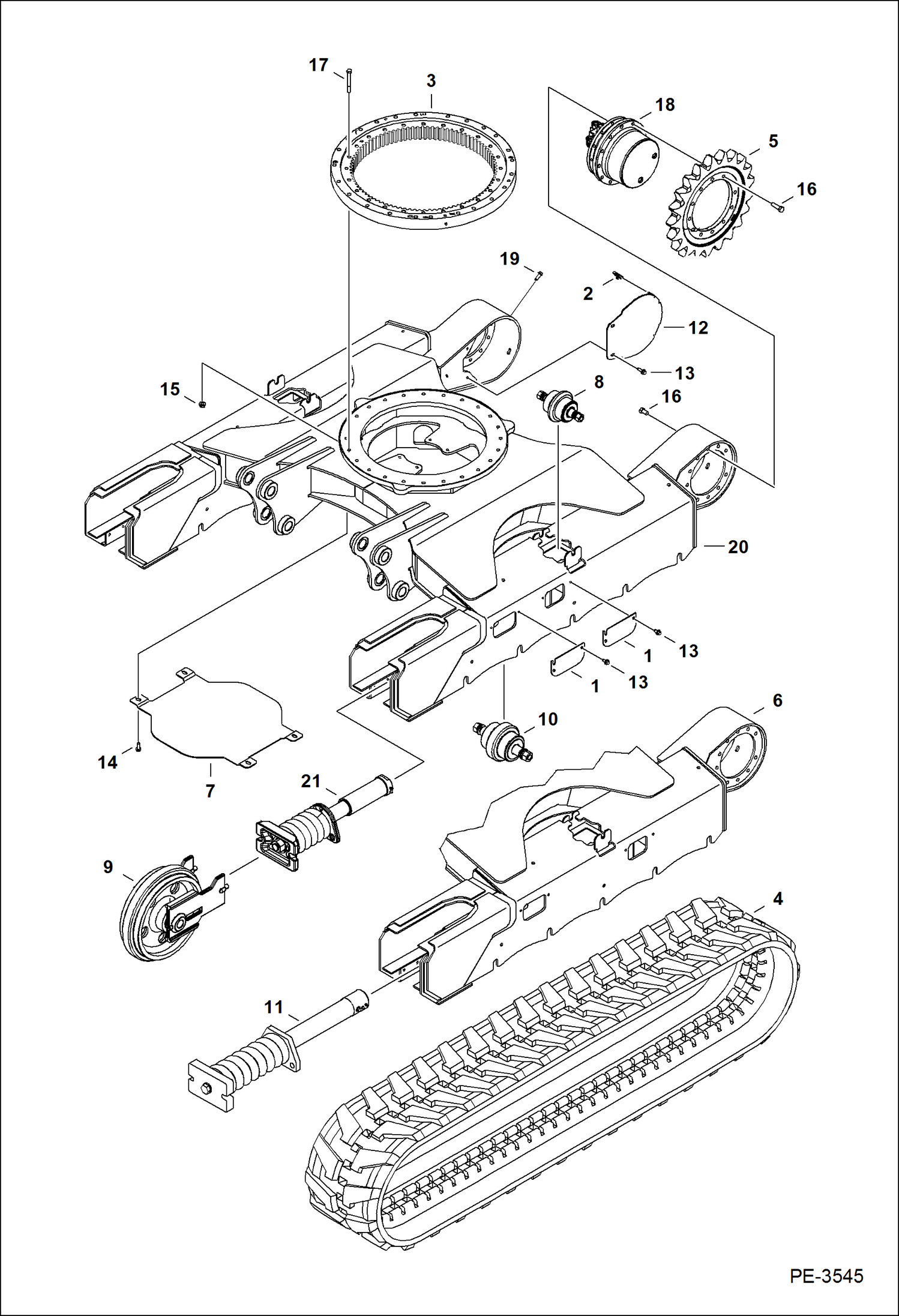

Схема запчастей Bobcat 337 - UNDERCARRIAGE UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

6596723

COVER

2

6675722

NUT

3

6675777

BEARING

4

TRACK, RUBBER See Illustration TRACKS/ NA6193

4

TRACK, STEEL See Illustration TRACKS/ NA2486

5

6816209

SPROCKET, MOTOR DRIVE TRACK

6

UNDERCARRIAGE NLA - Order 7169212 undercarriage and (2) 7152282 track tensioners - Was 6812738 - A

7

7102346

PLATE W/O angle blade option

7

7159491

COVER, BOTTOM W/angle blade option

8

ROLLER ASSY See Illustration TRACK ROLLER/ PE2459 - top

9

6815125

IDLER See Illustration FRONT IDLER/ PE1911 - assy

10

ROLLER ASSY See Illustration TRACK ROLLER/ PE1913 - bottom

11

CYLINDER See Illustration TRACK TENSIONER/ PE1912 - assy

12

6816483

COVER

13

26GM10020

BOLT

14

26GM10030

BOLT

15

51DM12

NUT

16

55CM1435

SCREW

17

7CM12100

BOLT

18

6668730

MOTOR See Illustration TRAVEL MOTOR/ D2403 - travel

19

29CM1030

BOLT

20

7169212

UNDERCARRIAGE

21

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ PE3893

Выбрано товаров: 23
