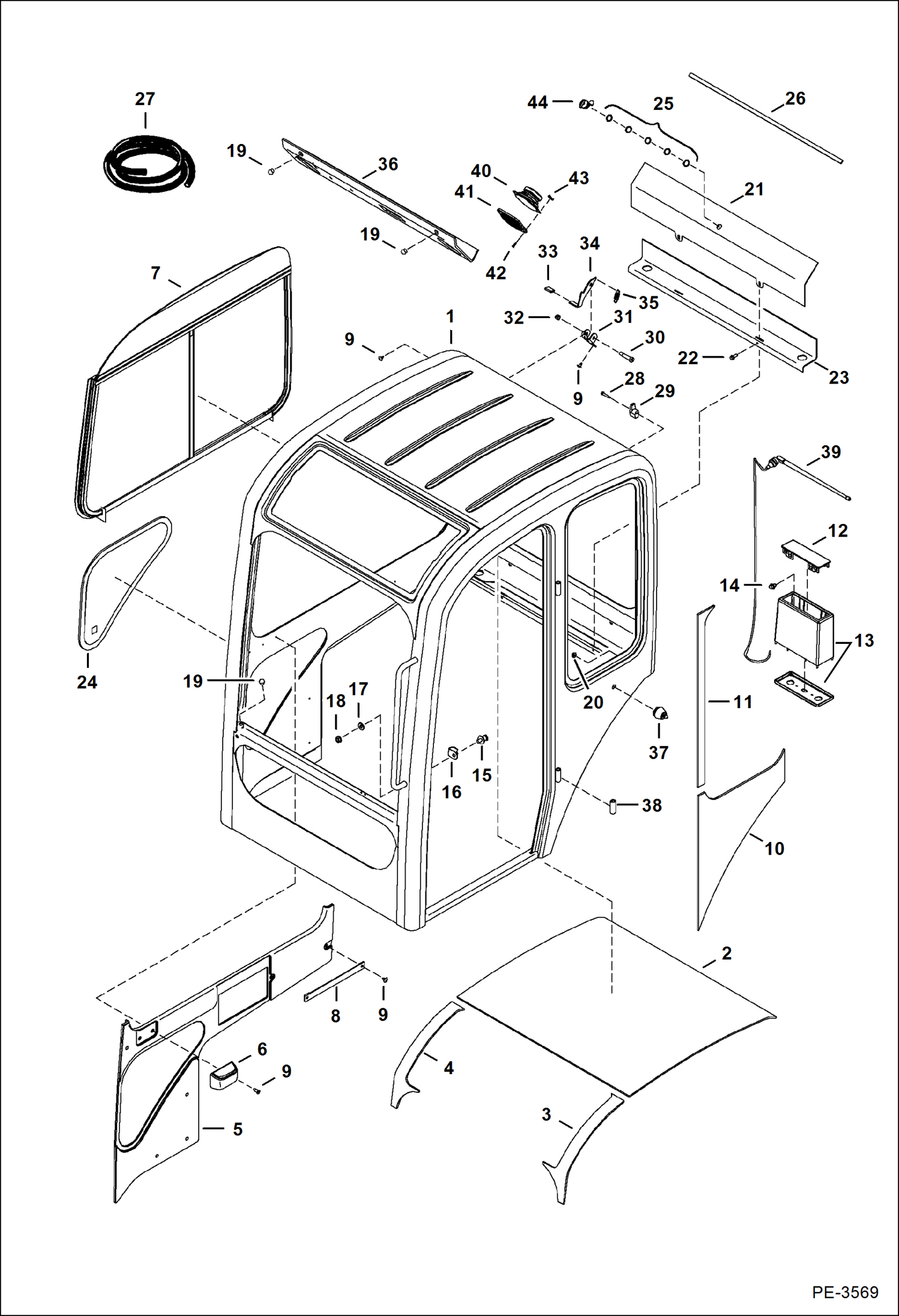

Запчасти Bobcat 337 OPERATOR CAB (RH Window & Insulation) (Radio Ready) MAIN FRAME

1

CAB, W/A See Illustration CAB KIT/ PE3333 - NLA - Was 7109076 - A

2

6816185

INSULATION roof

3

6818362

INSULATION L.H. - front

4

6818275

INSULATION RH - front

5

7101010

INSULATION for machines W/ashtray

5

7163052

INSULATION, CAB RH for machines W/O ashtray

6

6664075

ASH TRAY

7

WINDOW See Illustration OPERATOR CAB/ PE2297

8

6589347

STRAP elastic

9

6589675

SCREW

10

7117115

INSULATION SIDE side

11

6816189

INSULATION

12

6685745

COVER

13

6685799

BRACKET

14

26GM10016

SCREW

15

6689007

STRIKER BOLT

16

6688999

STRIKER GUARD

17

27E6

WASHER 5

18

55D7

NUT

19

6597572

BUMPER

20

55D4

NUT

21

6816342

COVER rear

22

26GM6020

SCREW

23

6817521

PAD

24

6811792

WINDOW RH - Use 6808882 adhesive, 7102268 primer, & 7110861 cleaner

24

7125397

WINDOW R.H. - For China Only

25

6536802

WASHER

26

SEAL NLA - Use 34'' (864 mm) of Ref. 27

27

6648416

SEAL BULK /FT bulk - sold per foot

28

6808424

SCREW

29

6658289

HOOK coat

30

1303190

PIN, CLEVIS Was 4F6106 - D

31

6814724

LATCH

32

1306637

CLIP lock

33

6677500

HANDLE lever

34

6814721

HANDLE latch

35

6714210

SPRING

36

7102641

INSULATION rear

37

6689001

STRIKER hold open

38

6719341

HINGE weld on

39

6676114

ANTENNA, RADIO

40

6903211

SPEAKER, 4 INCH

41

6685607

GRILL

42

7163690

SCREW Was 6685743 - B

43

6685744

CLIP

44

6681922

LATCH
