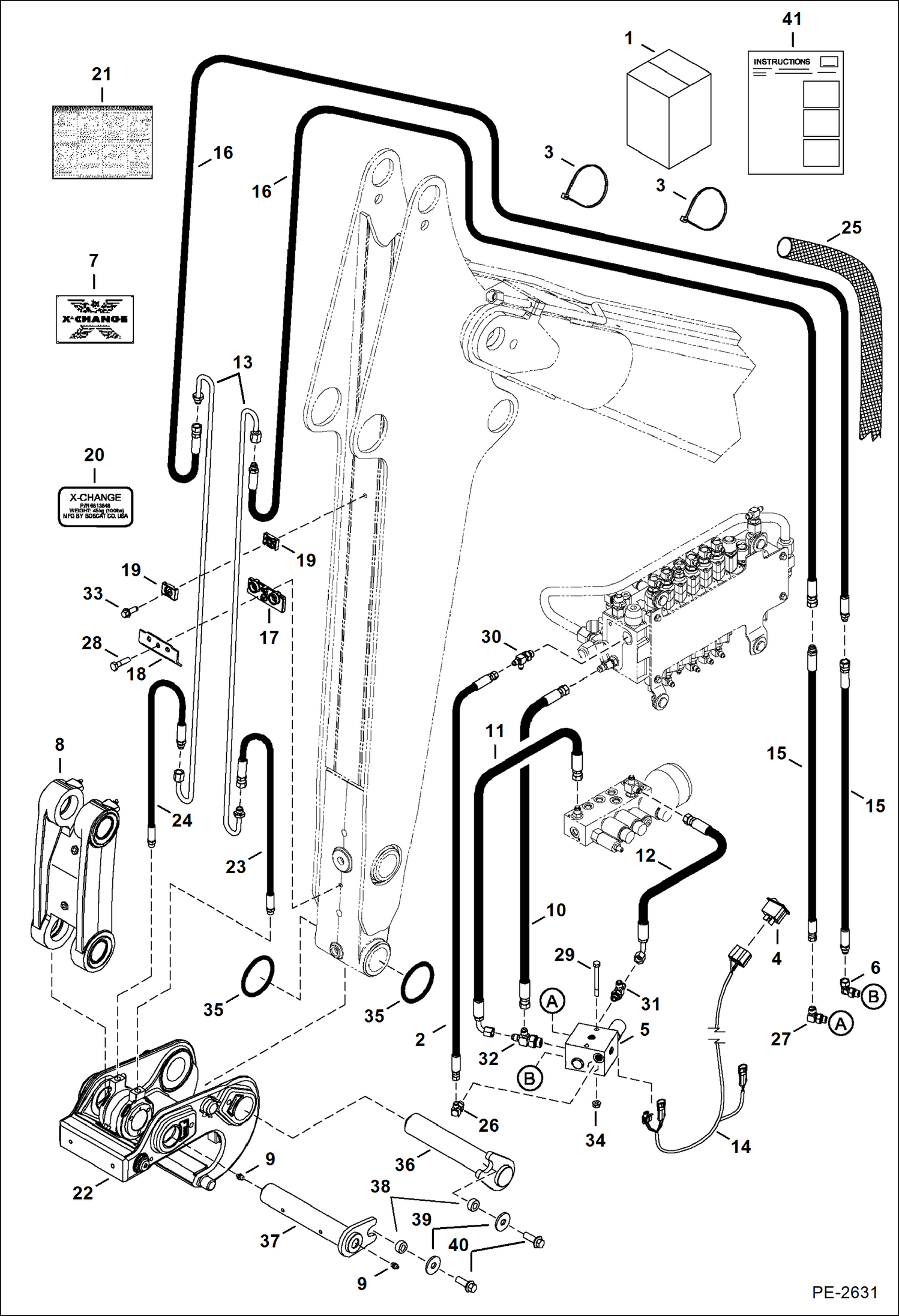

Запчасти Bobcat 337 X-CHANGE (Hydraulic) (Kit) ACCESSORIES & OPTIONS

1

7116724

KIT hydraulic x-change for standard arm (337) Ref 2-35

1

7116725

KIT hydraulic x-change for long arm (341) Ref 2-35

2

6530901

HOSE

3

6624289

STRAP, TIE

4

6688667

SWITCH

5

6688821

MANIFOLD See Illustration X-CHANGE/ MS1461

6

6689033

FITTING

6

79K6

O RING 10

7

6803760

DECAL

8

LINK See Illustration X-CHANGE/ PE2630 NLA - Order components - Was 6813005 - A

9

10H25

FITTING, GREASE 5

10

7106389

HOSE

11

7164699

HOSE, HYD ASSY Was 7108527 - A

12

7108586

HOSE

13

7110324

TUBELINE

14

7113694

HARNESS

15

7114637

HOSE

16

7114638

HOSE 170''(4.32m) standard arm (337)

16

7114639

HOSE 186''(4.75m) long arm (341)

17

7114712

CLAMP

18

7114713

PLATE COVER

19

7115645

CLAMP

20

7116756

DECAL

21

7134587

DECAL, X-CHANGE

22

7135873

X-CHG SWIVEL ASSY See Illustration X-CHANGE/ PE2630 assy

23

7117184

HOSE

24

7117185

HOSE

25

7120119

GUARD

26

17KB0406

FITTING, HYD ELBOW

26

79K6

O RING 10

27

17KB0606

FITTING

27

79K6

O RING 10

28

1CM1040

BOLT

29

1CM880

BOLT

30

21KB0406

FTG HYD STRAIGHT TEE

30

79K6

O RING 10

31

21KB0606

FTG HYD STRAIGHT TEE

31

79K6

O RING 10

32

21KB0608

FTG Hyd Straight Tee

32

79K8

O RING 10

33

26GM10030

BOLT

34

43DM8

NUT

35

6674145

O-RING

36

6813401

PIN

37

7121252

PIN

38

6816368

SPACER

39

17EM120

WASHER

40

1CM1235

BOLT Was 29CM1235 - B

41

6904248

INSTRUCTIONS
