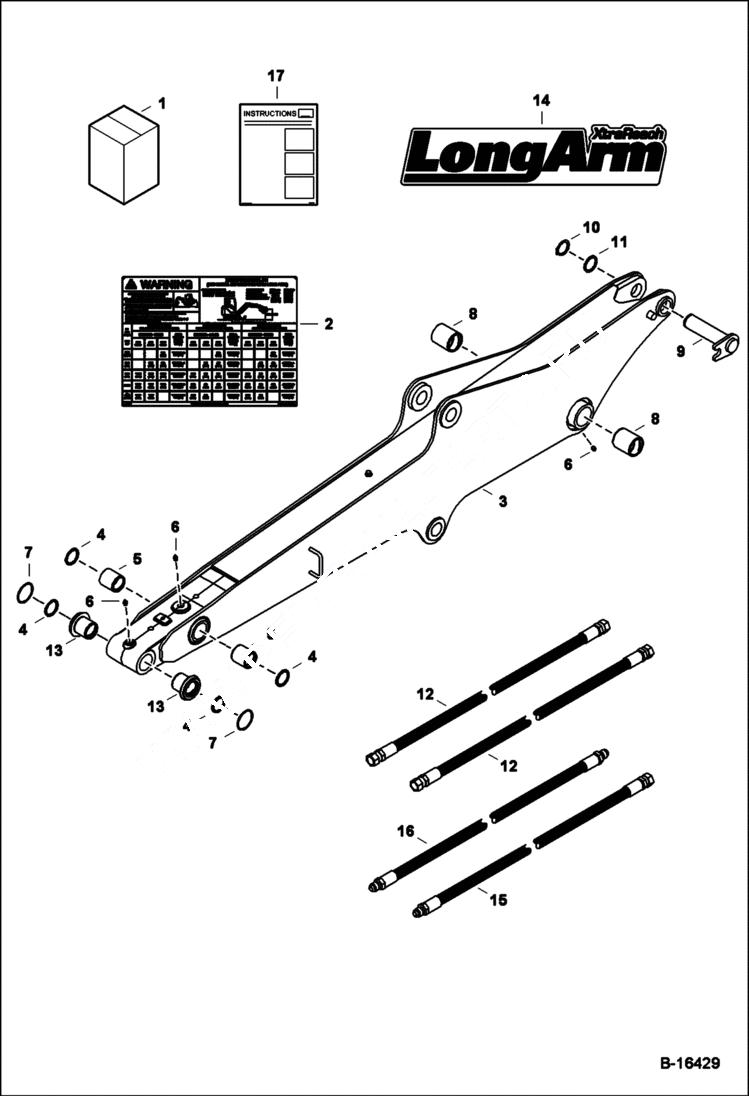

Запчасти Bobcat 337 LONG ARM KIT (337) ACCESSORIES & OPTIONS

1

KIT Ref. 2-17 - SALES# 6805274- 337 only - counterweight kit #6808627 should be installed with this kit

2

6805271

DECAL Model 337C

2

6817058

DECAL Model 337D & 337G

2

7105760

DECAL text - Model 337G

2

7120925

DECAL ESA No-text - Model 337G

3

6804414

ARM, W/A LONG Also Order Ref. 4-8 & 13 - Was 6805995 - A

4

6669287

SEAL

5

6628341

BUSHING, PRESS FIT

6

10H25

FITTING, GREASE 5 grease

7

6674145

O-RING

8

6597689

BUSHING, PRESS FIT

9

6805204

PIN

10

6668787

RING

11

6628547

WASHER

12

6805012

HOSE Model 337C & 337D

13

6805601

BUSHING

14

7147433

DECAL, ARM LONG long arm

15

6818331

HOSE Model 337G

16

6818336

HOSE Model 337G

17

6986535

INSTRUCTIONS
