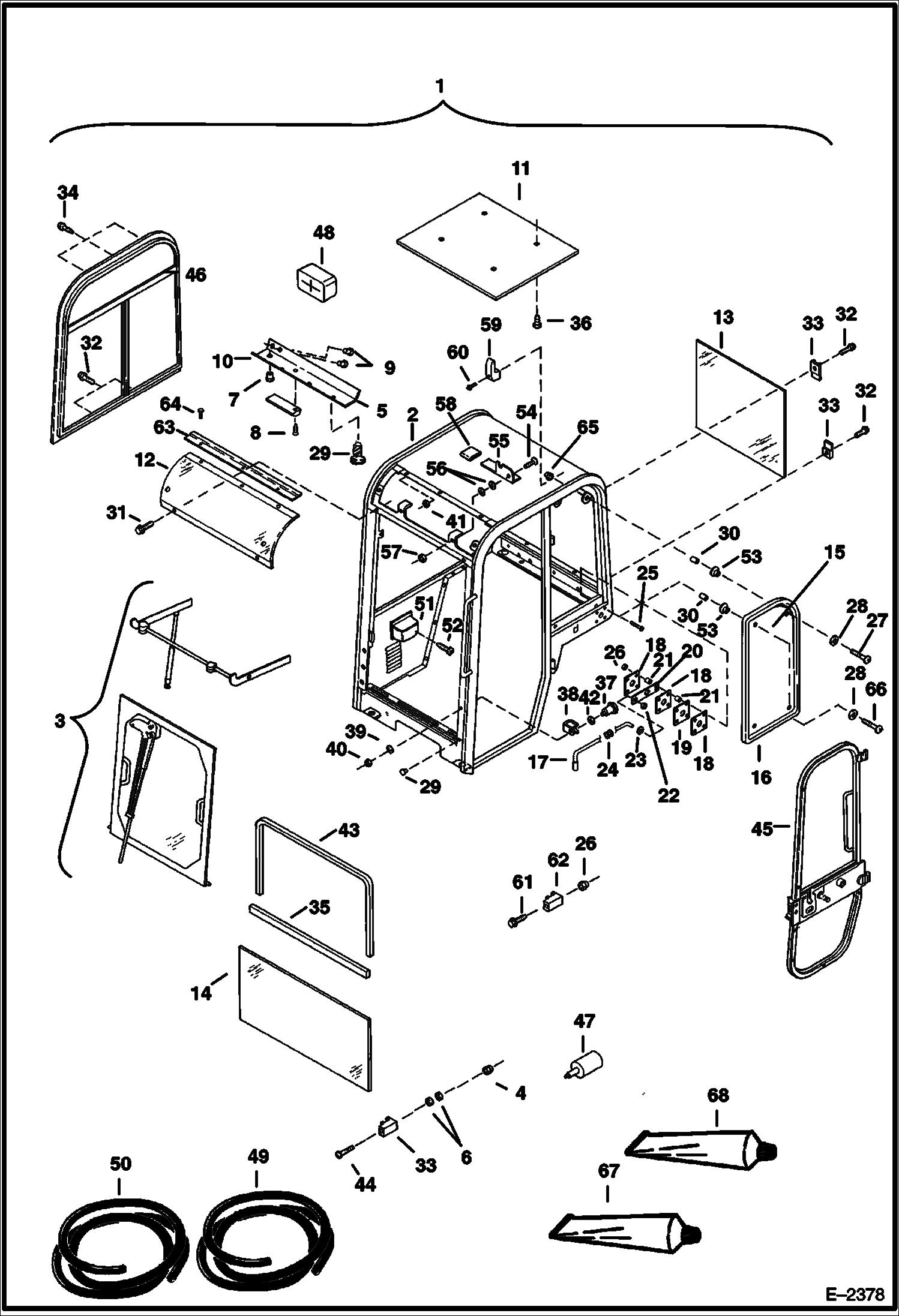

Запчасти Bobcat 337 OPERATOR CAB MAIN FRAME

1

CAB ASSY. See Illustration OPERATOR CAB/ E2378 - NLA - Order components - Was Sales - A

2

6802950

CAB W/A

2

7149395

HINGE door - weld-on - Was 6807255 - A

3

6800880

WINDOW ASSY. See Illustration OPERATOR CAB/ E2380 FRONT

4

6664103

NUT Acorn #10

5

6628898

PLATE

6

6664085

BUSHING

7

6664084

LIGHT

7

6665367

BULB Was 6655055 - A

8

58G806

SCREW Dome light mounting

9

6664374

PLUG Hole

10

1303932

GROMMET

11

6628899

INSULATION Headliner

12

6806131

WINDOW Curved - Was 6664176 - A

13

6664172

WINDOW Rear

14

6800637

WINDOW Lower front

15

6664171

GLASS Left

16

SEAL NLA - 105'' long (2680mm) Order Ref. 49

17

6628900

ROD Door release

18

6628902

PLATE

19

6664146

SEAL

20

6628901

LATCH Door hold open

21

6664085

BUSHING

22

6660979

NUT Push on

23

6660980

RETAINER Push on

24

6654147

SPRING

25

6664068

BOLT 1 1/4'' long

26

7031515

NUT Acorn 1/4'' - Was 6664056 - A

27

6648410

BOLT 3/4''

28

6664090

WASHER

29

6670761

CAP

30

6664086

SPACER

31

6589675

SCREW

32

6654152

BOLT #10 x 3/4'' long

33

6665366

RETAINER Glass - Bottom

34

6802918

BOLT

35

SEAL NLA - 33'' (838mm) long - Order Ref.49

36

6664559

FASTENER Insulation

37

6649483

STRIKER BOLT Door striker - w/external threads - Was 6654170 - A

38

6664083

COVER

39

27E6

WASHER 5

40

61D7

NUT

41

6664562

GROMMET

42

6660975

GROMMET

43

SEAL NLA - '56'' long (1422mm) - Order Ref. 49

44

6801188

SCREW

45

DOOR ASSY. See Illustration OPERATOR CAB/ E2379

46

WINDOW ASSY. See Illustration OPERATOR CAB/ D2314 right side

47

6654148

SEALANT Window - 10oz. Tube

48

6664106

LAMP Was 6668722 - A

48

6668721

BULB Replacement bulb for 6668722

49

6664088

SEAL Bulk - Order Per Foot

50

6664102

SEAL Bulk - Order Per Foot

51

6664075

ASH TRAY

52

58G806

SCREW

53

6800788

GROMMET

54

6800857

BOLT

55

6801032

HANDLE L.H. Shown

55

6801031

HANDLE R.H. Not Shown - Was 6801033 - A

56

6630038

WASHER

57

87D5

NUT

58

6670760

GRIP

59

6658289

HOOK Coat

60

6658290

SCREW

61

6664066

BOLT

62

6800651

MOUNT Glass - Top

63

6805291

BRACKET

64

26GM6016

SCREW Use W/Ref. 63

65

6669138

NUT

66

91G414

SCREW

67

7102268

PRIMER back window - Was 6808881 - A

68

6808882

ADHESIVE, URETHANE 10.5 fluid oz. - back window
