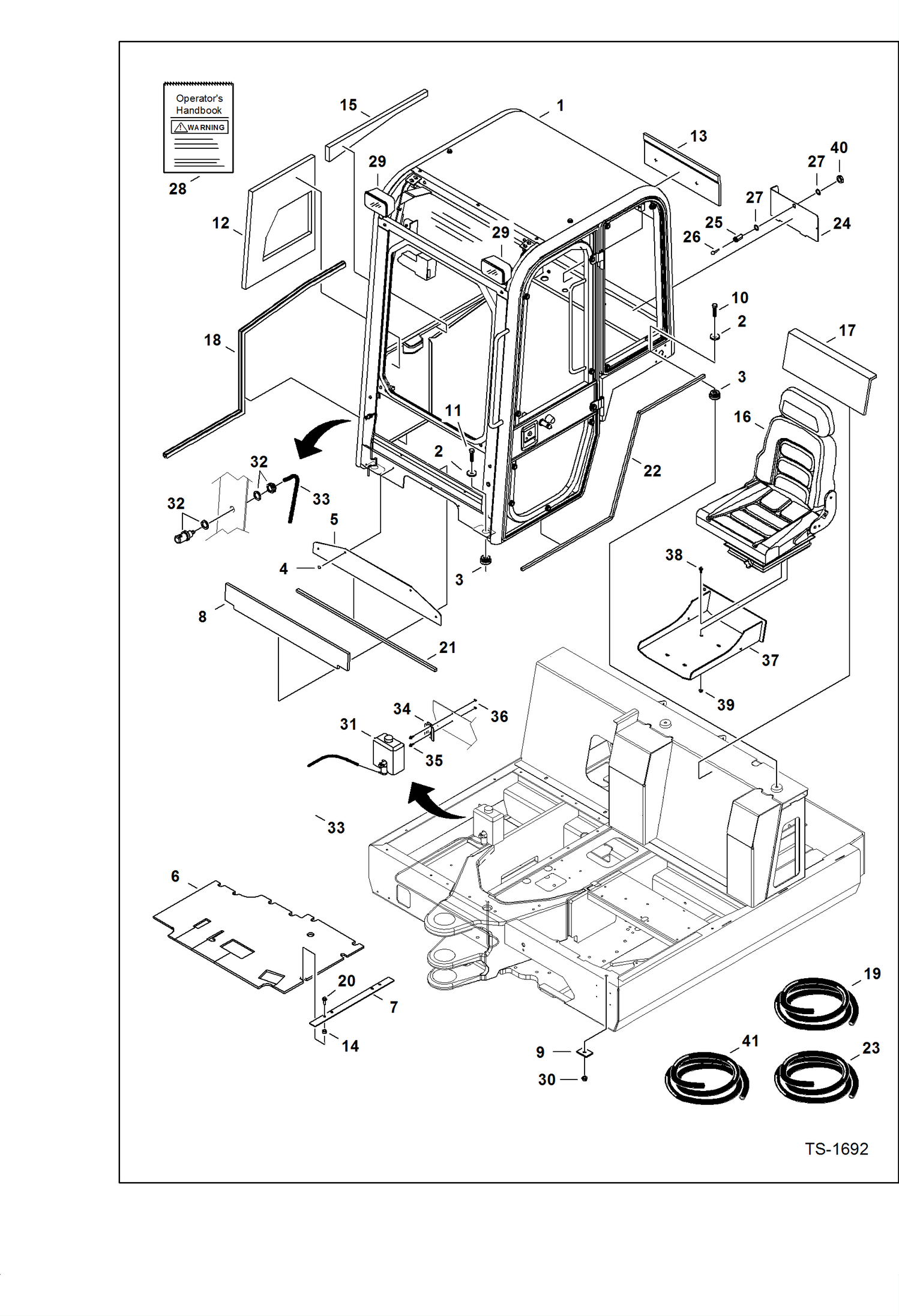

Запчасти Bobcat 337 CAB MOUNTING MAIN FRAME

1

CAB ASSY See Illustration OPERATOR CAB/ E2378 - NLA - Order components - Was SALES - A

1

6802950

CAB W/A

2

6808506

WASHER Was SALES - A

3

6560633

DAMPENER Use W/12mm Cab Mounting Hardware

3

7001052

MOUNT, ENG Use W/14mm Cab Mounting Hardware - Was 6804026 - A

4

6589675

SCREW

5

6588651

PANEL

6

6803201

FLOORMAT

7

6802931

PLATE Floormat retainer

8

6802959

INSULATION

9

6588177

PLATE

10

7CM1250

BOLT Check Cab Mtg Hardware size before ordering

10

10CM1455

BOLT Check Cab Mtg Hardware size before ordering

11

7CM1255

BOLT Check Cab Mtg Hardware size before ordering

11

10CM1455

BOLT Check Cab Mtg Hardware size before ordering

12

6802901

INSULATION

13

6589664

INSULATION

14

6503451

SPACER

15

6802952

INSULATION Was 6902952 - D

16

SEAT See Illustration SEAT/ D2132

17

6802954

INSULATION

18

SEAL NLA - 63'' (1600mm) Long-Order Ref.19

19

6670759

SEAL Bulk - Order Per Foot

20

26GM10030

BOLT

21

FOAM NLA - 37'' long (940mm) Order Ref. 23

22

FOAM NLA - 58'' long (1473mm) Order Ref. 23

23

6801027

SEAL Bulk - Sold Per Foot

24

6589656

PANEL Storage-cab models

24

6589655

PANEL Storage-canopy models

25

6674389

LOCK ASSY Was 6661695 - A

26

6587458

KEY

27

6536802

WASHER

28

6900465

HANDBOOK Operators - English

29

6664106

LAMP Was 6668722 - A

29

6668721

BULB Replacement bulb for 6668722

30

43DM12

NUT Check Cab Mtg Hardware size before ordering

30

43DM14

NUT

31

WASHER KIT NLA - kit - Order 6666767 nozzle, 6691499 tank assy, 6664557 bracket, & 5 feet of 6708310 bulk hose - Was 6664438 - A

31

6691499

TANK ASSY includes 6664554 pump

31

6664554

PUMP, WIPER WASHER

32

6666767

NOZZLE window washer - Was 6664555 - A

33

HOSE NLA - 5' (1524 mm) long - Order Ref. 41 - Was 6664556 - A

34

6664557

BRACKET

35

29CM616

BOLT

36

1DM6

NUT Was 4DM6 - A

37

6802636

MOUNT Seat

38

29CM820

SCREW

39

51DM8

NUT

40

6675843

NUT

41

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot
