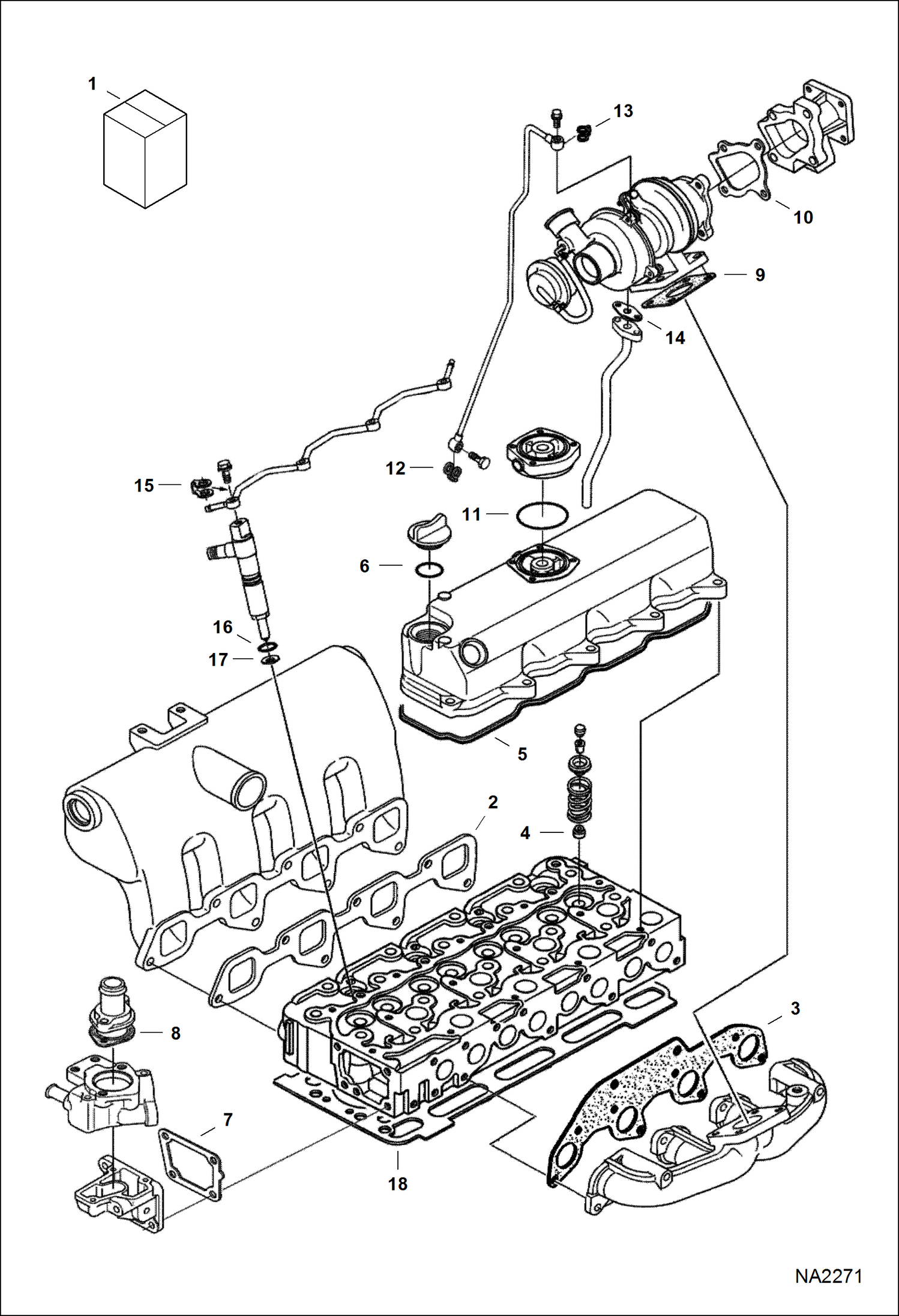

Запчасти Bobcat 337 UPPER GASKET KIT POWER UNIT

1

6689014

KIT, UPPER GASKET Ref. 2-17 - does not include head gasket

2

6684877

GASKET See Illustration MANIFOLD/ B22726 - intake manifold

3

6688382

GASKET See Illustration MANIFOLD/ B22726 - exhaust manifold - 1-piece gasket in kit services original 2-piece gaskets - .060'' thick

4

6653830

SEAL, STEM VALVE See Illustration VALVE & ROCKER ARM/ B22725

5

6684780

GASKET See Illustration HEAD COVER/ B22699 - rocker arm cover

6

6684782

O-RING See Illustration HEAD COVER/ B22699 - oil filler cap

7

6666802

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B22722 - water flange

8

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B22722 - thermostat

9

6675636

GASKET See Illustration TURBO CHARGER/ B22728 - turbo to manifold

10

6675637

GASKET See Illustration TURBO CHARGER/ B22728 - turbo to flange

11

6685581

O-RING See Illustration HEAD COVER/ B22699 - breather

12

6689331

GASKET See Illustration OIL PIPE/ B22729 - oil supply tube - bottom - Was 6680792 - B

13

7000642

WASHER, SEALING COPPER See Illustration OIL PIPE/ B22729 - oil supply tube - top - Was 6685962 - B

14

6680570

GASKET See Illustration OIL PIPE/ B22729 - oil return tube

15

6685498

GASKET See Illustration NOZZLE HOLDER & GLOW PLUG/ B22717 - fuel return line

16

6670769

O-RING See Illustration NOZZLE HOLDER & GLOW PLUG/ B22717 - injector nozzle

17

6969824

GASKET, NOZZLE INJ See Illustration NOZZLE HOLDER & GLOW PLUG/ B22717 - injection nozzle - Was 6680779 - B,D

18

GASKET, HEAD CYL See Illustration CYLINDER HEAD/ B22697 - not in kit
