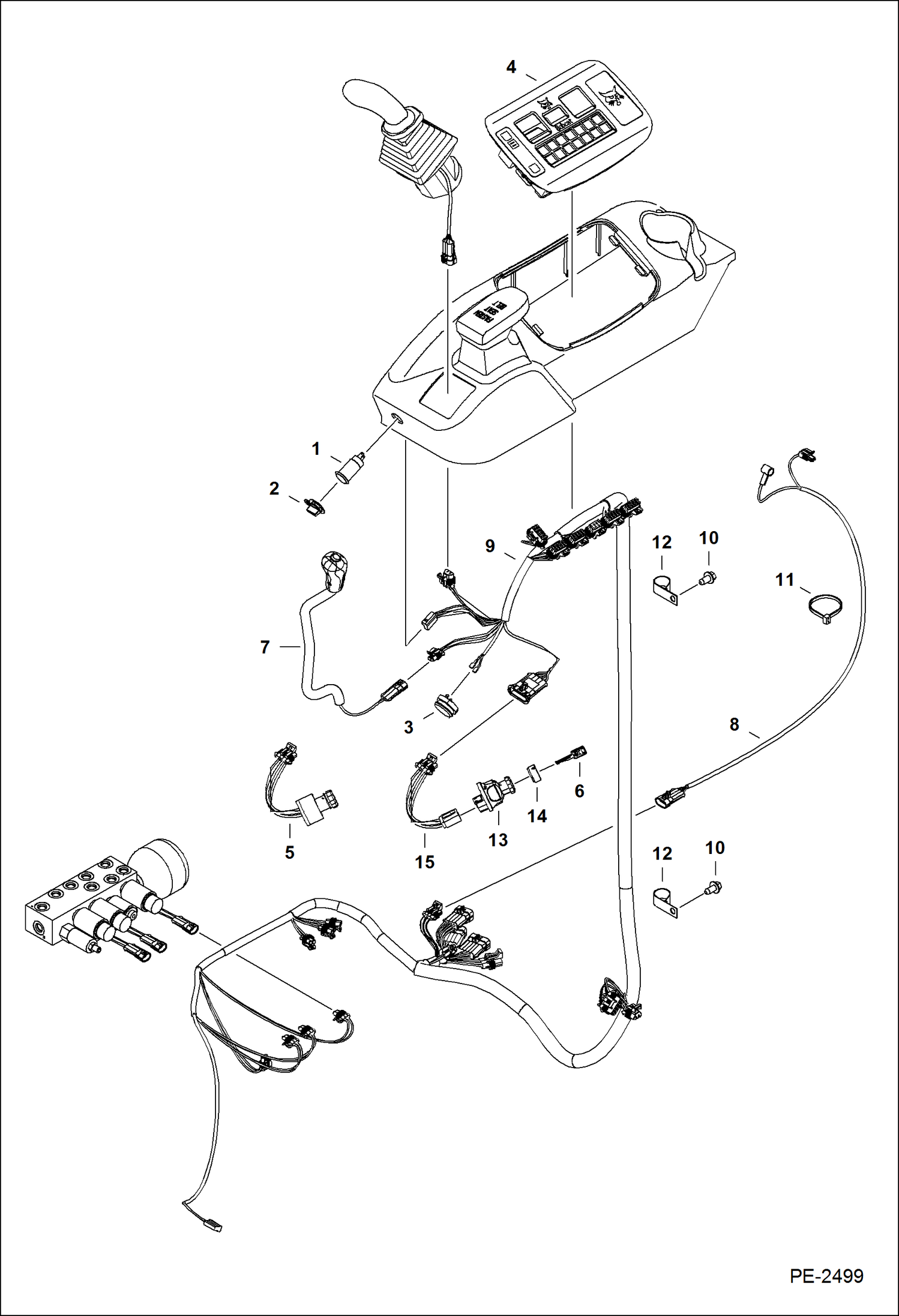

Запчасти Bobcat 337 ELECTRICAL (RH Console) ELECTRICAL SYSTEM

1

6664223

OUTLET

2

6664224

CAP

3

6675705

ALARM

4

6691430

CONTROLLER See BTI395exc - keyed - Was 6678683 - A

5

SWITCH NLA - ignition W/attached harness - Order Ref. 13-15 - Was 6679842 - A

6

KEY NLA - ignition - includes two keys W/ring - Order 6693241- Was 6709527 - A

6

6693241

KEY 10 ignition - single key W/O ring

7

BLADE LEVER NLA - Order components - Was 7117039 - A

7

6675721

SWITCH momentary

7

6675831

HANDLE front half

7

6675832

HANDLE back half

7

7117038

TUBE

7

SCREW NLA - #6 x 5/8 pan head

8

6808121

HARNESS See Illustration HYDRAULIC CIRCUITRY/ PE2200 to hydraulic temp sender 6718417

9

6810007

HARNESS

10

26GM10020

BOLT

11

6624289

STRAP, TIE

12

30HJ624

CLAMP

13

6693245

SWITCH, IGN W/O attached harness

14

7000328

ADAPTER, SWITCH IGN

15

6697965

HARNESS
