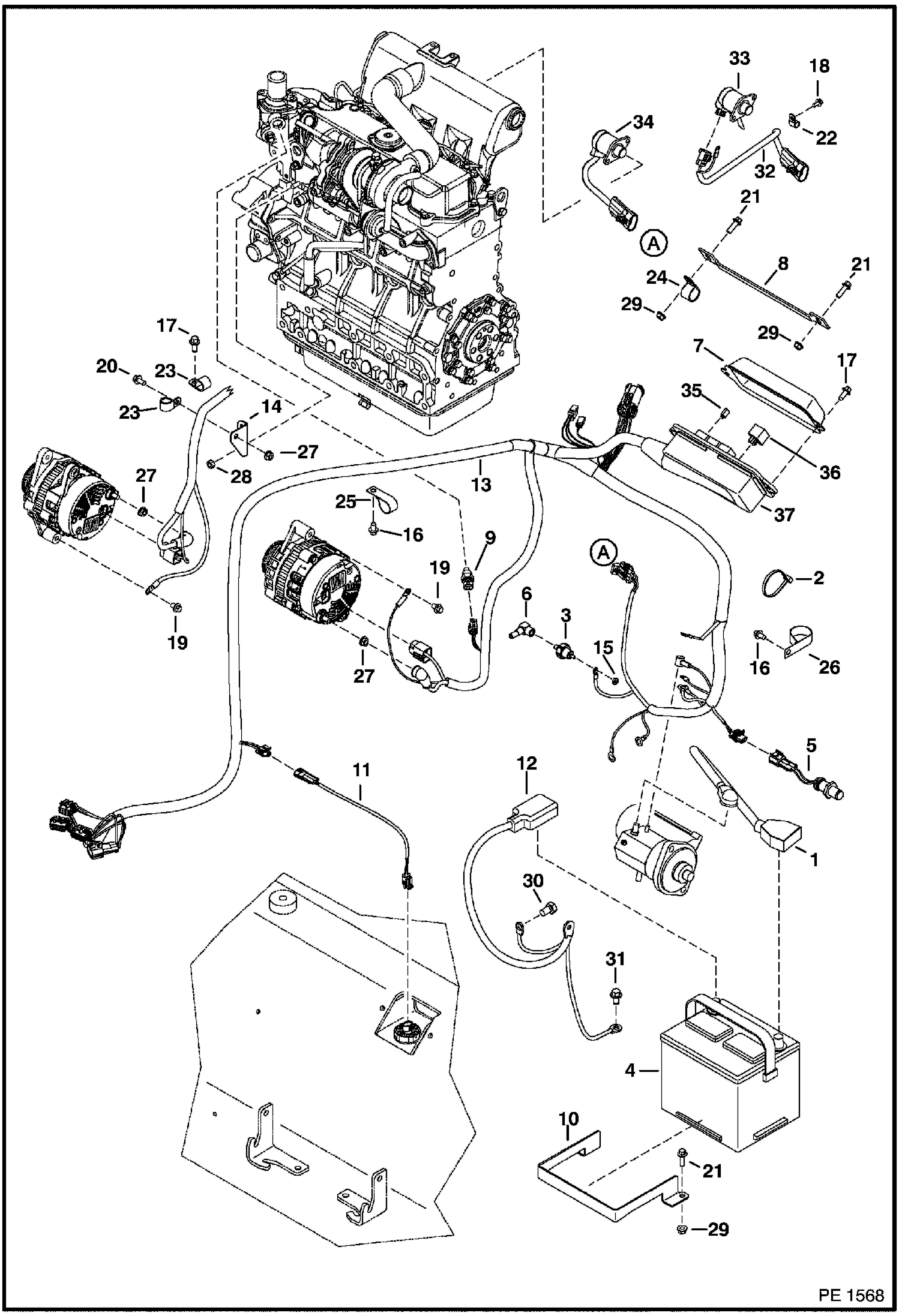

Запчасти Bobcat 337 ELECTRICAL ELECTRICAL SYSTEM

1

6568685

CABLE positive

2

6624289

STRAP, TIE cable

3

6631010

SWITCH, PRESS OIL ENG pressure

4

6670251

BATTERY, DRY 530 AMP

5

6684037

SENSOR speed

6

6707040

ELBOW

7

6716621

COVER fuse box

8

6717890

COVER shield

9

6718414

SENDER, TEMP ENG

10

6806991

BRACKET battery holder

11

6807174

HARNESS fuel sensor - Was 6717174 - D

12

6808411

CABLE negative

13

HARNESS NLA- engine - W/Ref. 32- Order 6818010 harness - also Order Ref. 32 if Ref. 33 is used - Was 6818010 - A

13

6818010

HARNESS engine- W/O Ref. 32 - W/Ref. 7, 35-37

14

7100529

BRACKET w/o a/c

15

12D8

NUT

16

26GM8016

SCREW

17

26GM8020

SCREW

18

29CM612

BOLT, FLANGED

19

BOLT NLA - Order Ref. 20 - Was 29CM812 - B

20

29CM816

SCREW

21

29CM825

BOLT

22

30H26

CLIP Was 30H21 - B

23

30H37

CLAMP

24

30H50

CLIP

25

30HJ616

CLIP

26

30HJ624

CLAMP

27

43DM8

NUT

28

4DM8

NUT

29

51DM8

NUT

30

6CM1220

BOLT

31

26GM10020

BOLT

32

6814830

HARNESS fuel shutoff

33

SOLENOID NLA- fuel shutoff W/molded connector - Order Ref. 34 - Was 6684826 - A

34

6691498

SOLENOID, SHUTOFF FUEL 240 mm (9.45'') lead

35

6654803

FUSE 5A

35

6654805

FUSE 10A

35

6654806

FUSE, 15A

35

6625575

FUSE, 20A

35

6702444

FUSE 25A 5

36

6679820

RELAY

37

6718659

HOUSING
