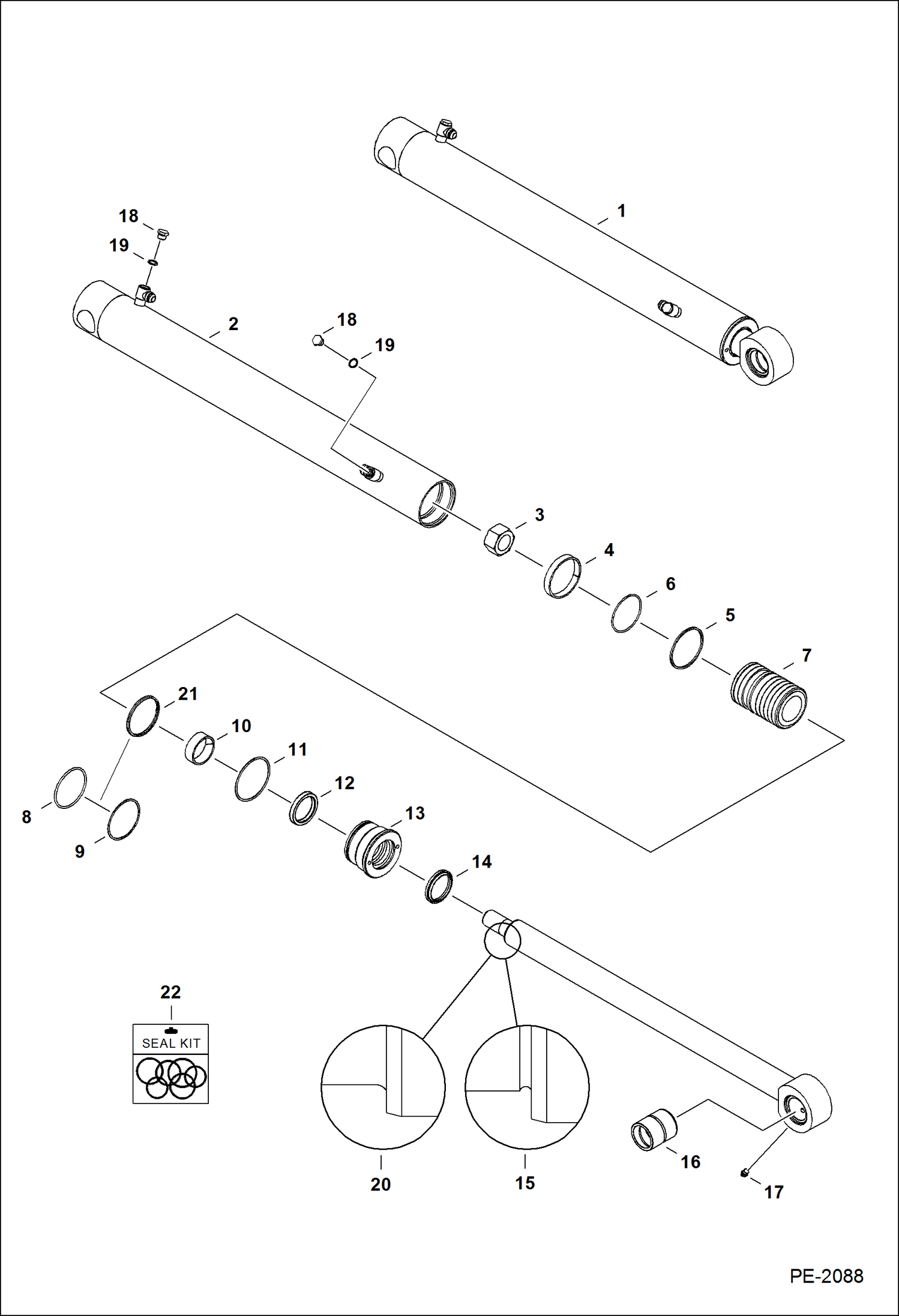

Запчасти Bobcat 337 SWING CYLINDER HYDRAULIC SYSTEM

1

CYLINDER See Illustration HYDRAULIC CIRCUITRY/ PE2082 - NLA - W/Ref. 2-15, 17-19 - Order 7156128 - Also Order Ref. 16 & (2) of 6669287 dust seal (see link) - Was 6818258

1

7156128

CYLINDER, SWING W/Ref. 2-14, 17-20 - Also Order Ref. 16 & (2) of 6669287 dust seal - Was 7147421 - A

2

6818259

HOUSING

3

6810540

NUT

4

7000777

RING, WEAR Was 6698179 - A

5

6513466

PISTON RG piston

6

25K30226

O RING 10 Was 54K30226 - B

7

7147313

PISTON Was 6816010 - A

8

58K234

O RING 10 Was 54K40300 - B

9

73K234

BACK-UP RING Was 80K234 - A

10

7000772

RING, WEAR Was 6698134 - A

11

82K236

O-RING Was 58K000236B - B

12

6667328

SEAL rod

13

6818158

HEAD

14

6686998

WIPER, ROD CYL Was 6666545 - A

15

ROD NLA - Order 7147422 rod & 7147313 piston - Also Order Ref. 16, 17, & (2) of 6669287 dust seal - Was 6810468 - A

16

6815279

BUSHING wear

17

10H25

FITTING, GREASE 5 grease

18

6812171

PLUG W/Ref. 19

19

75K6

O-RING

20

7147422

ROD Also Order Ref. 16, 17, & (2) of 6669287 dust seal

21

7008354

SEAL, QUAD

22

7161903

KIT, SEAL Ref. 3-6, 8-12 & 14 - Was 7156129 - A
