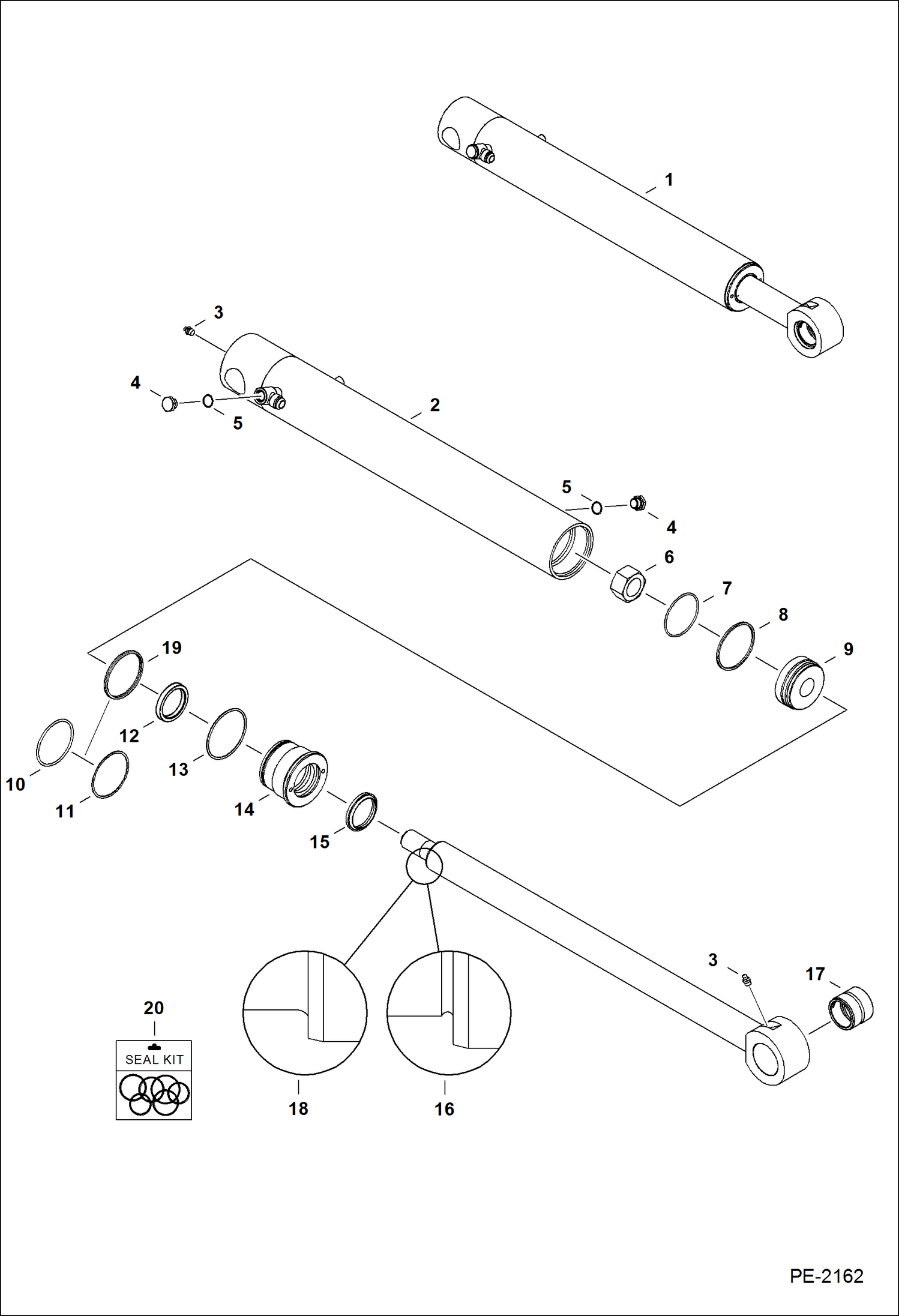

Запчасти Bobcat 337 BUCKET CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - W/Ref. 2-16 - Order 7146680 - Also Order Ref. 17 & (2) of 6669287 dust seal - Was 6818255 - A

1

7146680

CYLINDER W/Ref. 2-15 & 18 - Also Order Ref.17 & (2) of 6669287 dust seal

2

6818256

HOUSING

3

10H25

FITTING, GREASE 5 grease

4

6816855

PLUG

5

75K7

O-RING

6

6810540

NUT

7

25K30226

O RING 10 Was 54K30226 - B

8

6513466

PISTON RG piston

9

7147314

PISTON Was 6809560 - A

10

58K234

O RING 10 Was 54K40300 - B

11

73K234

BACK-UP RING Was 80K234 - A

12

6667328

SEAL rod

13

82K236

O-RING Was 58K000236B - B

14

6810626

HEAD

15

6686998

WIPER, ROD CYL Was 6666545 - A

16

ROD NLA - Order 7146681 rod & 7147314 piston - Also Order Ref. 3, 17, & (2) of 6669287 dust seal - Was 6812461 - A

17

6802371

BUSHING

18

7146681

ROD Also Order Ref. 3, 17, & (2) of 6669287 dust seal

19

7008354

SEAL, QUAD

20

7137966

SEAL KIT Ref. 6-8, 10-13 & 15 - Was 6810470 - A
