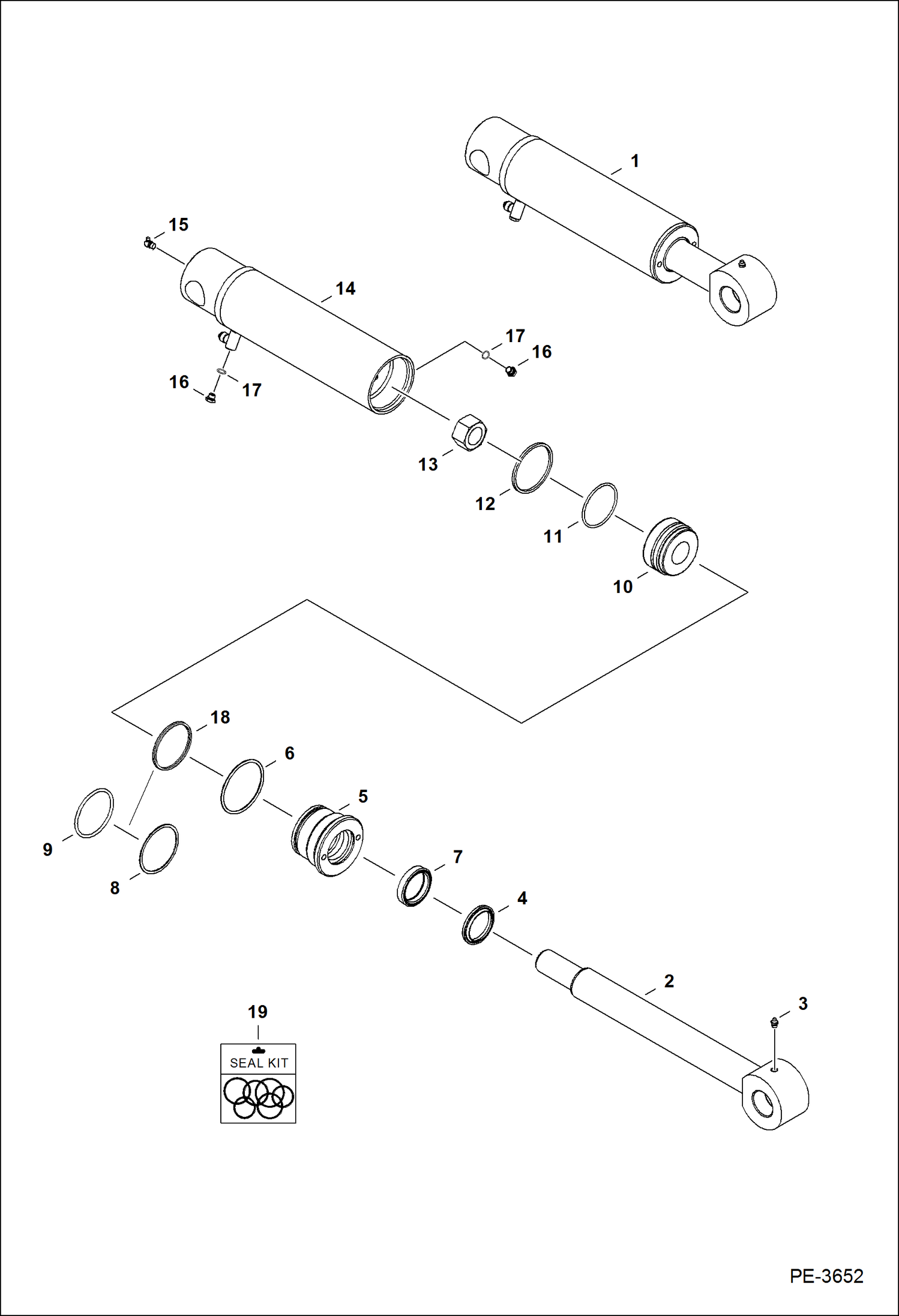

Запчасти Bobcat 337 BLADE CYLINDER HYDRAULIC SYSTEM

1

6815953

CYLINDER Assy. - Ref. 2-18

2

6628614

ROD

3

10H25

FITTING, GREASE 5 grease

4

6686999

WIPER, ROD CYL Was 6666544 - A

5

6586570

HEAD

6

82K236

O-RING Was 58K000236B - B

7

6667327

SEAL rod

8

73K234

BACK-UP RING Was 80K234 - A

9

58K234

O RING 10 Was 54K40300 - B

10

6628912

PISTON

11

25K30226

O RING 10 Was 54K30226 - B

12

6513466

PISTON RG piston

13

6810539

NUT

14

6815958

HOUSING 3.75'' OD

15

12H15

FITTING, GREASE 5 grease - 90 degree

16

6812170

PLUG W/Ref. 17

17

75K3

O-RING

18

7008354

SEAL, QUAD

19

7137965

SEAL KIT Ref. 5, 6-9 & 11-13 - Was 6816533 - A
