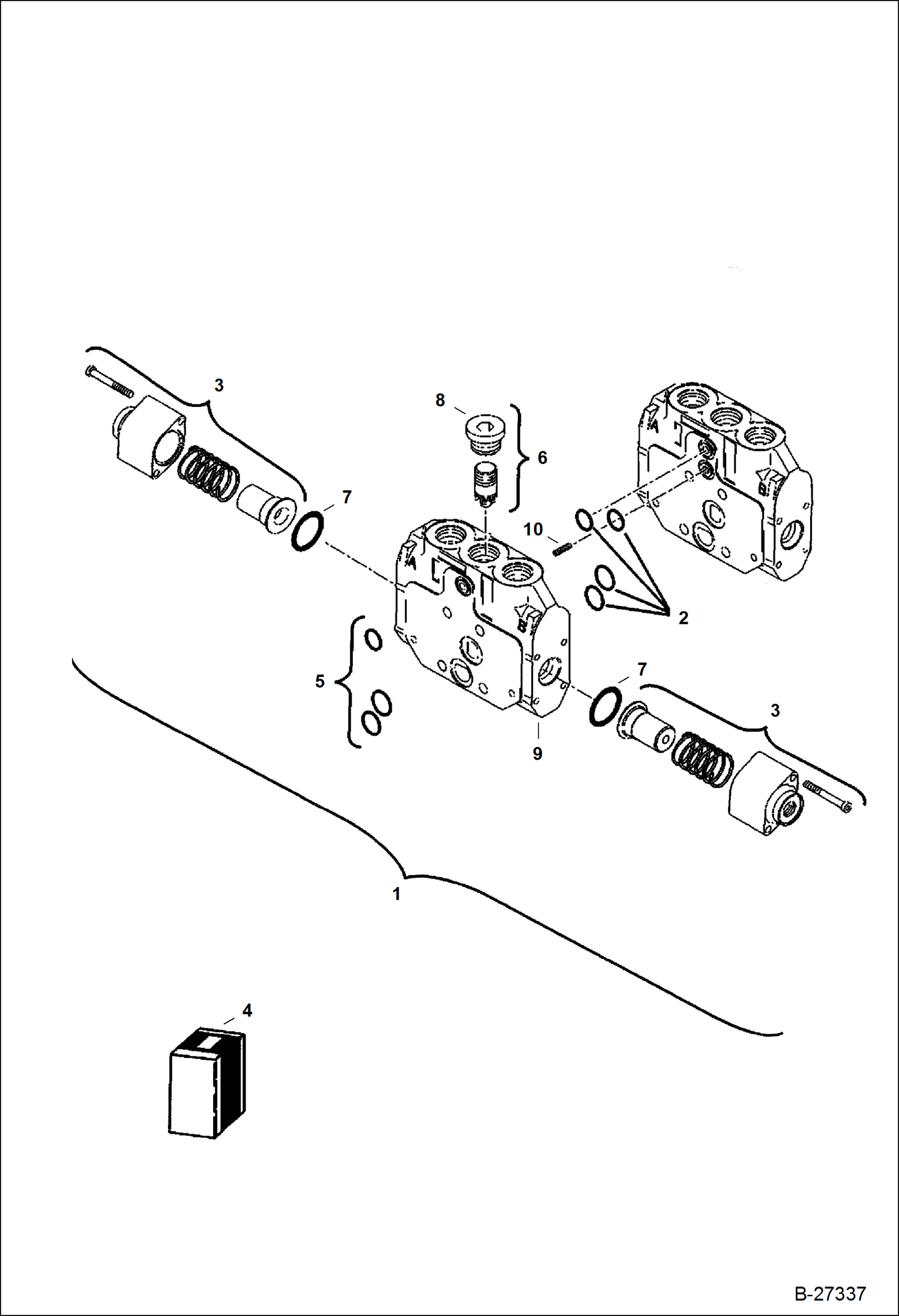

Запчасти Bobcat 337 CONTROL VALVE (Right Travel) HYDRAULIC SYSTEM

1

VALVE NLA - right travel - .875 in. press. ports - Order 6679924 W/.750 in. press. ports - Also Order (1) 7102234 elbow & (1) 17KB00808B elbow

1

6679924

SECTION, VALVE right travel - W/ .750'' press. ports - W/(3) O-ring grooves - Was 6686582 - A

2

6677472

KIT,SEAL not included with Ref. 1 - Was 6686594 - A

3

6677699

ACTUATOR assy - Was 6685254 - A

4

6677470

SEAL KIT assy - Was 6685264 - A

5

6677467

KIT, SEAL Was 6685259 - A

6

6677690

KIT, COMPENSATOR pressure - Was 6685237 - A

7

O-RING NSS - order Ref. 4

8

6685248

PLUG pressure

9

BLOCK NSS - order Ref. 1

10

6677695

SCREW
