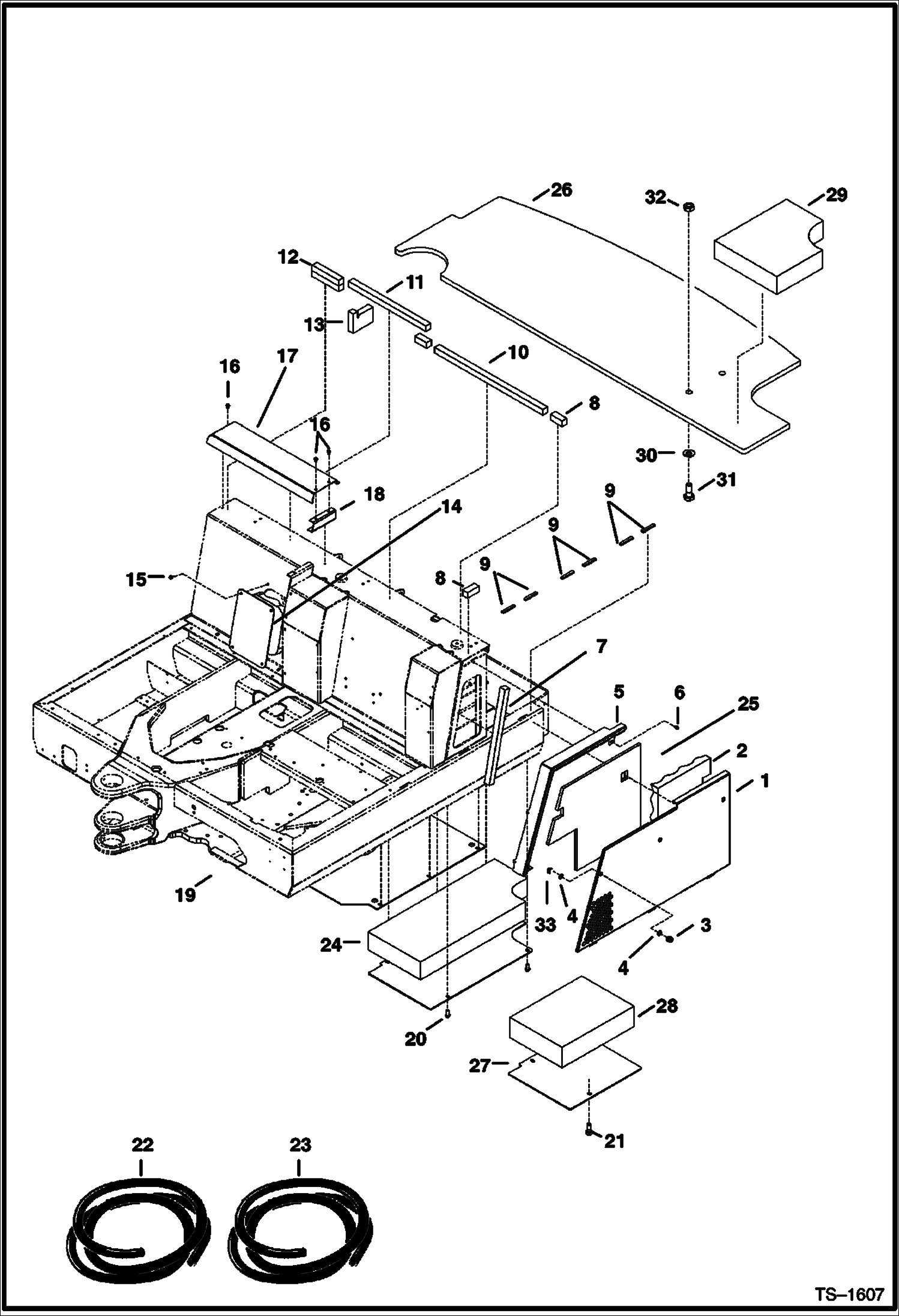

Запчасти Bobcat 337 LEFT SIDE COVERS & BELLY PANS MAIN FRAME

1

6628678

COVER L.H.

2

6802831

INSULATION

3

6674389

LOCK ASSY Was 6661695 - A

3

6587458

KEY

4

6536802

WASHER

5

6628677

ANGLE

6

26GM10020

BOLT

7

FOAM NLA - 20'' (500mm) - Order Ref. 22

8

FOAM NLA - 3'' (76mm) - Order Ref. 22

9

FOAM NLA - 3'' (76mm) - Order Ref. 23

10

FOAM NLA - 28'' (710mm) - Order Ref. 22

11

FOAM NLA - 20'' (500mm) - Order Ref. 22

12

FOAM NLA - 7'' (178''mm) - Order Ref. 22

13

6589121

INSULATION

14

6628692

INSULATION

15

6800150

COVER Access

16

26GM8016

SCREW

17

6800911

COVER

18

6800258

BRACKET

19

6801720

BELLY PAN Engine

20

6801721

BELLY PAN Pump - Was 6802721 - A

21

26GM10030

BOLT

22

6554274

INSULATION Bulk - Sold Per Foot - Was 6554274 - A

23

SEAL NLA - bulk - sold per foot - Was 6632217 - B

24

6804030

FOAM

25

6805014

INSULATION

26

6805663

COUNTERWEIGHT 341 only

27

6805667

BELLY PAN 341 only

28

6805702

INSULATION 341 only

29

6805701

INSULATION 341 only

30

28E16

WASHER 341 only

31

17C1652

BOLT 341 only

32

61D16

LCKNUT 341 only

33

6675843

NUT
