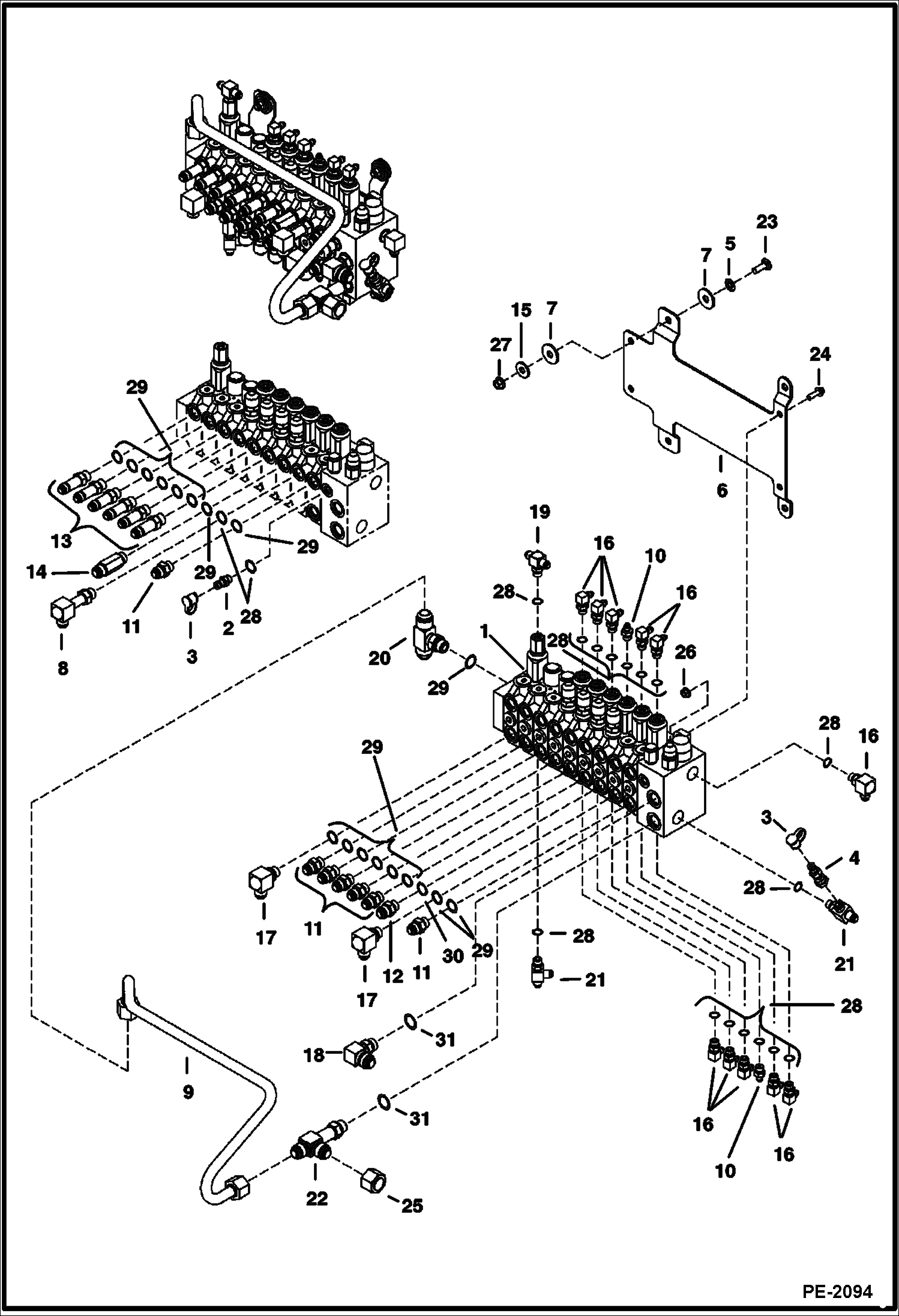

Запчасти Bobcat 337 HYDRAULIC VALVE (S/N 234611078 & Below, 234711100 & Below) HYDRAULIC SYSTEM

1

VALVE NLA - .875 in. press ports - Order 6685646 .750 in. press. ports - Was 6684899 - A

2

6630168

COUPLER W/Ref. 30

3

6630367

CAP dust

4

6661753

PLUG

5

6674264

RETAINER NUT

6

6806622

MOUNT

7

6806720

INSULATOR

8

6816235

FITTING W/Ref. 29

9

6817054

TUBELINE

10

15KB0406

FTG HYD S CONNECTOR W/Ref. 28

11

731794

CONNECTR W/Ref. 29 - Was 15KB00810B - B

12

15KB1010

FITTING, HYD CONNECTOR W/Ref. 30

13

7101028

CONNECTOR W/Ref. 29 - Was 16KB00810B - B

14

16KB1008

FITTING, HYD ELBOW W/Ref. 30

15

17EM100

WASHER

16

17KB0406

FITTING, HYD ELBOW W/Ref. 28

17

784568

ELBOW W/Ref. 29 - Was 17KB00810B - B

18

18KB1212

FITTING, HYD ELBOW W/Ref. 31

19

19KB0606

TEE W/Ref. 28

20

19KB1210

FITTING, HYD TEE W/Ref. 29

21

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 28

22

21KB1212

FITTING, HYD TEE W/Ref. 31

23

28CM1030

BOLT

24

29CM825

BOLT

25

36K8

CAP

26

43DM8

NUT

27

43DM10

NUT

28

79K6

O RING 10

29

79K10

O RING 10

30

79K8

O RING 10

31

79K12

O RING 10
