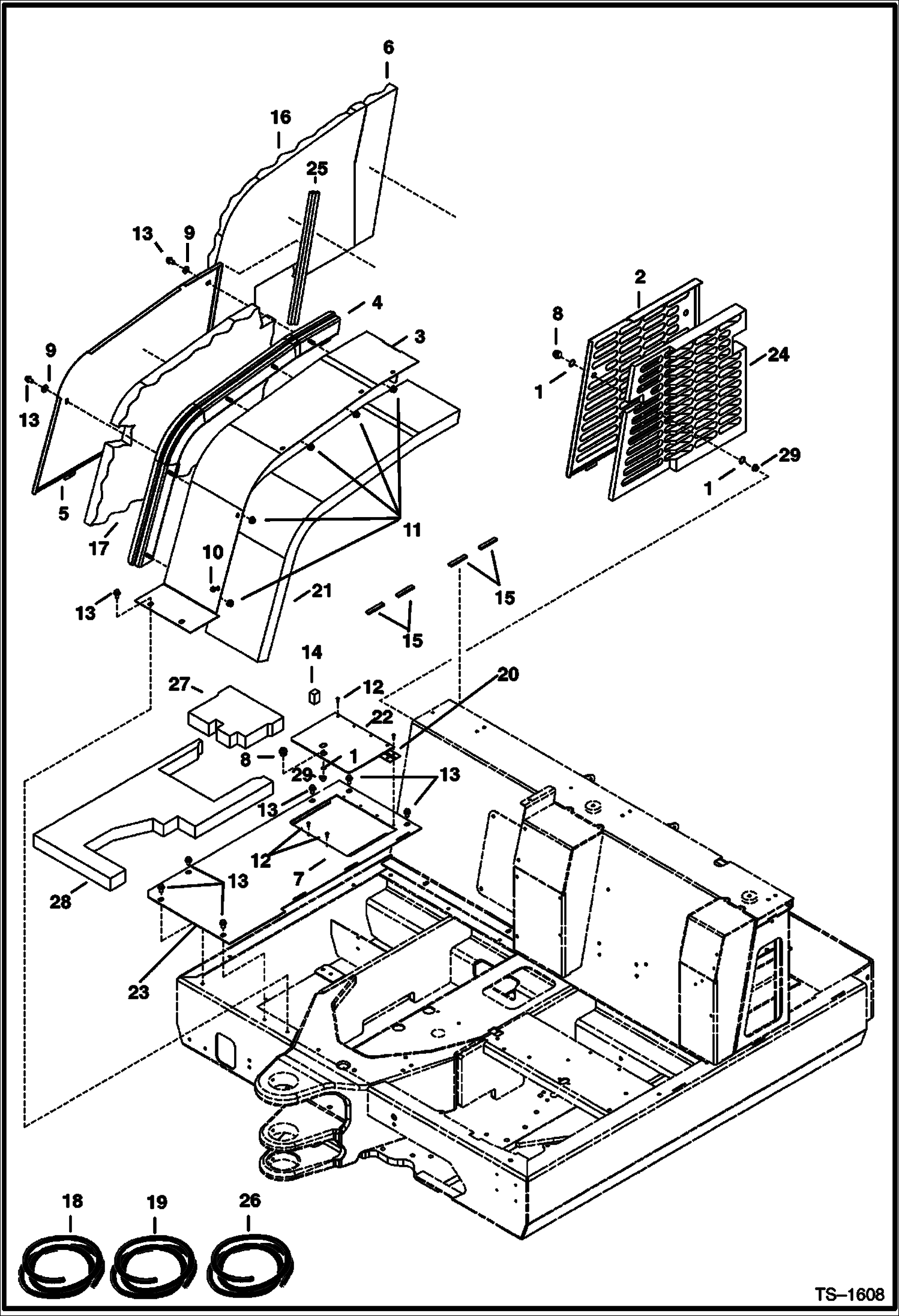

Запчасти Bobcat 337 RIGHT SIDE COVERS MAIN FRAME

1

6536802

WASHER

2

6804290

COVER R.H. - Was 6628679 - A

3

6800383

COVER

4

6800971

TUBE

5

6800232

PLATE Side Cover

6

6802885

INSULATION

7

6588132

BRACKET

8

6674389

LOCK ASSY Was 6661695 - A

8

6587458

KEY

9

6648414

WASHER Nylon

10

26GM8016

SCREW

11

43DM10

NUT Was 42DM00010B - A

12

6630207

RIVET 5 Use W/Ref. 7, 20 & 21

13

26GM10020

BOLT

14

FOAM NLA - 3'' (76mm) Long - Order Ref. 18

15

FOAM NLA - 3'' (76mm) Long - Order Ref. 19

16

6800461

INSULATION

17

6800462

INSULATION

18

6554274

INSULATION Bulk - Sold Per Foot

19

SEAL NLA - bulk - sold per foot - Was 6632217 - B

20

6802938

HINGE

21

6802996

INSULATION

22

6802920

COVER

23

6802921

PANEL

24

6804291

FOAM

25

SEAL NLA - 20'' (508mm) - Order Ref. 26

26

6664088

SEAL Bulk - Sold Per Foot

27

6804999

INSULATION

28

6805003

INSULATION

29

6675843

NUT
