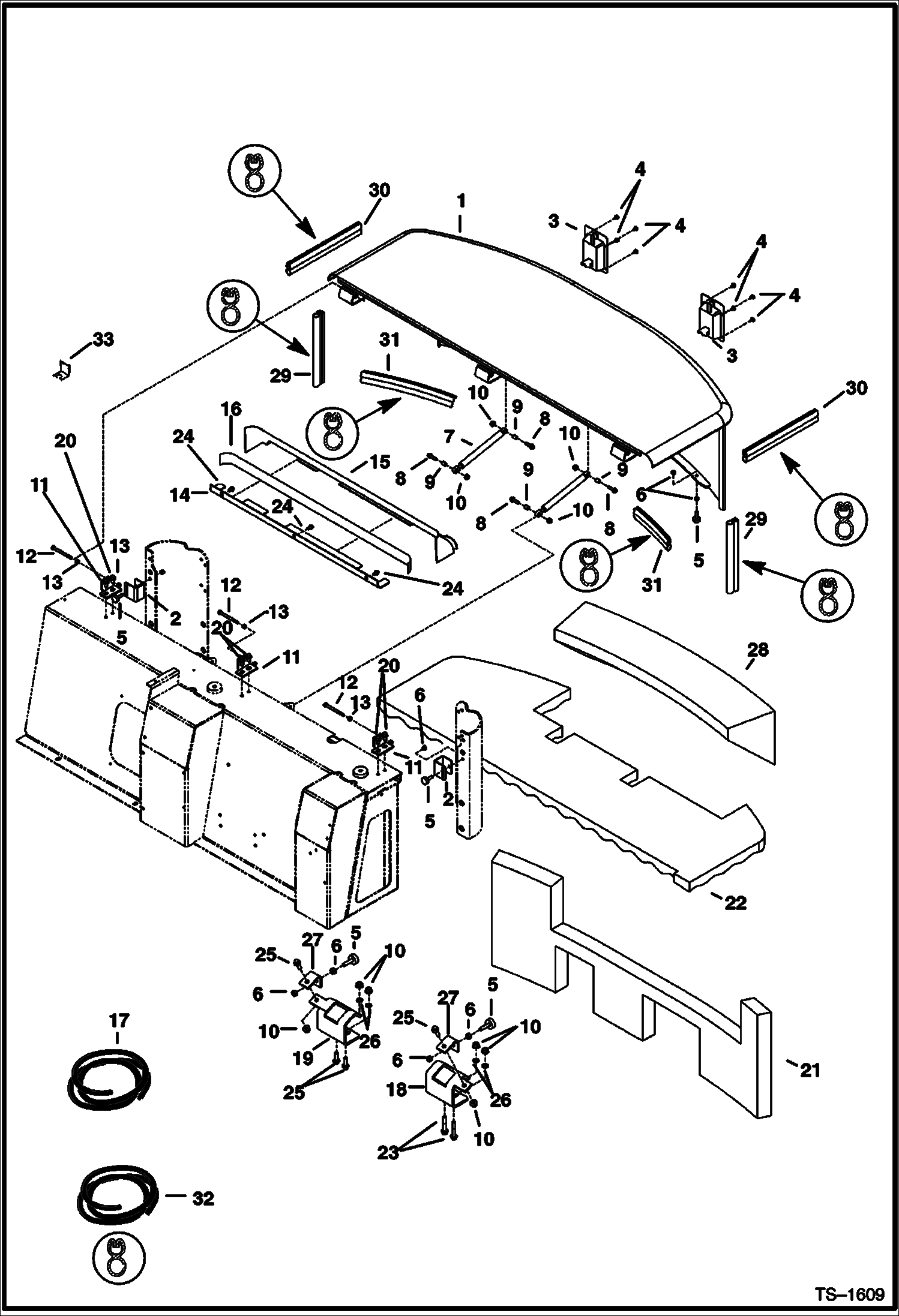

Запчасти Bobcat 337 ENGINE COVER & INSULATION MAIN FRAME

1

6628680

COVER Engine

2

6628686

BRACKET

3

6674239

LATCH, COVER ENG Was 6664447 - A

3

6587458

KEY

4

6589675

SCREW

5

6655399

BUMPER

6

61D5

NUT

7

6670729

CYLINDER Gas Spring

8

29CM830

CAPSCREW

9

6588293

BUSHING

10

43DM8

NUT Was 42DM -8 - D

11

6589033

ANGLE

12

1CM890

BOLT

13

1DM8

NUT

14

6588648

SUPPORT

15

6588070

COVER

16

TAPE NLA - Double backed-for attaching Ref.15 to the cab/canopy-48'' (1220mm) long - Order Ref. 17

17

6900669

TAPE Bulk-Sold Per Foot - Was 6665212 - A

18

6802500

BRACKET L.H. Latch

19

6802501

BRACKET R.H. Latch

20

26GM10020

BOLT

21

6628684

INSULATION

22

6628681

INSULATION

23

29CM845

BOLT

24

26GM8016

SCREW

25

29CM825

BOLT

26

10EM80

WASHER Lock

27

6804078

BRACKET Was 6588539 - A

28

6805011

INSULATION

29

SEAL NLA - 19'' (483mm) long - Order Ref. 32

30

SEAL NLA - 21'' (533mm) long - Order Ref. 32

31

SEAL NLA - 59'' (1499mm) long-Order Ref. 32

32

6513152

SEAL bulk - sold per foot

33

6719766

STOP
