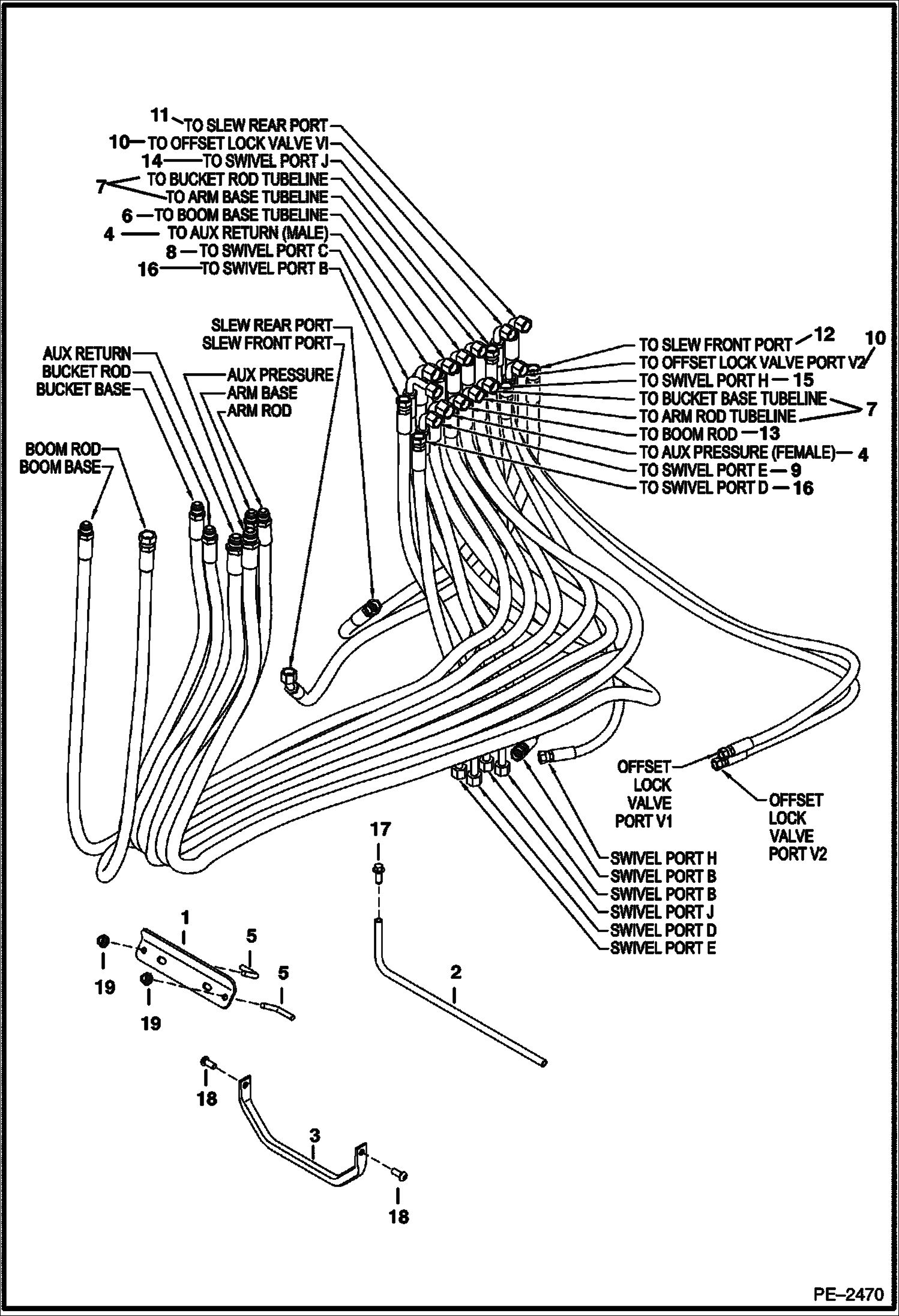

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Function Hoses) (S/N 234611164 & Above, 234711198 & Above) HYDRAULIC SYSTEM

1

6800919

STRAP

2

6807449

TUBE

3

6807451

SUPPORT

4

6807460

HOSE

5

6808211

BOLT angle

6

6818100

HOSE

7

6818101

HOSE

8

6818102

HOSE

9

6818103

HOSE

10

6818104

HOSE

11

6818105

HOSE

12

6818106

HOSE

13

7100466

HOSE

14

7105253

HOSE

15

7105254

HOSE

16

7105255

HOSE

17

26GM10030

BOLT

18

27CM1025

BOLT

19

51DM10

NUT
