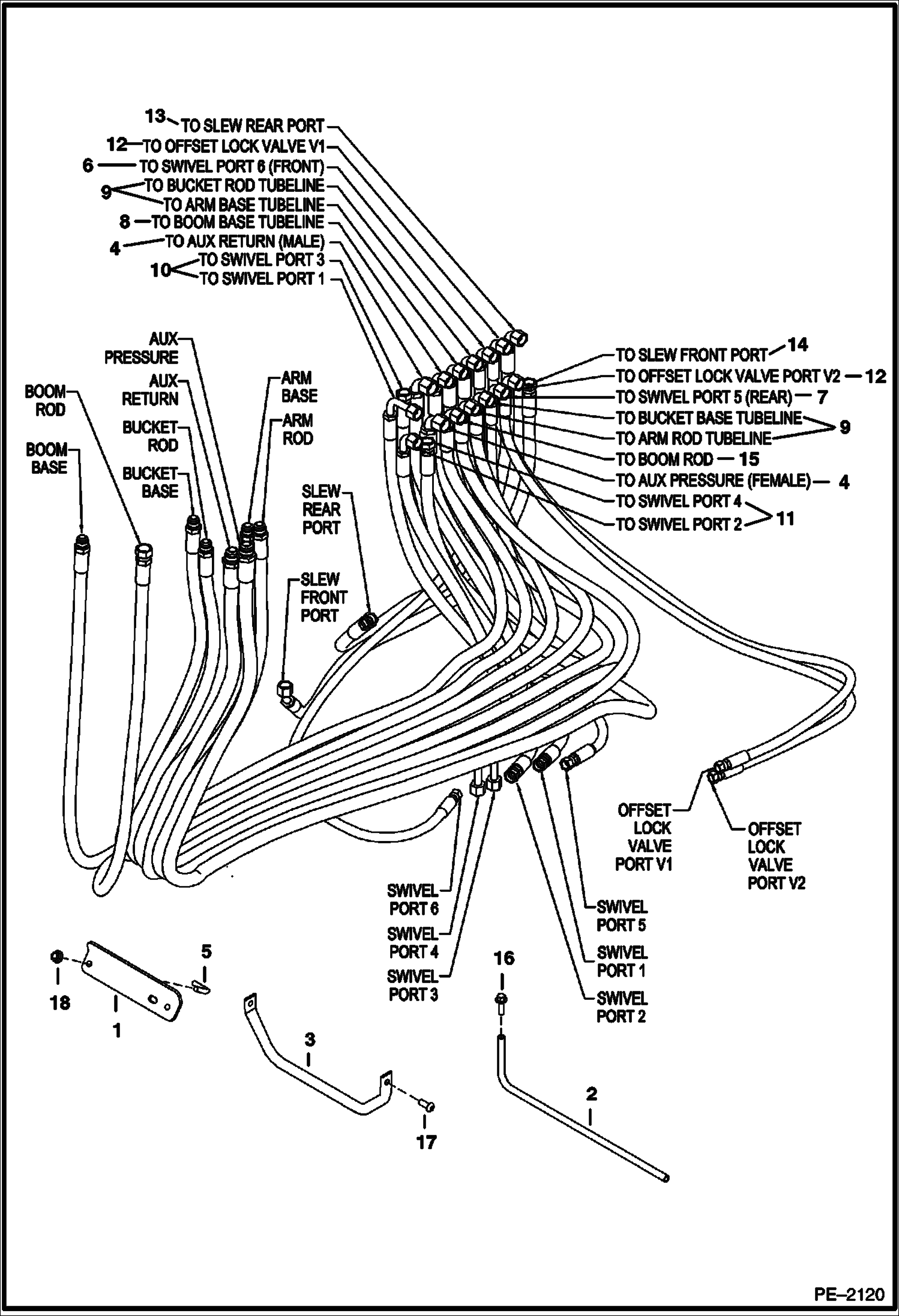

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Function Hoses) (S/N 234611163 & Below, 234711197 & Below) HYDRAULIC SYSTEM

1

6800919

STRAP

2

6807449

TUBE

3

6807451

SUPPORT

4

6807460

HOSE

5

6808211

BOLT angle

6

6816138

HOSE

7

6816139

HOSE

8

6818100

HOSE

9

6818101

HOSE

10

6818102

HOSE

11

6818103

HOSE

12

6818104

HOSE

13

6818105

HOSE

14

6818106

HOSE

15

7100466

HOSE

16

26GM10030

BOLT

17

27CM1025

BOLT

18

51DM10

NUT
